NA341TB3

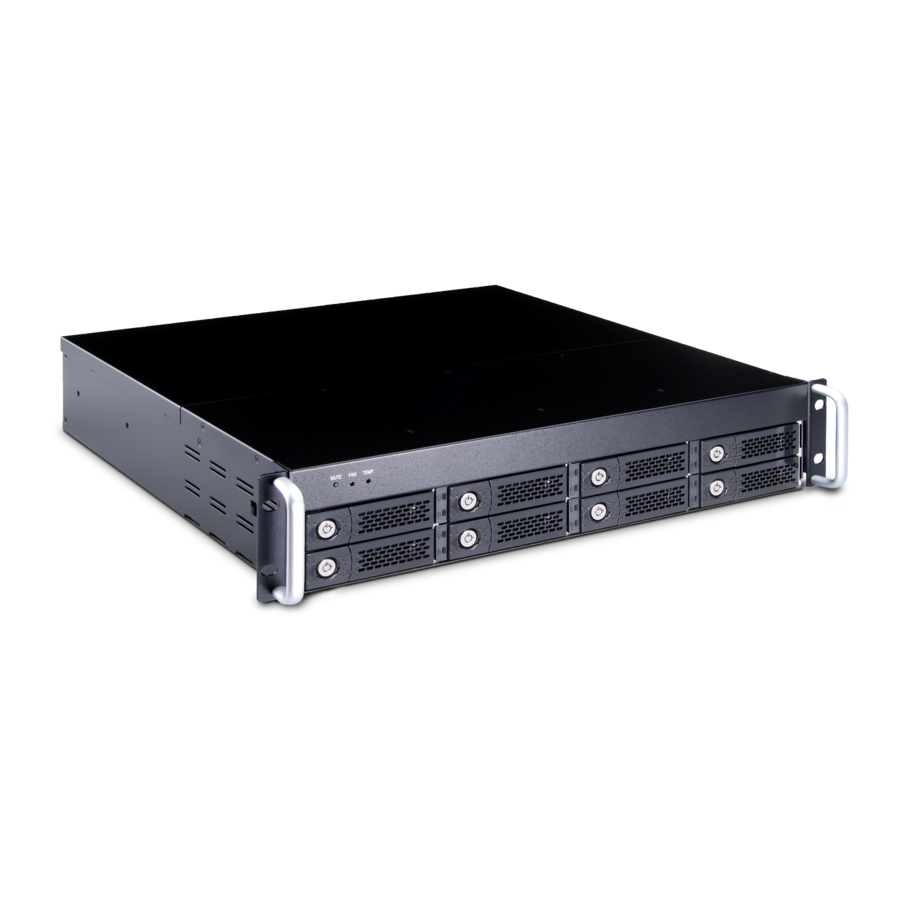

Rackmount 2U 8 bay ( 3.5"/ 2.5") Thunderbolt™ 3 RAID Storage
User Manual
Second edition, Mar. 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA341TB3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Netstor NA341TB3

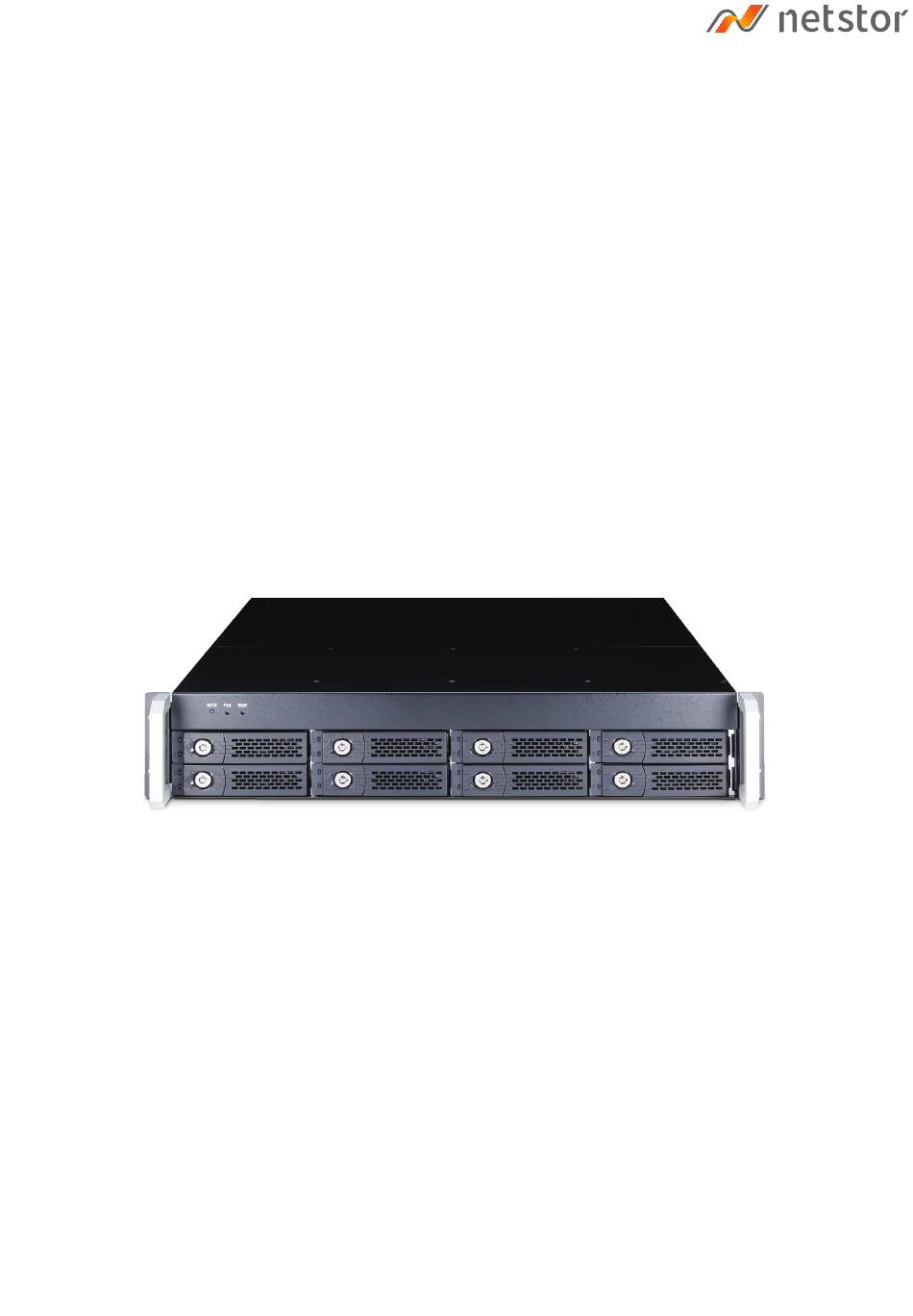

  • Page 1 NA341TB3 Rackmount 2U 8 bay ( 3.5"/ 2.5") Thunderbolt™ 3 RAID Storage User Manual Second edition, Mar. 2019...
  • Page 2: Table Of Contents

    1. Unpack the NA341TB3 2. Storage Enclosure Description 2.1 Panel Layout 2.2 Environmental Control Board LED Status 3. Setup Procedure 3.1 Storage Setup 3.2 Blower Fan Speed Adjustment 4. Power On/Off NA341TB3 5. Verification 5.1 macOS 5.2 Windows Operating System...
  • Page 3: Storage Enclosure Description

    1. Unpack the NA341TB3 The box contains the following items: 。Netstor NA341TB3 storage 。HDD tray × 8 (installed in enclosure) 。Thunderbolt 3 cable (2 meters) × 1 。Power cord × 1 。HDD mounting screws 。Key for HDD tray × 2 2.
  • Page 4 13. Thumbscrews to loosen / 12. Thunderbolt 3 Connectors tighten the top cover 。Connecting Thunderbolt 3 cables to host and downstream device 8. Hot-Swappable Blower Fan 1 7. PSU Power Switch 。75 × 75 × 28 mm 6. Power Cord Receptacle 9.
  • Page 5: Environmental Control Board Led Status

    2.2 Environmental Control Board LED Status D2 LED: fan failure indicator 。D2 LED no light: all cooling fans are normal 。D2 LED red light: one of the fans fails D4 LED: fan 1 status 。D4 LED no light: fan 1 is normal 。D4 LED red light: fan 1 fails D5 LED: fan 2 status D7 LED: fan 4 status...
  • Page 6: Setup Procedure

    3. Setup Procedure 3.1 Storage Setup 1. Place NA341TB3 storage on a level surface on a stable table. 2. Take out all the eight HDD trays. Go Top ↑...
  • Page 7 3. Place HDDs in the trays and fix them with the included hard drive mounting screws. And then put the trays with HDDs back to NA341TB3 storage. 4. Connect NA341TB3 and Thunderbolt 3 computer with Thunderbolt cable, and then connect Netstor storage with power source.
  • Page 8: Blower Fan Speed Adjustment

    3.2 Blower Fan Speed Adjustment 1. There are two hot-swappable 75×75×28 mm blower fans for ventilation at rear of NA341TB3. After loosening the two thumbscrews on the fan module, the blower fan can be pulled out of the storage enclosure.
  • Page 9: Power On/Off Na341Tb3

    4. Power On/Off NA341TB3 ※ If there is a PSU power switch on Netstor storage, remember to switch it to “I” position to enable the PSU first. 1. NA341TB3 storage is designed to be powered on/off simultaneously with the Thunderbolt 3 computer as NA341TB3 is connected to computer by Thunderbolt cable.
  • Page 10: Verification

    NA341TB3 appears in the information, it means Netstor storage is recognized correctly by computer. 2. Verify RAID controller of NA341TB3. Right after the above point 1, click PCI in the left column, and information about NA341TB3 RAID controller will appear. (For RAID controller, from starting up, it will take more time for its info to be shown) Go Top ↑...
  • Page 11 3. Verify the driver of NA341TB3 RAID controller. Following point 2, there is an item Driver Installed indicating the status of RAID controller’s driver. The driver is already embedded in macOS 10.12 and later. 4. Download MRAID GUI program to configure and set up RAID volume for NA341TB3.
  • Page 12 7. Input admin for name and 0000 for password to enter. 8. After logging in, for quick setup of RAID volume, click Quick Function in the left column, and select Quick Create. After RAID volume is created, a pane will pop up providing three selections for action.
  • Page 13: Windows Operating System

    5.2 Windows Operating System 1. Verify Netstor NA341TB3 is recognized by computer. Right click This PC, and select Manage. As window of Computer Management pops up, click Device Manager in the left column, click View at the top menu bar, and select Devices by connection.
  • Page 14 4. After installing the driver and the GUI program, launch the GUI program by selecting ArcHttpSrvGUI in All Programs in Windows Start to run the application. 5. Subsequent to running ArcHttpSrvGUI application, the web-based GUI will appear. Select SAS RAID Controllers, and then select Web Management to enter the web GUI 6.
  • Page 15 7. After logging in, for quick setup of RAID volume, click Quick Function in the left column, and select Quick Create. 8. After creating RAID volume, right click This PC, and select Manage. As window of Computer Management pops up, click Disk Management in the left column, and a window will pop up;...
  • Page 16 It is strongly recommended when under RAID initializing or rebuilding, the sleep mode be disabled temporarily for speeding up the process. While computer goes in sleep mode, the NA341TB3 will go into sleep as well for energy saving; when computer wakes up, the initializing or rebuilding will resume automatically.
  • Page 17: Thunderbolt 3 Card Leds Status

    LEDs lighting status will be before NA341TB3 is powered on and after the Netstor unit is powered on. Power-off: Before NA341TB3 is powered on, only LED 2 will show green light, and the rest LED 3 through LED 6 will not show light. green light not show light Go Top ↑...
  • Page 18 Power-on: After NA341TB3 is powered on, LED 2 through LED 5 will show green light. At this time, if a USB device or a monitor is daisy chained to the second Thunderbolt 3 port on the Netstor Thunderbolt 3 card, then LED 6 will show green light. On the other hand, provided the second Thunderbolt 3 port is not connected with any device/monitor, LED 6 will not show light.
