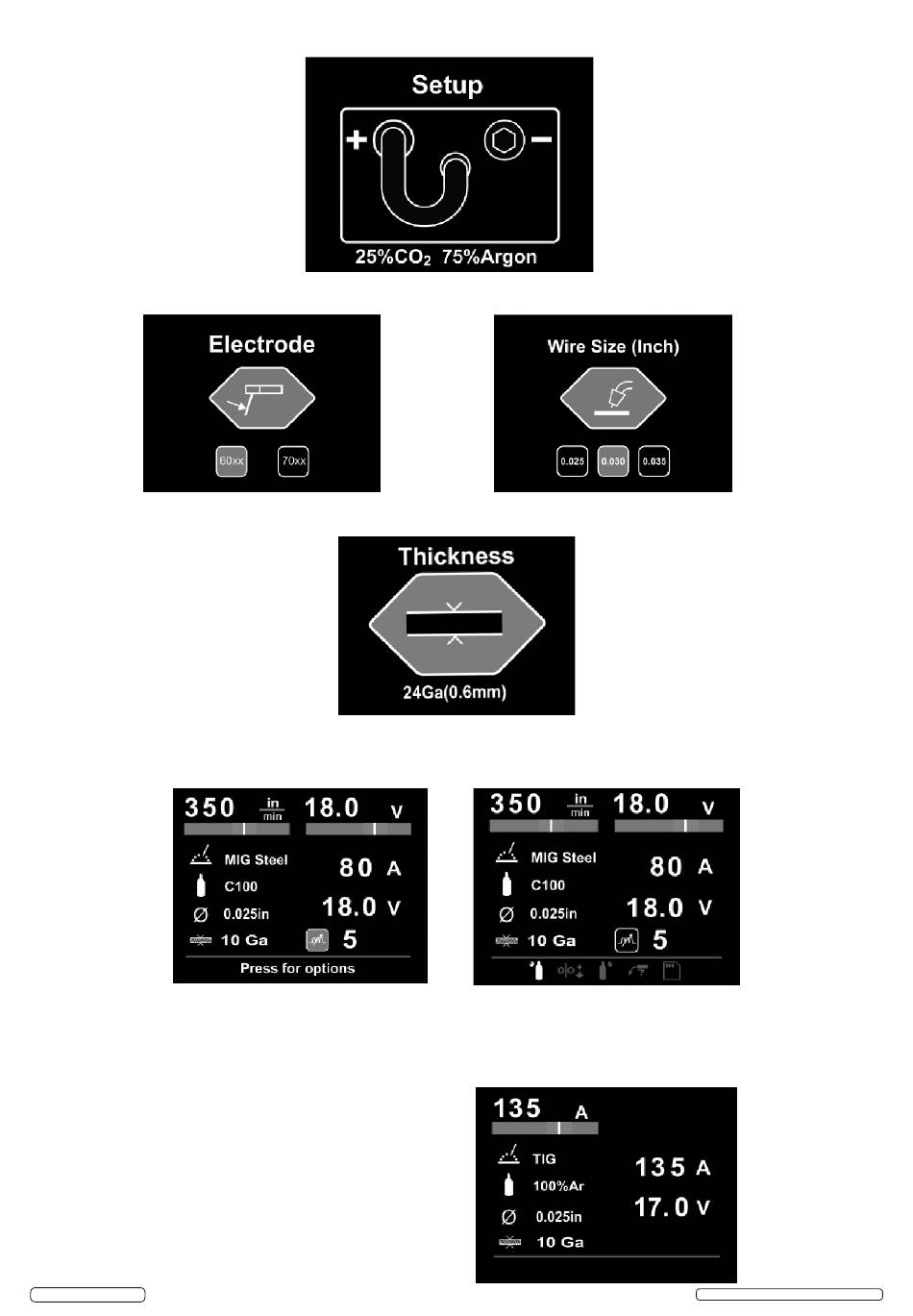

3.1.2. Output setup: Shows output connections and recommended gas mixture under different welding mode, press multi-function control to
confirm.
3.1.3. Electrode/ Wire diameter selection: Adjust multi-function control to select different electrode/wire diameter, press to confirm.
3.1.4. Material thickness: Adjust multi-function control to select different material thickness, press to confirm
Welding display: Shows all selected parameters.
3.1.5.
a) When MIG welding, wire speed and voltage can be set. Adjust Multi-function control to set electro-inductance, press the control to
progress basic parameter setting.
Note 1: Basic parameter setting including: gas pre flow, wire speed, gas post flow, trigger settings, load and save function.
Note2: The green range of current and voltage shows recommended parameters.
b) When TIG welding, user can set current parameter;
Trigger settings
Spot: gives one pulse of current: may be set from 0.5sec to 9.9 sec.
2 touch: current flows as long as the trigger is pressed.
4 touch: click and release to turn on, click and release to turn off.
Load and save
Up to four settings may be stored by entering the load and save
page and selecting 'save'. The settings can be recalled by re-visiting
the page.
