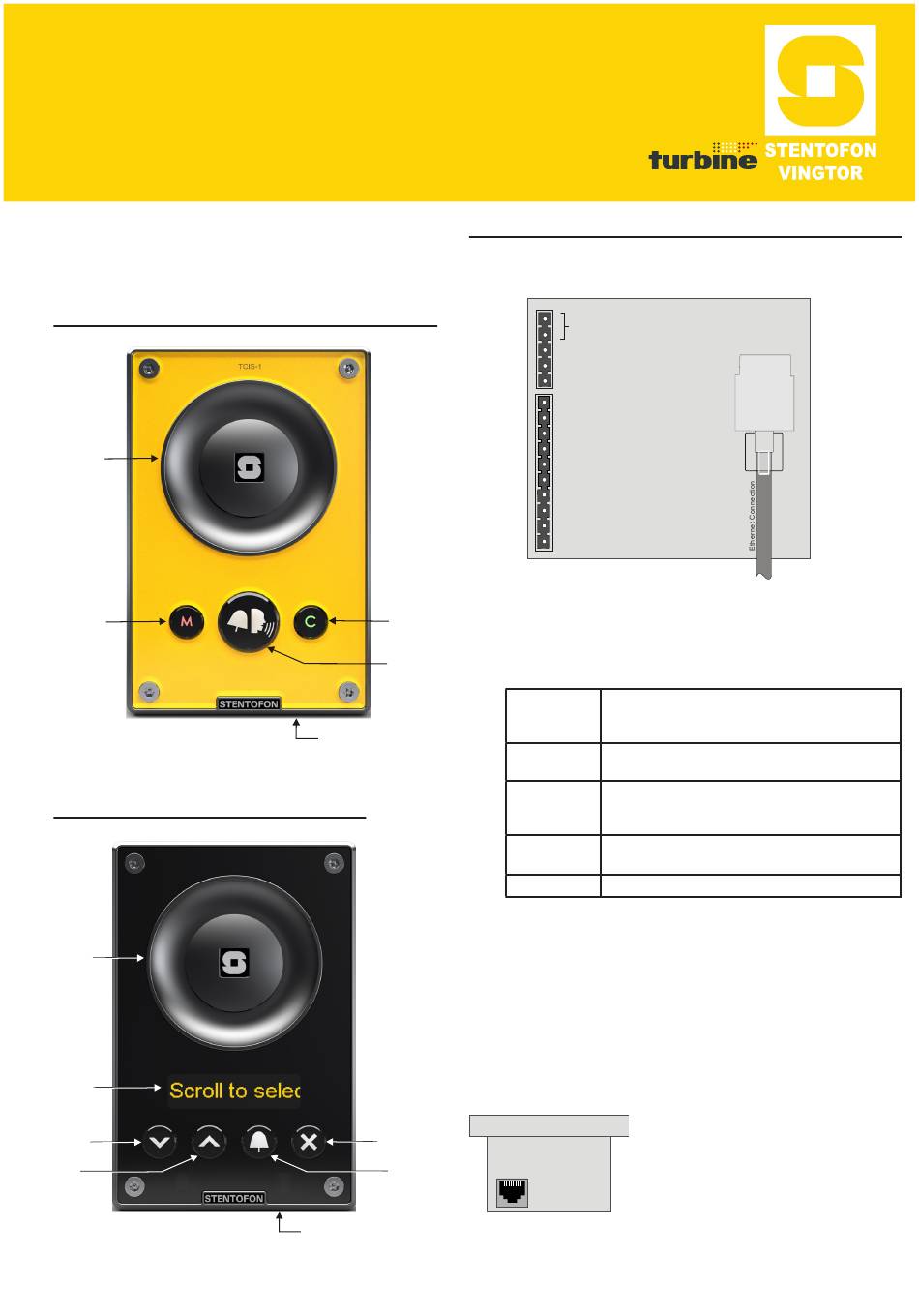

Stentofon Turbine Compact Series Getting Started

Turbine Compact IP Stations
Getting Started for AlphaCom
The information in this document pertains to the
Turbine Compact IP Stations TCIS-1/TCIS-1-V, TCIS-2,
TCIS-3, TCIS-4, TCIS-5, TCIS-6, TKIS-1.
Turbine TCIS-1/TCIS-1-V Station Keys & Functions
Loudspeaker
Manual Speech
Direction Control
Turbine TCIS-6 Station Keys & Functions
Loudspeaker
PMOLED
Display
Scroll Down
Scroll Up
1
1.1 External Connectors
Cancel
Call Button
Microphone

1.2 Power Supply

1.3 Network Connection
Cancel
Call Button
Microphone
Station Connections
1
24 VDC for external secondary power
if PoE is not used. Pin 1 is positive.
2
3
- COM relay
4
- NO relay
5
- NC relay
1
- 5.3V (LED driver)
2
- GND
3
- Input/Output 1
4
- Input/Output 2
5
- Input/Output 3
6
- Input/Output 4
7
- Input/Output 5
8 - Input/Output 6
9
- 600 ohm balanced line out +
10
- 600 ohm balanced line out -
The following table is an overview of the main
connectors involved when installing the Turbine IP
Stations.
Ethernet/Power 10/100 Mbps Ethernet RJ-45 port for LAN (uplink)
connection. Supports PoE (802.3af). Draws power from
either spare line or signal line.
Secondary 24 VDC (16 – 48 V) secondary power is provided from an
Power external adapter.
Relays There is one Double Throw relay contact with 60W
switching power. COM, NO, NC contacts are provided. Max:
250VAC/220VDC, 2A, 60W.
Input/Output 6 general purpose I/Os are available. Each I/O can be
configured as either button input or LED driver.
Audio Line Out A balanced 600 ohm audio line out with induction loop signal
The Turbine Station supports Power over Ethernet
(PoE, IEEE 802.3 a-f) where power can be drawn from
either the spare line or signal line.
If PoE is not available, the Turbine Station can be
connected to a 24 VDC local power supply.
There is one RJ-45 port located on
the Turbine station that is used as
the PoE/LAN port.
PoE port
RJ-45
PoE
port
