Blake Console Table
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
washer
bolt
x12
x6
x8
H
I
wedge
wheel
screw
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
D
E
small
locking
nut x6
screw
x32
J
K
L
felt pad
spring
x4
x4
washer
x8

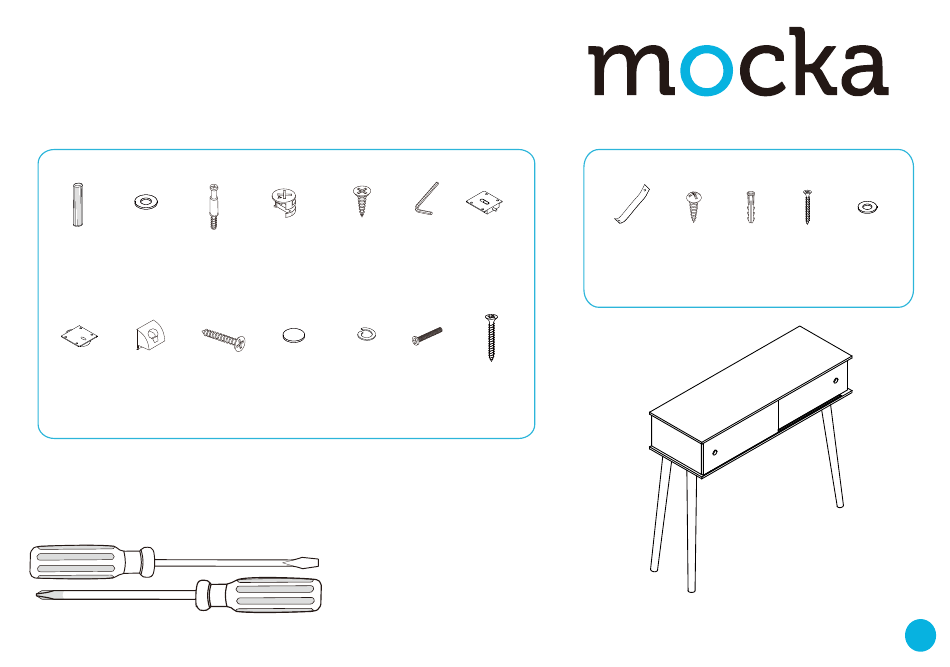

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
allen
wheel
key
x4
x1
M
N
screw
bolt
x6
x8
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
x2
screw
x1
1
