Honeywell S7014A Series Quick Start Manual

Excel IRC Excel 10

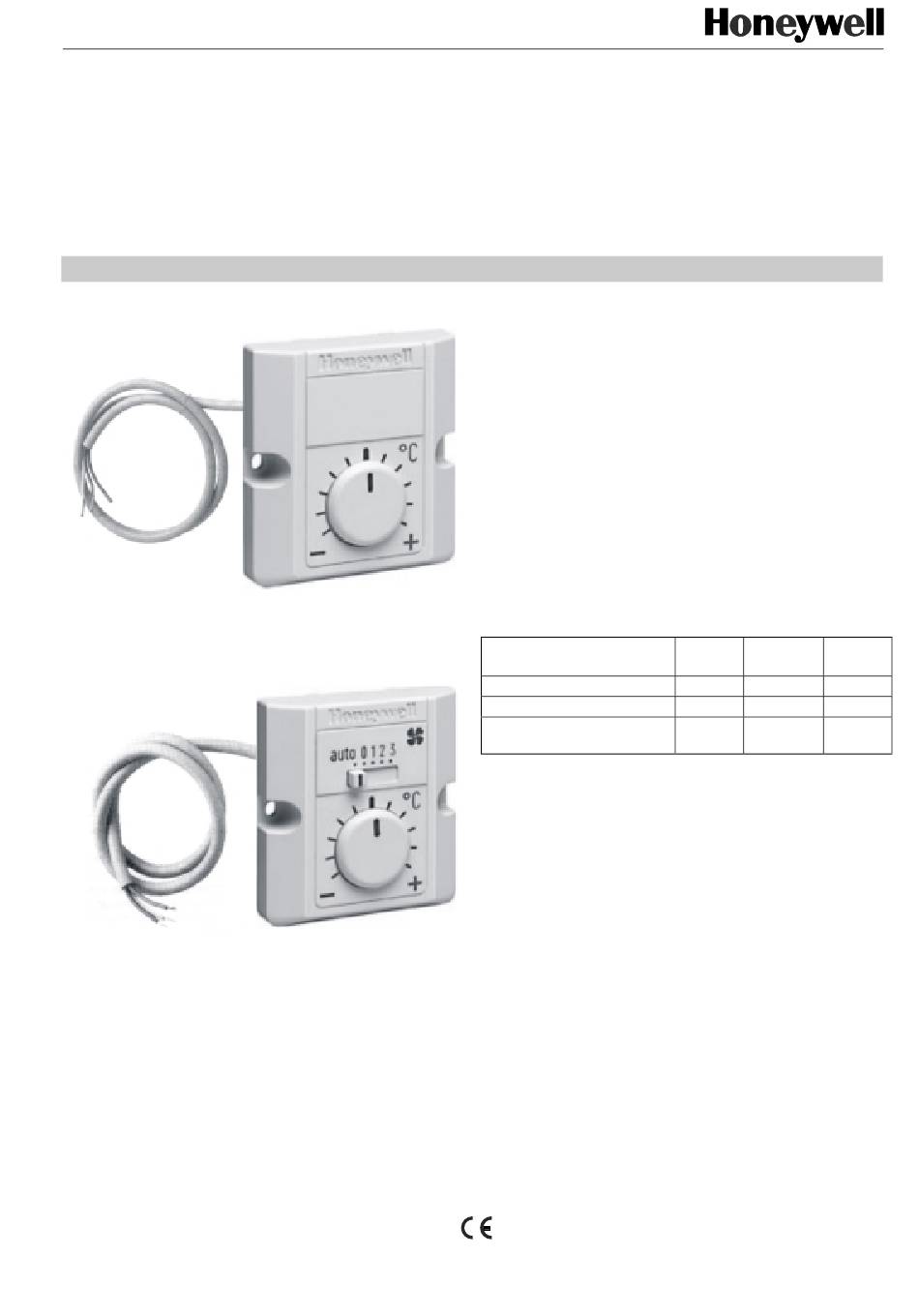

Fig. 1. Setpoint adjustment unit S7014A
Fig. 2. Setpoint adjustment unit S7014B,C
® U.S. Registered Trademark
Copyright © 2001 Honeywell Inc. • All rights reserved
SETPOINT ADJUSTMENT UNIT
GENERAL
The S7014A and B Setpoint Adjustment Units are designed
for unit mounting and are connected directly by a 2-meter-
long cable to the input of the Control Output Modules
R7452D,E,F.
The S7014A and B Setpoint Adjustment Units are used for
the manual adjustment of the room temperature setpoint. The
S7014B also allows the fan speed to be manually adjusted,
and is suitable for switching between automatic and manual
operation of a single-phase alternating current motors having
up to three speeds.
The S7014C has the same features as the S7014B, but the
resistance values are the same as those of the XL10/XL500
system.
MODELS
Function / Model no.
Remote setpoint adjustment
Fan speed control
Used in conjunction with
SPECIFICATIONS
Remote setpoint
adjustment -5...5 K
Fan speed control Auto / OFF / ON1 /ON2 / ON3
Dimensions (H x W x D) 70 x 75 x 18 mm
Weight 80 g
Case Plastic (ABS), flame-retardant as
per UL94-V0
Mounting Wall, surface, or recess mounting
Ambient operating limits 0...+50 °C, 5...95% RH
Ambient storage limits -25...+70 °C, 5...95% RH
Protection standards IP30 as per DIN 40 050 or IEC 144
Connections
S7014A unshielded cable, 2 m,
2 x 0.25 mm
S7014B unshielded cable, 2 m,
3 x 0.25 mm
S7014C unshielded cable, 2 m,
3 x 0.25 mm
S7014A,B,C
PRODUCT DATA
S7014A S7014B S7014C
1004 1000 1009
x x x
x x
XL10,
R7452D R7452E,F
XL500
2
2
2
EN0B-0356GE51 R1001
