Extractor Overview
The AD range provides extraction and filtration of the fume generated by laser
marking, cutting, etching or engraving. The units are of robust design and feature

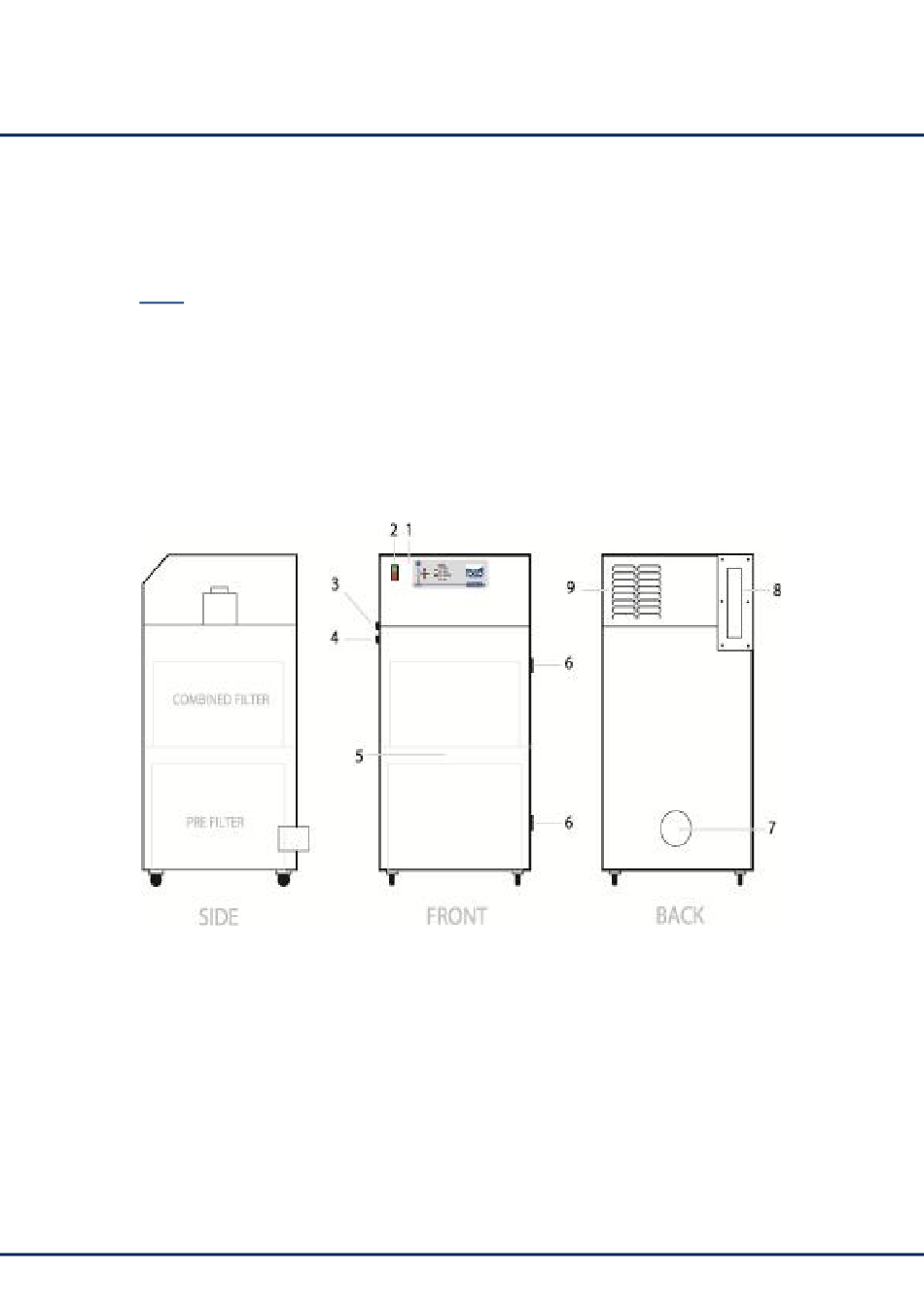

ease of use with minimal maintenance. The main components are shown in Fig. 5.
Fig. 5
1.
Unit / Filter Condition Display – Auto Flow Control
2.
On / Off Switch
3.
Power Cable
4.
Signal / Interface Cable to Laser
5.
Filter Housing Cam Latch
6.
Door Hinge
7.
Hose Inlet Connection
8.
Extracted Air Outlet
9.
Motor Cooling In/Out
7
Version 1 Oct 2009
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the AD ORACLE and is the answer not in the manual?
Questions and answers
BOFA AD Oracle.IQ
The BOFA AD Oracle iQ is a high-performance laser fume extraction system designed to remove harmful fumes during laser processes. It features the iQ Operating System, which offers real-time information, performance analytics, and enhanced safety. The unit includes a 12 m² pre-filter and 15 kg of activated carbon for effective filtration. It has a capacity of 380 m³/hr, uses a centrifugal fan, and operates at noise levels below 60 dB. The system is compact, measuring 980mm x 430mm x 430mm, and weighs 75 kg. It supports 115–230V single-phase power and is designed to minimize maintenance and operating costs.
