Proshade 966762 Assembly Instructions page 2

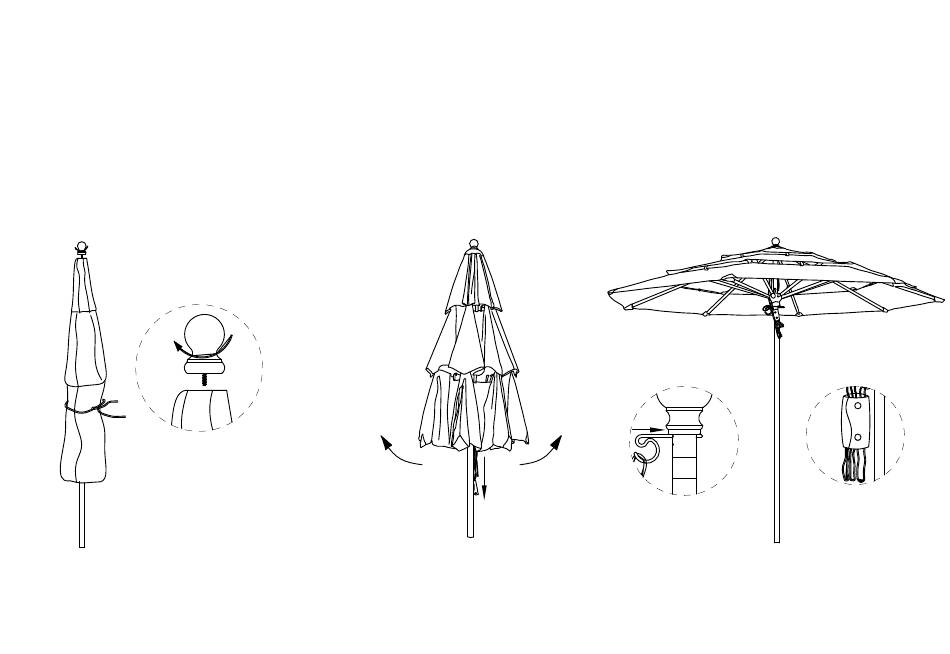

TO ASSEMBLE THE UMBRELLA
You must have your umbrella securely
fastened into a prepared umbrella base after
attaching the finial to the top of the umbrella.
Before opening your umbrella, gently pull
apart and separate the ribs into their natural
open position (see Fig 2).
A
A
( Fig. 2)
10/9/2014
TO OPEN THE UMBRELLA
Pull down the rope until you see the lower hole or upper hole on the tilt, then insert
the pin into the hole. At that time, the umbrella is fully open and ready to use.
( Fig. 3)
Page 2 of 4
A
B
A B
( Fig. 4)
