Proshade 2327772 Assembly Instructions Manual

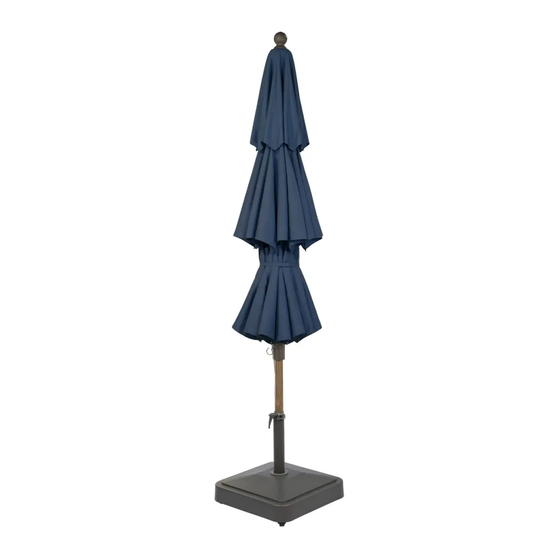

3.36M / 11FT COLLAR TILT ALUMINUM MARKET UMBRELLA
ITM. / ART. 2327772, 2127635, 2127807, 2327742
ASSEMBLY INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE
REFERENCE: READ CAREFULLY
THIS ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY,
NOT FOR COMMERCIAL USE
For assistance with assembly, parts, or problem resolution please contact customer
service in US and Canada at 1-877-730-1583, 9:00AM - 5:00PM EST, Monday - Friday,
English, French, and Spanish spoken or visit proshade.com.
R
C
A B
CAUTION:
The umbrella should be lowered and secured in windy
conditions or when not in use.
Do not leave open flame or heat sources unattended
underneath the umbrella.
Do not allow children to remain unattended near the cords that
raise the umbrella.
Secure the cords that raise the umbrella to underneath of the
umbrella (see fig.4 page 3) in order to prevent fire
hazard and/or to strangulation hazard.
Important Information
:
Umbrella ribs may compress during shipping. Before opening
your umbrella, gently pull apart and separate the ribs into their
natural open position to make sure the rib ends not twined with
air-vent connectors.
No. QTY
DESCRIPTION
A F rame with canopy 1PC
Bottom pole
B 1PC
Finial
C
1PC
1
