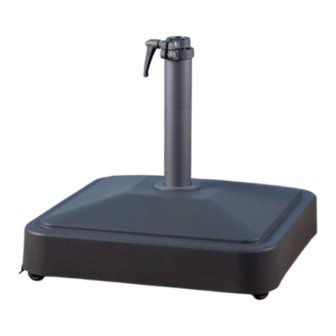

Umbrella Base with Wheels
ITM. / ART.
ASSEMBLY INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY
THIS ITEM IS INTENDED FOR OUTDOOR DOMESTIC USE ONLY,
NOT FOR COMMERCIAL USE
For easier assembly we recommend using
a power screwdriver to install the screws.
(Do not use an impact driver)
For assistance with assembly, parts, or problem resolution please contact customer
service in US and Canada at 1-877-730-1583, 9:00AM - 5:00PM EST, Monday - Friday,
English, French, and Spanish spoken or visit proshade.com.
R
2327658
CAUTION:
Before assembling the umbrella base, read this manual and follow
the safety instructions.
CARE INSTRUCTION:
Clean gently with environmentally - friendly soap solution and water
using a sponge. Do not use abrasive materials, wire brushes,
chemicals, cleansers or bleach. Do not use a pressure washer.
Rinse well. Allow to air dry.
SAFETY INSTRUCTIONS:
1. Do not use the umbrella base with wheels before filling it with weight.
2. The heavier the umbrella base, the more stable it will be.
3. Do not use in windy conditions. Never tilt your umbrella in windy
conditions. Always close and remove the umbrella from the base in
windy conditions.
4. Use the umbrella base with wheels on flat surfaces only. The locking
wheels are meant to keep the umbrella base with wheels locked in place
on flat surfaces. The locking wheels are not meant for locking the
umbrella base with wheels in place on sloped surfaces.
5. Keep the wheels locked except when moving your umbrella base with wheels.
The locking wheels may wear down over time making the brake
mechanism less effective. Check for wear and replace the locking
wheels when necessary.
6. Do not move, lock, or unlock the umbrella base with wheels with bare feet.
7. The umbrella base with wheels is not designed to roll in sand or grass ground.
Submerging the wheels in sand or grass will clog the ball bearings.
8. Do not allow children to play with or operate the umbrella base with wheels.
1
