Summary of Contents for Hartke XL Series

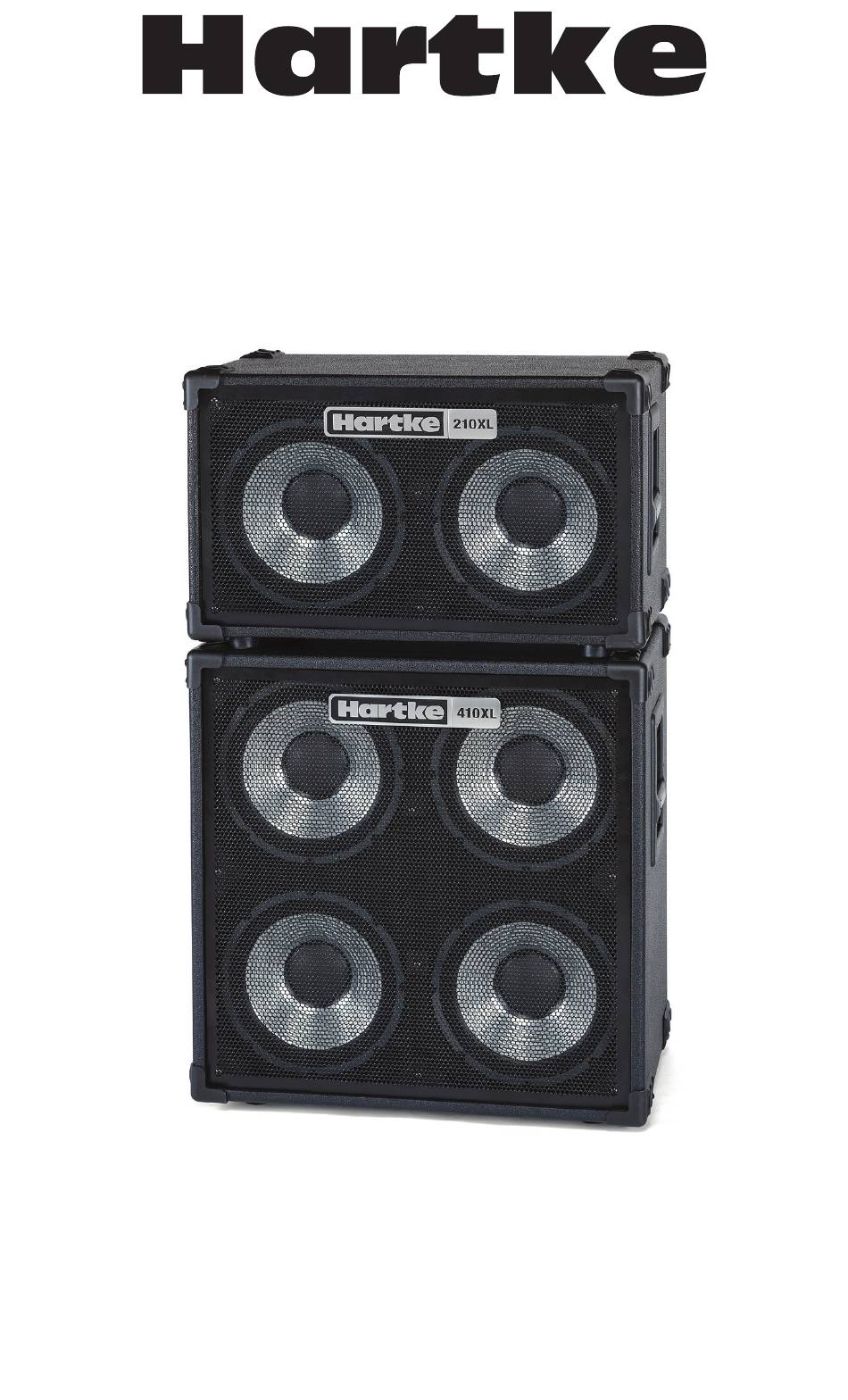

- Page 1 XL Series Bass Cabinets Owner's Manual...
- Page 2 By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. Hartke ©2019, V1 278-B Duffy Ave Hicksville, New York 117801 Phone: 1-800-372-6766 www.hartke.com...
- Page 3 RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your Hartke XL V2 bass enclosure was purchased outside of the United States, contact your local distributor.
- Page 4 Features 210XL V2 • 200 watt RMS, 8Ω • 2 x 10” heavy-duty, proprietary aluminum cones with 1.5” Kapton formers ® • 50Hz–5kHz frequency response • 3/4” Plywood construction • Single-chamber, sealed • Perforated steel speaker grille • One recessed handle and eight protective corners •...
- Page 5 Connecting the XL Cabinet Hartke XL V2 cabinets feature two 1/4” connectors wired in parallel. Each connector can be used as an input from an amplifier or as a pass through to an additional speaker cabinet. Connect the amplifier output to the speaker input on the XL rear jack plate.
- Page 6 Hartke XL speaker cabinet input jacks are parallel connections. The formula to calculate the total impedance of a parallel speaker system is: 1/Rt = 1/R1 + 1/R2 + 1/R3 + …...
-
Page 7: Specifications
2 x inset handles, 8 x protective corners Weight 79lb / 36kg Dimensions 25” x 24.5” x 15” 635mm x 623mm x 389mm At Hartke, we are continually improving our products, therefore specifications and images are subject to change without notice. XL V2 Series Cabinets... - Page 8 Follow us: @hartkesystems @hartke @hartkesystems Hartke 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-372-6766 www.hartke.com...
