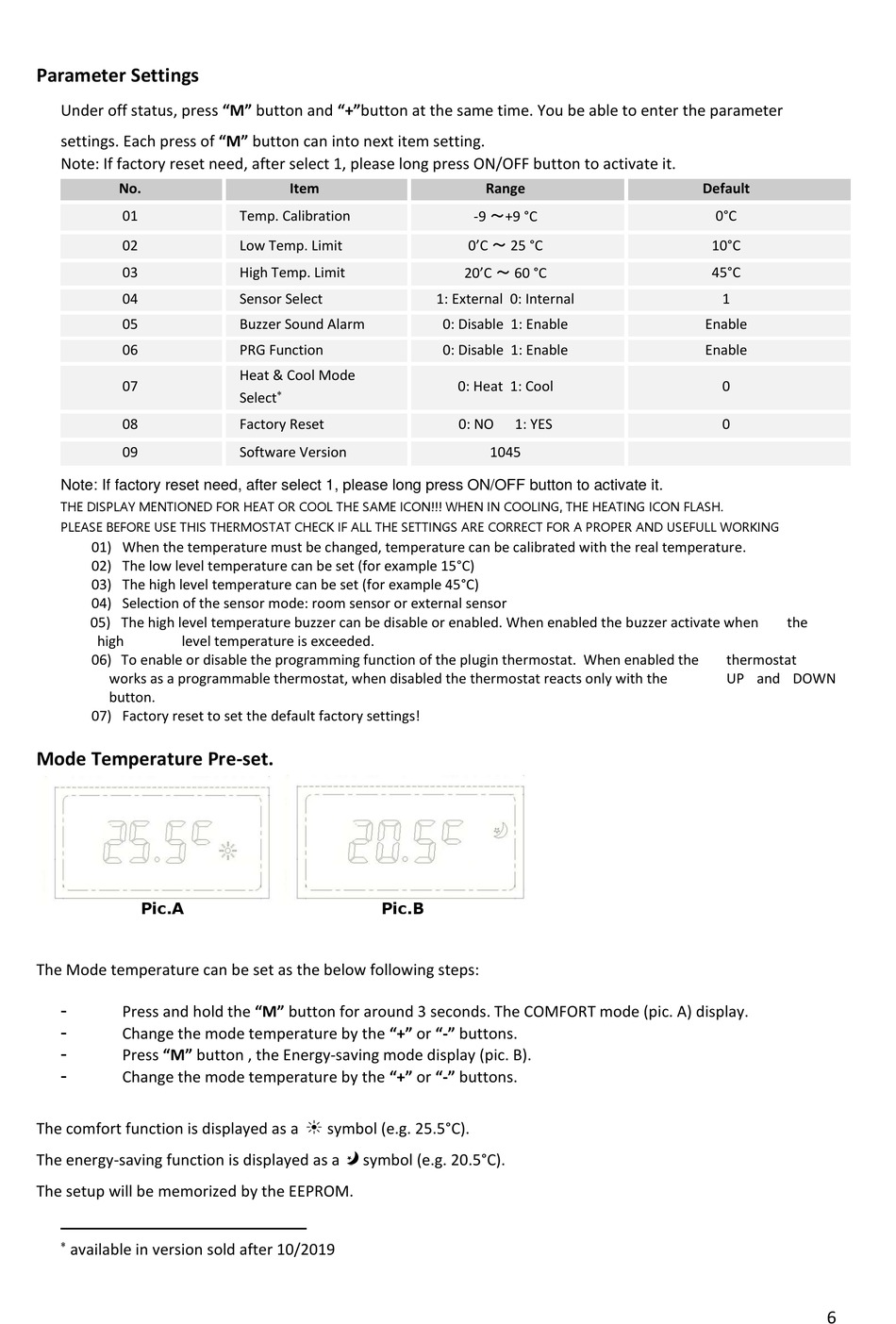

Parameter Settings

Under off status, press "M" button and "+"button at the same time. You be able to enter the parameter
settings. Each press of "M" button can into next item setting.
Note: If factory reset need, after select 1, please long press ON/OFF button to activate it.
No.
01
02
03
04
05
06
07
08
09
Note: If factory reset need, after select 1, please long press ON/OFF button to activate it.
THE DISPLAY MENTIONED FOR HEAT OR COOL THE SAME ICON!!! WHEN IN COOLING, THE HEATING ICON FLASH.
PLEASE BEFORE USE THIS THERMOSTAT CHECK IF ALL THE SETTINGS ARE CORRECT FOR A PROPER AND USEFULL WORKING
01) When the temperature must be changed, temperature can be calibrated with the real temperature.
02) The low level temperature can be set (for example 15°C)
03) The high level temperature can be set (for example 45°C)
04) Selection of the sensor mode: room sensor or external sensor
05) The high level temperature buzzer can be disable or enabled. When enabled the buzzer activate when
high level temperature is exceeded.
06) To enable or disable the programming function of the plugin thermostat. When enabled the
works as a programmable thermostat, when disabled the thermostat reacts only with the
button.
07) Factory reset to set the default factory settings!
Mode Temperature Pre-set.
Pic.A
The Mode temperature can be set as the below following steps:
-
Press and hold the "M" button for around 3 seconds. The COMFORT mode (pic. A) display.
-
Change the mode temperature by the "+" or "-" buttons.
-
Press "M" button , the Energy-saving mode display (pic. B).
-
Change the mode temperature by the "+" or "-" buttons.
The comfort function is displayed as a
The energy-saving function is displayed as a
The setup will be memorized by the EEPROM.

available in version sold after 10/2019
Item
Temp. Calibration
Low Temp. Limit
High Temp. Limit
Sensor Select
Buzzer Sound Alarm
PRG Function
Heat & Cool Mode

Select
Factory Reset
Software Version
Pic.B
symbol (e.g. 25.5°C).
symbol (e.g. 20.5°C).
Range
-9 ～+9 °C
0'C ～ 25 °C
20'C ～ 60 °C
1: External 0: Internal
0: Disable 1: Enable
0: Disable 1: Enable
0: Heat 1: Cool
0: NO 1: YES
1045
Default
0°C
10°C
45°C
1
Enable
Enable
0
0
the
thermostat
UP and DOWN
