Summary of Contents for Dea NET24N

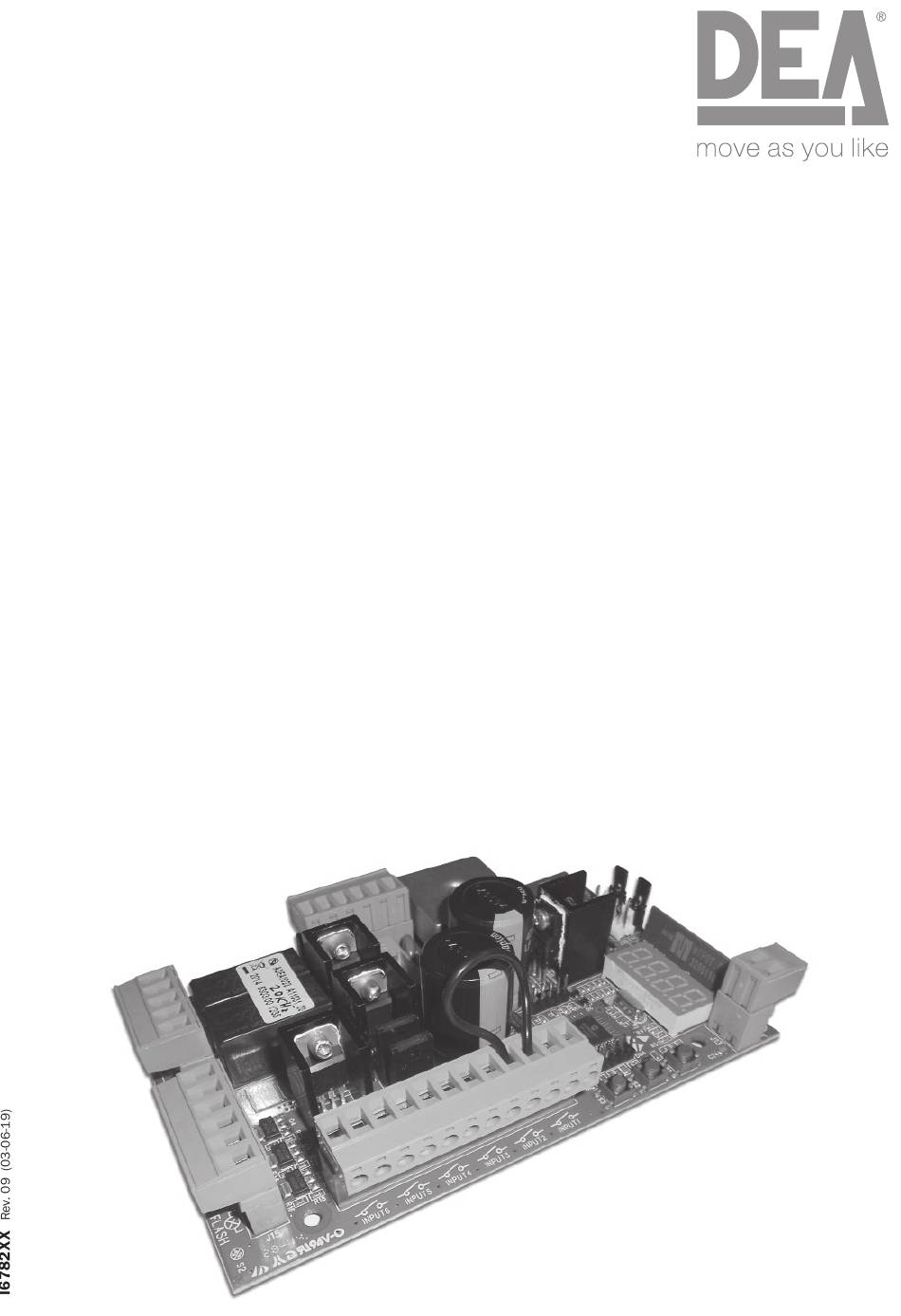

  • Page 1 NET24N...

  • Page 2: Warnings Summary

    WARNING Product use in abnormal conditions not foreseen by the manufacturer may generate hazardous situations; meet the conditions indicated in these instructions. WARNING DEA System reminds all users that the selection, positioning and installa- tion of all materials and devices which make up the complete automation system, must comply with the European Directives 2006/42/CE (Machinery Directive), 2014/53/UE (RED Directive).
  • Page 3 WARNING Using spare parts not indicated by DEA System and/or incorrect re-assem- bly can create risk to people, animals and property and also damage the product. For this reason, always use only the parts indicated by DEA System and scrupulously follow all assembly instructions.

  • Page 4: Product Description

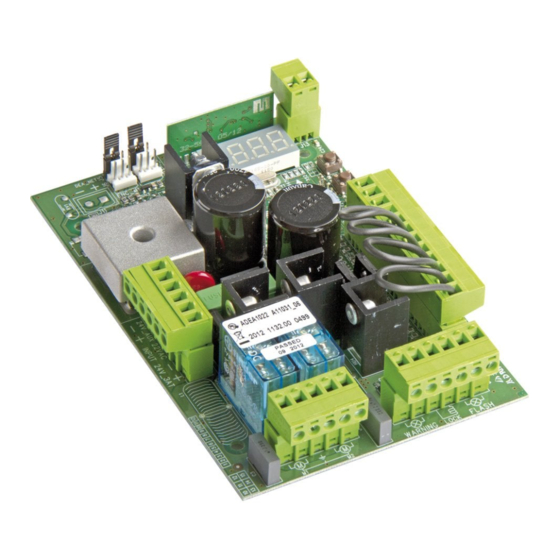

    2 PRODUCT DESCRIPTION NET24N is a universal control panel for DEA System 1 or 2 24V operators automations with or without encoder. The main feature of this control board is its ease of confi guration of inputs and outputs according to any needs thus ensuring adaptability to any type of automation.

  • Page 5: Swing Gates

    4 CONFIGURATION OF THE CONTROL PANEL The universal control unit NET24N can be used for the management of the following types ( ) of closures motorized by DEA Sy- stem: swing and sliding gates, overhead doors and barriers. In order to ensure maximum adaptability to each of closure, the control board provides an initial procedure, performed only at the fi...

  • Page 6: Electrical Connections

    5 ELECTRICAL CONNECTIONS Execute the wiring following the directions of table 1 and diagrams. WARNING For adequate electrical safety, keep low safety voltage wires (controls, electro-locks, antenna, auxiliary power) clearly separate from 230V ~ power wires (minimum 4 mm in air or 1 mm via supplementary insulation) placing them in plastic raceways and securing them with adequate clamps near terminal boards.
  • Page 7 Basic scheme NET24N DISPLAY DISPLAY ENC_M1 ENC_M2 CON 1 NET-EXP IN_1 CON 2 NET-NODE / MEMONET IN_2 IN_3 IN_4 IN_5 Serial N° 000X XXXXXX IN_6 10 11 12 13 WARNING LOCK FLASH MOT 1 MOT 2 EN-6...
  • Page 8 OPEN GATE WARNING LIGHT 24V 15W N.O. N.C. BLUE EN-7...
  • Page 9 N.O. N.C. OPEN GATE WARNING LIGHT 24V 15w ELECTRIC-LOCK art.110 N.O. N.C. BLUE BLUE WHITE WHITE GREEN GREEN BROWN BROWN EN-8...
  • Page 10 N.O. N.C. BLUE BLUE COURTESY LIGHT COURTESY LIGHT BLUE BLUE BROWN BROWN GREEN GREEN WHITE WHITE EN-9...
  • Page 11 OPEN GATE WARNING LIGHT 24V 15W ELECTRO-MAGNET N.O. N.C. BLUE EN-10...

  • Page 12: Standard Programming

    6 STANDARD PROGRAMMING 1 Power Supply When turned on, “ ”, “ ” (or the current fi rmware version) “ ”, “ ” (or the selected Type) appear on the display in sequence followed by the closed gate symbol “- - - - ”. If the control panel has already been programmed and the power fails or is switched off - once power is returned and a START command is given, the position reset procedure is performed (see “rESP”...
  • Page 13 • 003 Livi 500 - 502 - 550PL - Angolo Warning: If you are using non DEA System operators, set the parame- ter on the closer value for family type and performances (refer to table on page EN-3). 4. Confi rm your choice by pressing the key (display returns again to P028).
  • Page 14 7 How to adjust the limit switche 1. Scroll down the parameters untill you visualize P001; 2. confi rm by pressing the key; 3. by pressing (OPEN) and (CLOSE), move the leaf in the opening position and adjust the limit switch cam so that it pushes the microswitch in that point;...

  • Page 15: Adjustment Of Operating Parameters

    9.2 Learning 1. Scroll down the parameters with keys until you visualise P005; 2. Confi rm by pressing on the key; 3. When the symbol “ ” appears, press on any key of the transmitter you want to memo- rize; 4.

  • Page 16: Advanced Programming

    7 ADVANCED PROGRAMMING Here are some added programming procedures relating to remotes memory management and advanced confi guration of the control inputs. 1 Deletion of memorized transmitters 1.1 Deletion of all transmitters 1. Scroll down the parameters until you visualize P004; 2.
  • Page 17 3 Locking-Unlocking access to programming By using a “dip-switch” remote (regardless of the type of remotes already memorized) it’s possible to lock-unlock access to the program- ming of the control panel to avoid tampering. The remote setting is the locking-unlocking code verifi ed by the control board. 3.1 Locking access to programming 1.

  • Page 18: Inputs Confi Guration

    4 Downloading/uploading data memory 4.1 Downloading data to an external memory unit (DOWNLOAD) 1. Scroll down the parameters with keys until you visualize P011; 2. Press the key, the display visualizes the word “ ” fl ashing; 3. Press the again and continue pressing it for 5 sec (if you release it before this period, the procedure is stopped);...

  • Page 19: Messages Shown On The Display

    8 MESSAGES SHOWN ON THE DISPLAY WORKING STATUS MESSAGES Mess. Description Gate is closed Gate is opened Opening under way Closing under way While in step-by-step mode, the control board awaits further instructions after a start command Stop input intervened or an obstacle is detected with limited inversion duration (P055 > 0 or P056 > 0) Board in BOOT-MODE: Indicates that the fi...

  • Page 20: Installation Test

    9 INSTALLATION TEST The testing operation is essential in order to verify the correct installation of the system. DEA System wants to summarize the proper testing of all the automation in 4 easy steps: ● Make sure that you comply strictly as described in paragraph 2 “WARNINGS SUMMARY”;...
  • Page 21 SETTABLE VALUES Positioning of operator 1 Positioning of operator 2 Memorization of the motors’ stroke Deletion of transmitters Transmitters memorizing Search and deletion of a transmitter Restoring the operating parameters Lock access to programming How to learn connected DE@NET devices (unused at the moment) Restoring the “I/O”...
  • Page 22 TYPE TYPE TYPE TYPE • 000: NONE (unused parameter) Allocation of CHANNEL 1 of remotes • 001: START (start) • 002: PEDESTRIAN (pedestrian) Allocation of CHANNEL 2 of remotes • 003: OPEN (separated open) • 004: CLOSED (separated close) • 005: Unused Allocation of CHANNEL 3 of remotes •...
  • Page 23 TYPE TYPE TYPE TYPE Ram blow function: if=0 “Ram blow” function deactivated; if=1 it pushes the motors closed for one second • 000: “ram blow” deactivated before each opening movement, so as to ease the releasing of any electric lock; if>1 it execute a periodic •...
  • Page 24 TYPE TYPE TYPE TYPE TYPE 00 - 01 - 03 ONLY: Adjustment of the closing stroke margin: it adjusts the duration of the last part of the stroke during which an obstacle is interpreted as a stroke, blocking the motor without performing the inversion.
  • Page 25 TYPE TYPE TYPE TYPE Delay on limit switch detection: the operation is stopped after 1,5 sec from limit switch detection. When • 000: “limit switch delay disabled during this delay a stop is detected, the operator is suddenly stopped • 001: “limit switch delay enabled •...
  • Page 26 Eseguire il fi ssaggio alla parete usando opportuni tasselli per viti Ø5 (non fornite); Fix the box on the wall with appro- priate bushings to anchor screws Ø5 (not included); Le fi xer au mur en utilisant des douilles à expansion pour vis adéqua- tes Ø5 (pas incluses);...
  • Page 27 VISTA DA “A” Fori da eseguire sul fondo della scatola con seghe a tazza Ø37 per l’inserimento dei fermatubi; VIEW FROM “A” Holes to be drilled on the bottom of the box with a hole saw Ø37 to introduce tube fastening; VUE DE “A” Trous à percer au fond du boîtier avec une scie-cloche Ø37 afi...
  • Page 28 NET24N/C ENC M2 MOT 1 MOT 2 ENC M1 10 11 12 13...
  • Page 29 BATCH DEA SYSTEM S.p.A. Via Della Tecnica, 6 - 36013 PIOVENE ROCCHETTE (VI) - ITALY tel: +39 0445 550789 - fax: +39 0445 550265 Internet: http:\\www.deasystem.com - E-mail: deasystem@deasystem.com...
