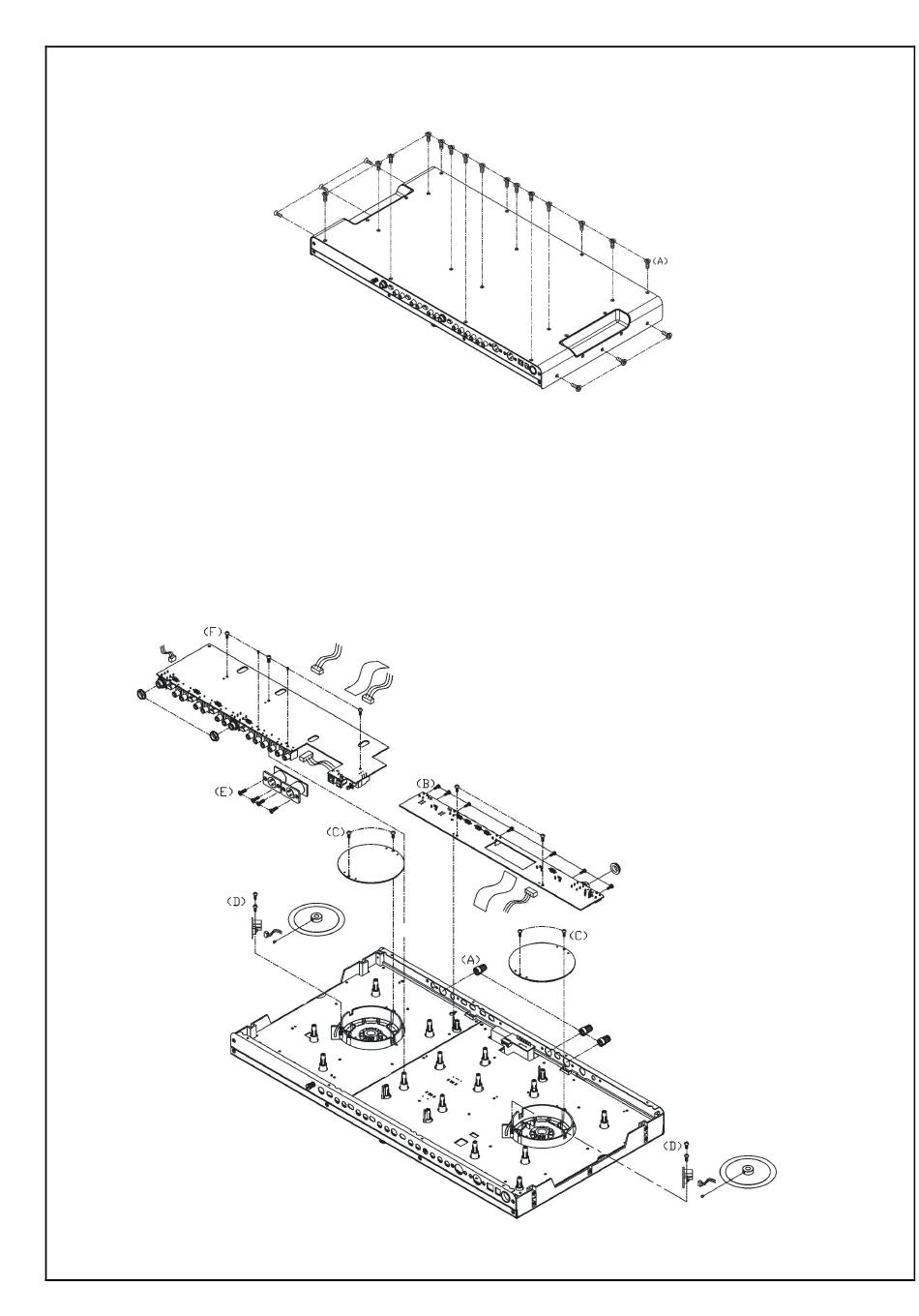

1. REMOVAL OF BOTTOM CHASSIS. (Fig1)
(A) TAKE OUT THE 21 PCS SCREWS FROM THE BOTTOM CHASSIS.
2.REMOVAL HEADPHONE PCB AND DOUSER ASSEMBLY AND XLR JACK ASSEMBLY. (Fig2)
(A) TAKE OUT THE 3 PCS KNOB.
(B) TAKE OUT THE 9 PCS SCREWS ， T AKE OUT THE 1 PC NUT HOLDER AND TAKE OUT THE 2 PCS
CONNECTORS.
(C) TAKE OUT THE 4 PCS SCREWS AND TAKE OUT THE 2 PCS PCB FROM THE CABINET.
(D) TAKE OUT THE 6 PCS SCREWS ， T AKE OUT THE 2 PCS CONNECTORS AND TAKE OUT THE 2 PCS
DOUSER ASSEMBLY.
(E) TAKE OUT THE 4 PCS SCREWS FROM THE XLR JACK ASSEMBLY.
(F) TAKE OUT THE 5 PCS SCREWS ， T AKE OUT THE 2 PCS NUT HOLDER AND TAKE OUT THE 2 PCS
CONNECTORS.FROM THE AN PCB.

DISASSEMBLY PROCEDURES

Fig.1
Fig.2
