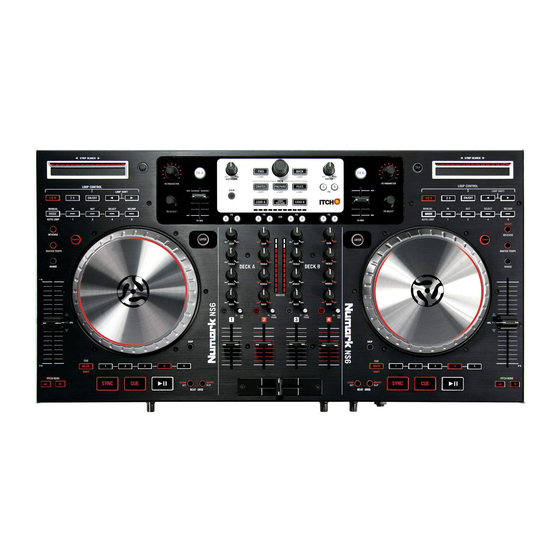

Numark NS6 Quick Start Manual

Using ns6 with native instruments traktor 2
Hide thumbs Also See for NS6:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Quick Start Manual
USING NS6 WITH
NATIVE INSTRUMENTS TRAKTOR 2

Advertisement

Table of Contents
loading

Related Manuals for Numark NS6

Summary of Contents for Numark NS6

  • Page 1 USING NS6 WITH NATIVE INSTRUMENTS TRAKTOR 2...
  • Page 3 SET UP TRAKTOR 2 WITH NS6 See the NS6 Quickstart Guide for instructions on setting up your NS6. Connect NS6 to your computer and open Traktor 2. Go to File Preferences. Click the Import button at the bottom of the window.
  • Page 4 For a suggested setup diagram, see the CONNECTION DIAGRAM in the NS6 Quickstart Guide. POWER IN – Use the included power cable to connect NS6 to a power outlet. While the power is switched off, plug the cable into NS6 first, then plug the cable into a power outlet.

  • Page 5: Useful Terms

    • Some controls function differently with Sample Decks than with Audio Decks in Traktor 2. • The controls are listed by the original NS6 name. If a control serves a different function in Traktor 2, it is noted in parentheses.

  • Page 6: Playback Controls

    PLAYBACK CONTROLS LAYER – Selects which software Deck is controlled by that hardware Deck. The left Deck can control software Deck A or C; the right Deck can control software Deck B or D. (When using Sample Decks, those Decks will be C and D.) PLATTER –...

  • Page 7: Loop Controls

    LOOP CONTROLS ON / OFF – Press this to turn a loop on or off. IN – Audio Decks (LOOP IN): In Manual Mode, press this to set a “Loop In” point where your loop will begin. In Autoloop Mode, press this to set a 1-beat loop. (See description of the MODE button for more information.) Sample Decks (SAMPLE DECK 1 SELECT): Press this to select or mute/unmute Sample Deck 1.
  • Page 8 TRACK CONTROLS STRIP SEARCH (FILTER STRIP) – When the BLEEP / REVERSE (FILTER STRIP ON/OFF) button is engaged (lit solid red), moving your finger across the STRIP SEARCH (FILTER STRIP) will sweep the filter. When the BLEEP / REVERSE (FILTER STRIP ON/OFF) button is disengaged (off), moving your finger across the STRIP SEARCH (FILTER STRIP) will set the filter's frequency.
  • Page 10 MANUAL VERSION 1.0...
