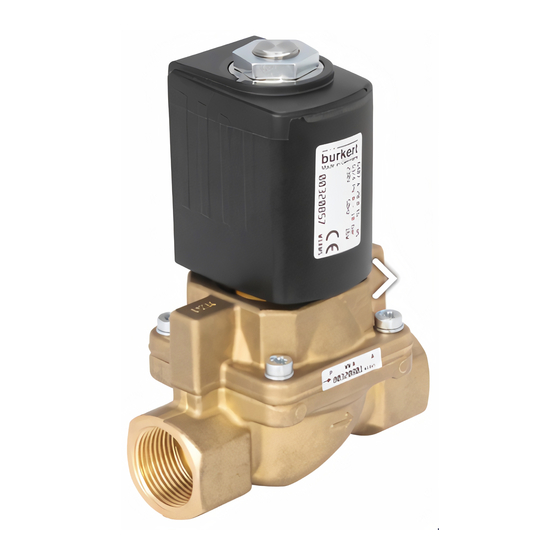

- Page 1 Type 5406 / DN 6, DN 13, DN 20 Safety shut-off device Sicherheitsabsperreinrichtung Dispositif d‘arrêt de sécurité TÜV certified according to DIN EN ISO 23553-1 TÜV-geprüft nach DIN EN ISO 23553-1 Contrôle TÜV selon DIN EN ISO 23553-1 Operating Instructions Bedienungsanleitung Manuel d‘utilisation...
-
Page 2: Table Of Contents
OPERATING INSTRUCTIONS Contents The operating instructions describe the entire life cycle of the device. Keep Operating Instructions ............... 2 these instructions in a location which is easily accessible to every user Symbols .................... 3 and make these instructions available to every new owner of the device. Authorized Use ................. -
Page 3: Symbols
CAUTION! ▶ The valve 5406 may be used exclusively in the flow of a firing plant. Warns of a possible danger! • The safety shut-off device is designed for heating oils DIN 51603 Part ▶... -
Page 4: Basic Safety Instructions
BASIC SAFETY INSTRUCTIONS WARNING! Risk of injury due to malfunction of valves with alternating current These safety instructions do not make allowance for any (AC). • contingencies and events which may arise during the installation, Sticking core causes coil to overheat, resulting in a malfunction. operation and maintenance of the devices. -
Page 5: Technical Data
TECHNICAL DATA The following values are indicated on the type label: General Hazardous Situations. • Ambient and medium temperature, voltage (tolerance To prevent injuries: ±10%), kind of current, pressure ▶ Ensure that the system cannot be activated unintentionally. If used in combination with a return flow valve connected electrically in series, the ▶... - Page 6 Housing material Seal material Orifice Certification mark Operating principle Type T med. Max. 160°C T Umg. -15°C bis 60°C 5406 NC 6,0 EF MS Reg.Nr. XXXXX G 1/4 P N 1 - 30 bar IP65 110-120V 50Hz 0036 00YYYYYYY XXXXXXX...
-
Page 7: Installation
INSTALLATION 6.2 Before Installation Installation position: Safety instructions Installation can be in any position. DANGER! Preferably: Drive at the top. → To ensure that the safety shut-off device functions reliably, check the Risk of injury from high pressure in the system! pipelines for dirt and clean if required. -
Page 8: Power Supply
6.3 Installation If the protective conductor contact between the coil and housing is → Clean pipelines. missing, there is danger of electrical shock! → Only use new seals. ▶ Always connect protective conductor. ▶ Check electrical continuity between coil and housing. →... -
Page 9: Maintenance And Repairs
MAINTENANCE AND REPAIRS Installation of coil Safety instructions WARNING! DANGER! Escaping medium! When a sticking nut is loosened, medium may escape. Risk of injury from high pressure in the equipment! ▶ Do not tighten sticking nut any further. ▶ Before loosening the lines and valves, turn off the pressure and Electric shock! vent the lines. -
Page 10: Malfunctions
MALFUNCTIONS If malfunctions occur, check whether: → the device has been installed according to the instructions (correct direction of installation), → the connection has been made properly, → the device is not damaged, → all screws have been tightened, → the voltage and pressure have been switched on, →... -
Page 11: Spare Parts
SPARE PARTS PACKAGING, TRANSPORT, STORAGE, DISPOSAL CAUTION! CAUTION! Risk of injury and/or damage by the use of incorrect parts! Incorrect accessories and unsuitable spare parts may cause injuries and Risk of injury due heavy devices! damage the device and the surrounding area. ▶... - Page 12 NOTE! Transport damages! Inadequately protected equipment may be damaged during transport. • During transportation protect the device against wet and dirt in shock-resistant packaging. • Avoid exceeding or dropping below the allowable storage temperature. Incorrect storage may damage the device. •...
- Page 13 Fax + 49 (0) 7940 - 10-91 448 E-mail: info@de.burkert.com International address www.burkert.com Manuals and data sheets on the Internet : www.burkert.com Bedienungsanleitungen und Datenblätter im Internet: www.buerkert.de Manuels d'utilisation et fiches techniques sur Internet: www.buerkert.fr © Bürkert Werke GmbH & Co. KG, 2017 Operating Instructions 1710/01_EU-ML_00805777 / Original DE www.burkert.com...
