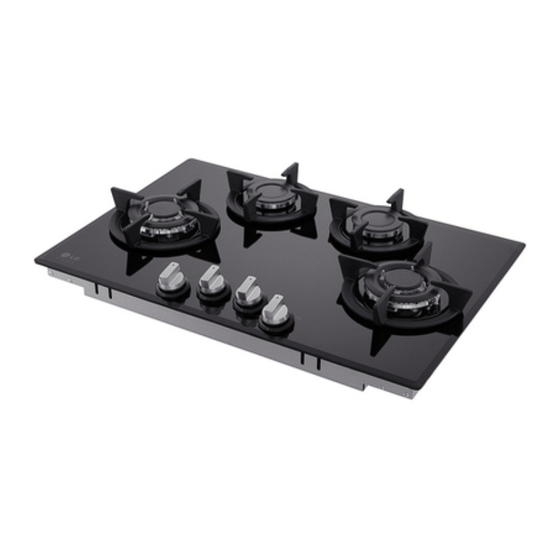

- Page 1 OWNER’S MANUAL GAS HOB Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. HJ747DAP www.lg.com Copyright © 2017 LG Electronics Inc. All Rights Reserved. MFL69731701_01...
- Page 2 PREFACE PREFACE Thank you for choosing our gas hob. To use this appliance correctly and prevent any potential risk, read these instructions before using the appliance. Keep these instructions in a place where you can find them easily. If you are unsure of any of the information contained in these instructions, please contact our customer care centre.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PRODUCT OVERVIEW Parts Accessories Wiring Diagram INSTALLATION Product Specifications Usage instructions Positioning Preparing for Installation Installing the appliance Gas connection Gas specification Electrical connection Gas adjustment LPG / Natural Gas Conversion Instructions OPERATION How to use the appliance Using a Wok... -
Page 4: Important Safety Instructions
Always contact your service agent or manufacturer about problems that you do not understand. Download this owner's manual at: http://www.lg.com This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death. - Page 5 IMPORTANT SAFETY INSTRUCTIONS INSTALLATION WARNING • This appliance shall be installed in accordance with regulations in force and only used in a well ventilated space. • Prior to installation, ensure that the gas and electrical supply complies with the type stated on the rating plate.
-
Page 6: Instructions
IMPORTANT SAFETY INSTRUCTIONS CHILD AND PEOPLE SAFETY WARNING Do not allow children to play near or with the appliance. The appliance gets hot when it is in use. Children should be kept away until it has cooled. CAUTION • This appliance is designed to be operated by adults. •... -
Page 7: Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION • This appliance is intended for domestic cooking only. It is not designed for commercial or industrial purposes. • Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or increasing the level of mechanical ventilation where present. •... -
Page 8: Product Overview
PRODUCT OVERVIEW PRODUCT OVERVIEW Parts Triple burner Rapid burner Trivet Burner control knob Top plate Accessories Bracket (4) Screw (4) Nozzle (4) Gasket (2) Bypass Nozzle (2) Nipple (1) Wok Trivet (2) Owner's Manual (1) -
Page 9: Wiring Diagram
PRODUCT OVERVIEW Wiring Diagram WARNING • Power must be disconnected before servicing this appliance. CAUTION • Label all wires prior to disconnection when servicing control wiring. Error in connection can cause improper and dangerous operation. Verify proper operation after servicing. -
Page 10: Installation
10 INSTALLATION INSTALLATION Product Specifications The appearance and specifications listed in this manual may vary due to constant product improvements. Gas Hob Models HJ747DAP Trivet Cast Iron Wok Trivet Cast Iron Top Plate Ceramic Glass Product Dimension (W*D*H) 760 mm X 510 mm X 105 mm... -
Page 11: Positioning
INSTALLATION Positioning Back Wall Front 50 mm This appliance is to be built into a kitchen unit or worktop, providing the following minimum distances are allowed ; 25 mm (MIN.) Ø100 mm Hole for Gas Pipe and Power Cord 760 mm 510 mm 70 mm 50 mm... -
Page 12: Installing The Appliance
Model No. pressure power input Wok burner Rapid Burner (Triple) 3.3 kW, 2.4 kW, 11.1 kW 2.9 kPa 0.93 mm 0.79 mm HJ747DAP 230 V, 50 Hz Natural Gas 3.3 kW. 2.7 kW, 11.5 kW 2.1 kPa 1.30 mm 1.20 mm... -
Page 13: Electrical Connection
INSTALLATION Electrical connection LPG / Natural Gas Conversion Instructions • This appliance must be earthed. • This appliance is designed to be connected to a WARNING 230 V, 50 Hz AC electricity supply. • The wires in the mains lead are coloured in •... - Page 14 14 INSTALLATION Getting Started • Gas Nozzle Specifications Nozzles and bypass nozzles have an code on the BURNER OUTPUT RATINGS; kW side or top, denoting the location on the gas hob LPG / Natural Gas where it is to be installed. Rate Nozzle Code Burner...
-
Page 15: Operation
OPERATION OPERATION To ignite a burner • Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the How to use the appliance maximum position. The following symbols will appear on the control •... -
Page 16: Using A Wok
16 OPERATION Using a Wok NOTE • For best performance, place the wok trivet over Smaller flat-bottomed woks can be used directly on the triple burner, left or right front burner. the trivet. Make sure that the wok bottom sits flat on •... -
Page 17: Safety And Energy Saving Advice
OPERATION Safety and energy saving Incorrect advice • Do not use small diameter cookware on large burners. The flame should never come CAUTION up the sides of the cookware. • Be careful! When you use oversize pot, the • Avoid cooking without a lid or surface and around product may be overheated. -
Page 18: Maintenance
18 MAINTENANCE MAINTENANCE Top plate ONLY use Ceramic Glass Cleaner. Other creams may not be as effective or they might damage the Cleaning and maintenance surface with scratches or permanent staining. To maintain and protect the ceramic top plate, follow CAUTION these steps: •... - Page 19 MAINTENANCE Burners When the cooking surface has cooled down apply a few drops of a ceramic glass cleaner in • Remove the burner caps and burner heads by each burner area and work the cleaning cream pulling them upwards and away from the top plate. over the top plate surface with a damp paper •...
-
Page 20: Troubleshooting
20 TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service • Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. • However, some minor problems can be resolved as follows : Symptoms Possible Causes / Solutions •... -
Page 21: Warranty
WARRANTY The LG Product comes with 12 months warranty on all parts except plastic parts, aesthetic parts like Trivets, Knobs from the date of purchase of the product provided always that the warranty card bears the rubber stamp, date and signature of LG authorized dealer. - Page 22 22 MEMO MEMO...
