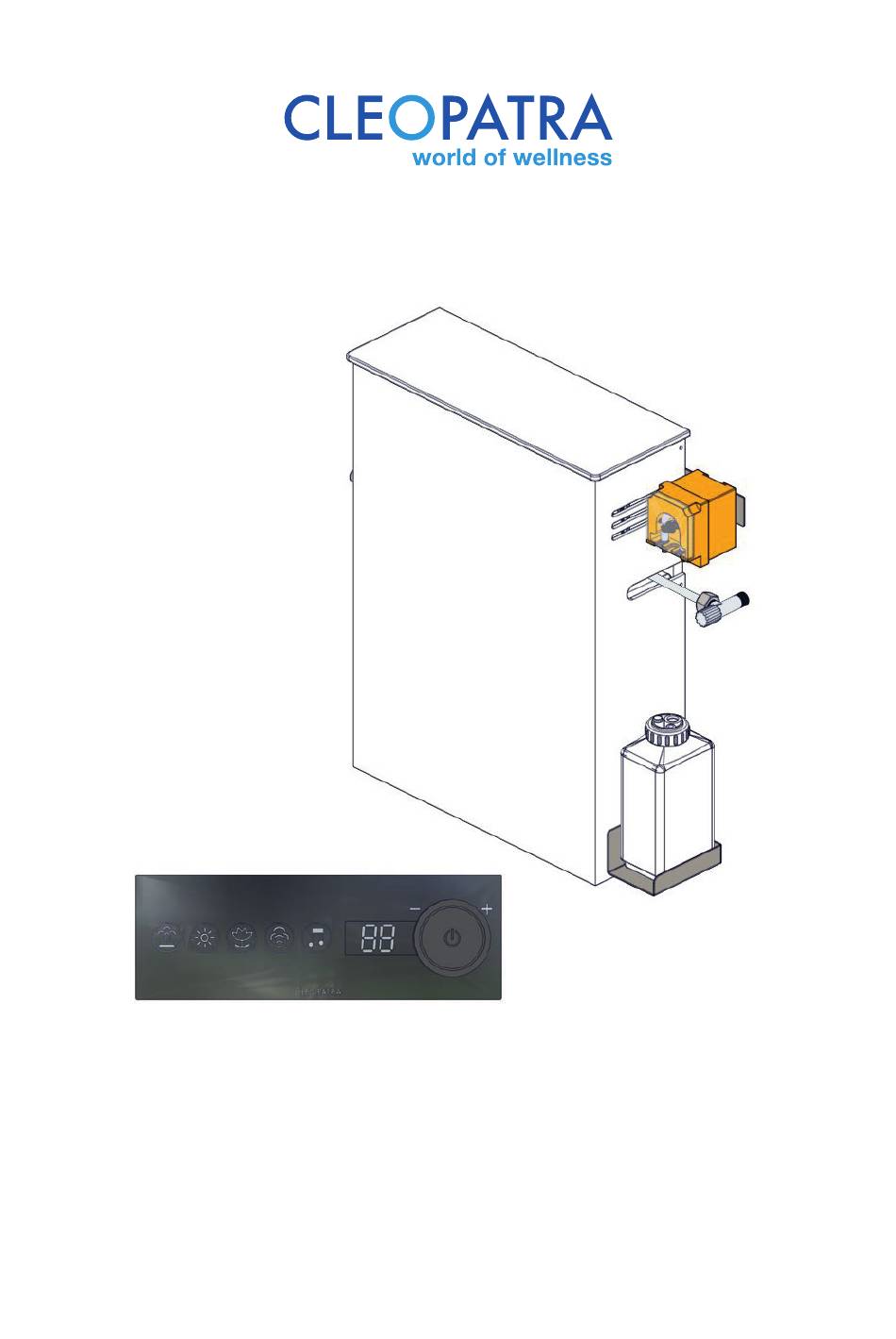

- Page 1 Cleo Steam Brain Installation manual Item no: 90179999 EN2018/09 R01...
- Page 2 All information in this technical document, together with the drawings and technical specifications made available by Cleopatra B.V., remain the property of Cleopatra B.V. and may not be copied without permission. Cleopatra B.V. reserves the right to make changes in the interest of further developments.
-
Page 3: Table Of Contents
Table of contents Installation manual Introduction and safety ........................4 Warnings ..........................5 Required tools and materials ......................6 Overview steam generator ......................7 Steam generator dimensions......................8 Installation in the technical area ...................... 9 Mounting on the wall........................9 Water connection and waste water .................... -
Page 4: Introduction And Safety
Pay attention: General danger Use screws and plugs to mount the Cleo Steam Brain on the wall. Walls that support the Cleo Steam Brain must be strong enough to carry the weight; otherwise they need to be strengthened. The supplied plugs and screws are intended for use on concrete or solid stone walls. -
Page 5: Warnings
Warnings Without permission and without instructions, the use of a steam cabin is forbidden for the following persons: - Children. - Adults with disabilities. - Persons who have not been instructed about what a steam cabin is meant for. - Persons who are intoxicated. Bringing electrical devices in the cabin is forbidden! Warning hot surfaces. -
Page 6: Required Tools And Materials
Required tools and materials Drill Kit gun Drill set Tapeline Screwdriver (cross) Pencil Spirit level Multitool Square... -
Page 7: Overview Steam Generator
Overview steam generator Casing Water pipe tap Steam outlet knee fitting Cable tray Hose clamp Cable clamp Flexible hose Drain (DO NOT DEFORM) Steam outlet Steam generator Water pipe Fragrance reservoir* Control box Fragrance reservoir holder* Fragrance pump* *Only applicable with the optional fragrance dispenser... -
Page 8: Steam Generator Dimensions
Steam generator dimensions Power Weight Steam outlet (kW) (mm) (mm) (mm) (mm) (kg) (Ø) +/-17 kg +/-17 kg +/-17 kg +/-17 kg *Only applicable with the optional fragrance dispenser... -
Page 9: Installation In The Technical Area
Installation in the technical area 100 mm 200 mm 200 mm X: Space for water drainage and siphon Use the minimum distances as shown in the drawing. Mounting on the wall... -
Page 11: Water Connection And Waste Water
- Maximum pressure steam cylinder exit: 100 mm water Water quality: The Cleo Steam Brain generators can use both hard and soft water. Recommended is untreated tap water. Water hardness: The water hardness is measured to the international Millimol / l calcium and magnesium ions per liter (former DH). -
Page 12: Electrical Connection
Electrical connection The electrical connection may only be carried out by a qualified electrician. For the electrical installation the current applicable VDE, country specific and EU regulations must be observed. All installation and test activities must be carried out by a qualified electrician and according to the latest standards. -
Page 13: Next Steps: Electrical Connections
400VAC-1N-50/60Hz 6 kW 400VAC-1N-50/60Hz 9 kW 400VAC-1N-50/60Hz A power cable of +/- 2 meters is included and connected. Connect the Cleo Steam Brain to the power supply according to the scheme below: Grey Shutting down Black Shutting down Brown Blue... -
Page 14: Steam Pipe
Steam pipe The steam pipe must always be made of an isolated copper pipe with a specified minimum diameter. This is 22 mm for generators up to 6 kW. At 9 kW a pipe diameter of 28 mm is used. The steam line is connected to the generator by means of the supplied rubber, steam hose and the supplied brass bend. -
Page 15: Overview Of Sensors
Overview of sensors Tube input for the purpose of putting in flexible tube Built-in part sensor Safety sensor Temperature sensor Overview operation iBox for Steam Brain 10107100 Steam Brain control 10107000 Rotary knob Steam Brain 10107200... -
Page 16: Overview Of Steam Inlet
Overview of steam inlet Brass pipe Ø 22mm Steam outlet Siphon for fragrance application O-ring Knee piece Ring m6 Coupling tube Bolt m6x50 Wall plate Steam hood Placing components in the cabin To make clear how the components can be placed in a cabin, we give an example. The cabin in the example is made up of aerated concrete blocks. -
Page 17: Explanation Recess Holes
14.1 Explanation recess holes Drill two recesses for the pipes (for the cables) and the built-in parts for the safety sensor and the temperature sensor. Min. depth: 40mm Sensors should be placed 1.8 meters from the floor surface Always keep a radius of 100 mm Ø... -
Page 18: Explanation Laying Cables
14.2 Explanation laying cables Assemble 2x: 1 Built-in part sensor 2 Tube input 3 Cable tube Pull the extension cable through the cable tube to the steam generator. Make sure there is at least 10 cm of play in the cable. 10 cm Place the piping of the steam inlet through the milled hole. -
Page 19: Finishing
Place the piping of the steam inlet through the recess. Finishing When finishing the walls, part of the steam outlet must be placed after plastering is done. Next, tile the rest of the room to install the remaining parts. Stuc de wand Plaster the wall and attach the steam outlet with o-ring to the wall plate. -
Page 20: Placing Sensors
15.1 Placing sensors Measure the distances to the center lines of the hole. 61 mm 194 mm 100 mm All distances serve as an example Measure and mark these distances on the tile. 61 mm 194 mm 100 mm Cut off 2x a hole in the tile with drill Ø25 and place it in the wall. - Page 21 Saw parts that stick out. Use a multitool for this. Insert a tension spring into a cable tube of a sensor. There is now a connection between the steam generator and the cabin. Connect the cable end of a sensor to the tension spring and use the tension spring to gently pull the cable into the tube.
-
Page 22: Placing Steam Outlet
15.2 Placing steam outlet Measure the distances to the center lines of the hole. 320 mm 137 mm All distances serve as an example Measure and mark these distances on the tile. Cut a circle of Ø 64mm out of the tiles and place the tiles on the wall. -
Page 23: Installation Of Control
15.3 Installation of control Measure the distances to the center lines of the hole. 42 mm 56 mm 530 mm 220 mm All distances serve as an example Measure and mark these distances on the tile. Cut off the shape from the tiles and place the tiles on the wall. - Page 24 Connect the 2 cables together. Kit the back of the controls and place it in the wall.
-
Page 25: Removing The Control
Removing the control Gently pull the control with a flat screwdriver. Pull out the control. Disconnect the cables. -
Page 26: Overview Of Electrical Connections
Overview of electrical connections Route the control, temperature and safety sensor cables through the cable glands. Electronics Brain Cleopatra multimedia module Control Temperature sensor Safety sensor LED Spots module LED Spots module LED rails module (4 pieces) (4 pieces) 17 .1... - Page 27 RS485 Control Safety sensor Temperature sensor Yellow (RX) Green (TX) White(GND) Brown (+12V) Steam Brain control Green (GN) Brown (BR) White (WT) Temperature sensor...
-
Page 28: Connecting Electronics Brain - Option White Light
Black Black Safety sensor Green (A) White (B) Brown (GND) Multimedia module RS485 17 .1.a Connecting electronics Brain - option white light If you have only ordered the “white light” option, you can connect the lighting to this module. In this case you do not need the Multimedia module. - Page 29 Connect plus and minus according to LED specifications White light 2...
-
Page 30: Connecting Multimedia Module
17 .2 Connecting Multimedia Module Overview connections Multimedia Module. RS485 UIT RS485 IN Supply Speaker 1 Speaker 2 Connection supply Brown (L) Blue (N) Connection RS485 IN Green (A) White (B) Brown (GND) - Page 31 Green (A) White (B) Brown (GND) Bushing RS485 OUT on other modules Connection speaker 1 and/or 2. 1) Black Grey 2) Black...
-
Page 32: Connection Led Spots Module
17 .3 Connection LED spots module LED spot 1 Overview connections LED spots module. LED spot 2 LED spot 3 LED spot 4 RS485 OUT Supply External push-button RS485 IN Brown (L) Blue (N) Connection supply Connection RS485 IN Green (A) White (B) Brown (GND) - Page 33 Green (A) White (B) Brown (GND) Bushing RS485 OUT on other modules Connection LED spot 1, 2, 3 1) Red 2) Green 3) Blue 4) Black and/or 4.
-
Page 34: Connection Led Rails Module
17 .4 Connection LED rails module LED rails 1 (max. 5m) Overview connections LED rails module. LED rails 2 (max. 5m) RS485 OUT Supply RS485 IN External push-button Brown (L) Blue (N) Connection supply Connection RS485 IN Green (A) White(B) Brown (GND) - Page 35 Green (A) White (B) Brown (GND) Bushing RS485 OUT on other modules Connection LED rails 1 and/or 2. 1) Red 2) Green 3) Blue 4) Black...
-
Page 36: Electrical Connections
Electrical connections... -
Page 39: Declaration Of Conformity
Declaration of conformity EC Declaration of Conformity in accordance with the low voltage directives 2014/35/Eu Cleopatra B.V. Oostzijde 295 1508 EN Zaandam, Holland hereby declares that the following described steam generator in our delivered design meets the correct basic safety and health requirements of the EC directives on the basis of its design and type, as put into circulation by us. - Page 40 Identification lable of the product We reserve the right and to adjust technical changes and printing-related color deviations. 01-2019 Cleopatra B.V. Oostzijde 295, 1508 EN Zaandam T: +31-75-6478200, info@cleopatra.nl, www.cleopatra-wellness.com...
