Vaniman StoneVac MillSync Manual

PACKING LIST

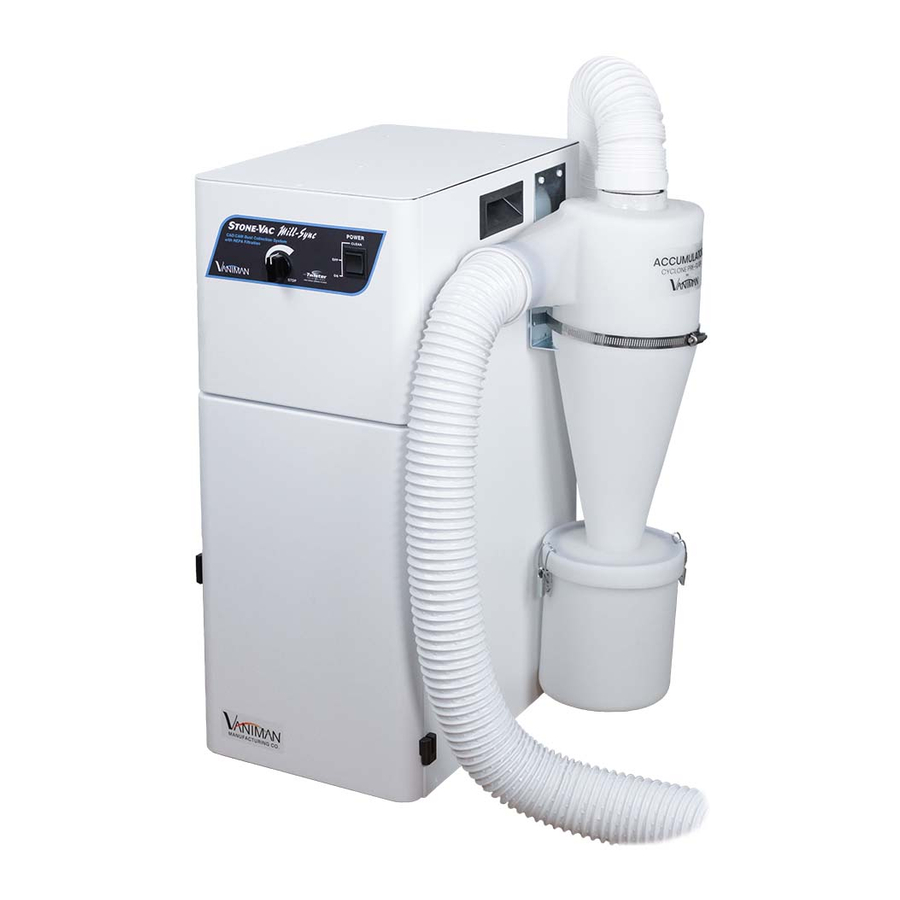

1 - StoneVac MillSync
2 - 2½" x 6' Hose
1 - Plastic Disposal Bag
1 - Power Cord
1 - Accumulator
1 - 2½" Elbow (black)
1 - Mill Remote
IMPORTANT SERVICE INFORMATION:
SAVE SHIPPING BOX AND FOAM FOR FUTURE
SERVICE. SHIPPING WITHOUT PROPER FOAM
MAY CAUSE DAMAGE TO UNIT

INSTRUCTIONS

1. Remove the unit and other parts from the box and check against the packing list.
Remove the hose from inside the dust bin as well as any protective paper packing material.
2. Plug the power cord into a designated 15 AMP circuit. Turn on the StoneVac by pushing the switch to
the "ON" position. Use the rotary switch to control the speed of the motor.
3. Mount the Accumulator according to the mounting instructions included with it or assemble the bracket
to the dust collector as illustrated. Remove the two screws provided on the side of the unit and use
them to fasten the bracket to the vacuum.
4. Insert the black 2½" Elbow into the top of the Accumulator. Connect one of the 2½" x 6' Hoses to the
back of the StoneVac then into the 2½" Elbow. The second 2½" x 6' Hose should be inserted into the
horizontal arm of the Accumulator then to the mill.
5. With the StoneVac off, plug the Mill Remote into the remote port of the dust collector then to the Mill.
Dry run the mill to test the collection to the StoneVac.
140 N. Brandon P.O. Box 74, Fallbrook, CA 92088

STONEVAC MILLSYNC
1-800-VANIMAN (826-4626)

120V
SV-MS-04/18 Page 1
