Installing Disk Drives - Tektronix Profile PDR 200 Upgrade Installation Instructions

9GB Disk Drive Upgrade

Installing Disk Drives

To install the new disk drives:
1. Observe ESD cautions and shock warnings on page 6.
2. Being sure to observe the connector orientation, reinstall the disk drives
previously removed by sliding the drive caddie into the drive tray and firmly
pressing down to connect the drive connector to the SCSI Backplane
(Figure 3, page 6).
3. Being sure to observe the connector orientation, in turn, slide each new drive
into an unused caddie slot in the drive tray and firmly press down to connect
the drive connector to the SCSI Backplane (Figure 7).
10 PDR 200 9GB Disk Drive Upgrade
9979-3

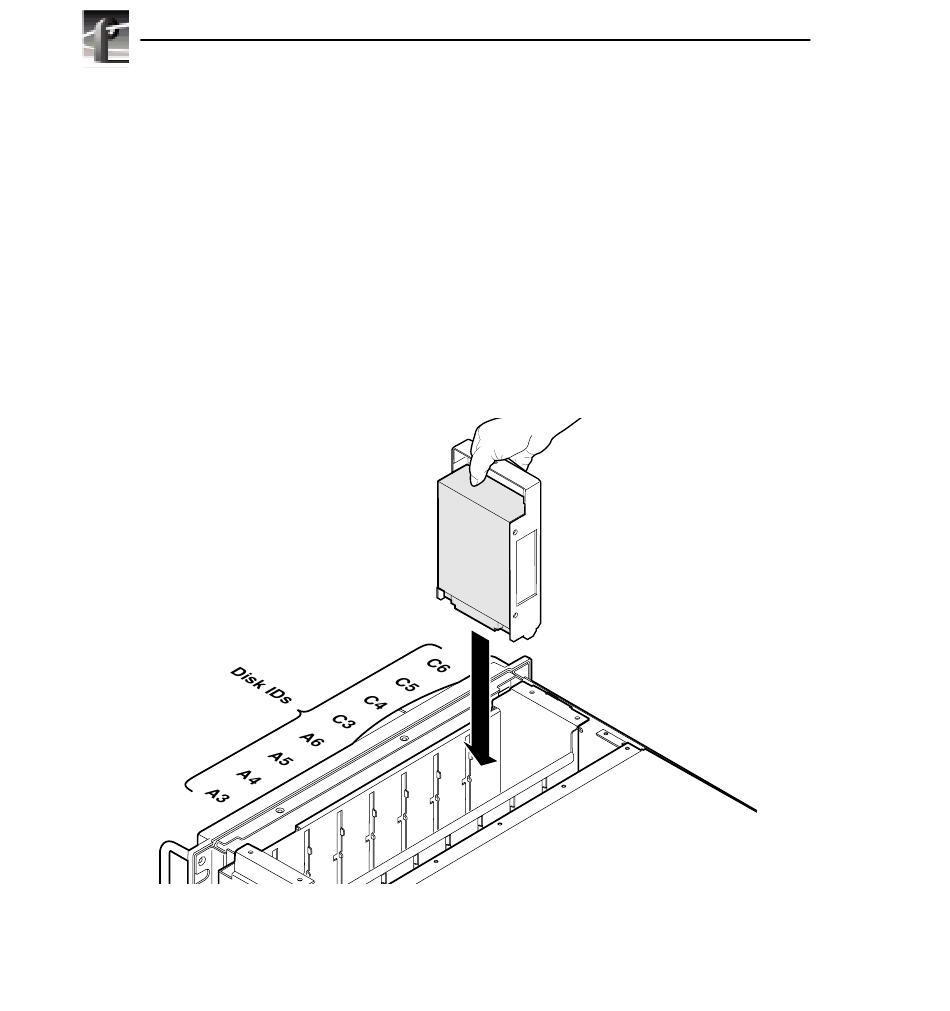

Figure 7. Installing Disk Drive Caddies
