9GB Disk Drive Upgrade
System Requirements
The Profile System Software installed in the PDR 200 must be version 2.1 or
higher. To check the software version installed in your PDR 200, use the
Help | About VdrPanel
the Product Version field in the displayed dialog box.
Kit Contents
In addition to these instructions, the 9GB Disk Drive Upgrade kit includes the
following:
• Four 9GB disk drives in caddies
• One SCSI cable
• One SCSI cable clamp
• Hardware to install the kit
Tools Required
Installation of the 9GB Disk Drive Upgrade kit requires the tools listed below,
which are not provided:
• Torx tool with T10 and T15 tips.
• ESD wrist band
You may also need diagonal cutters to dress or redress cabling.
2
PDR 200 9GB Disk Drive Upgrade
as shown in Figure 1. The software version is listed in

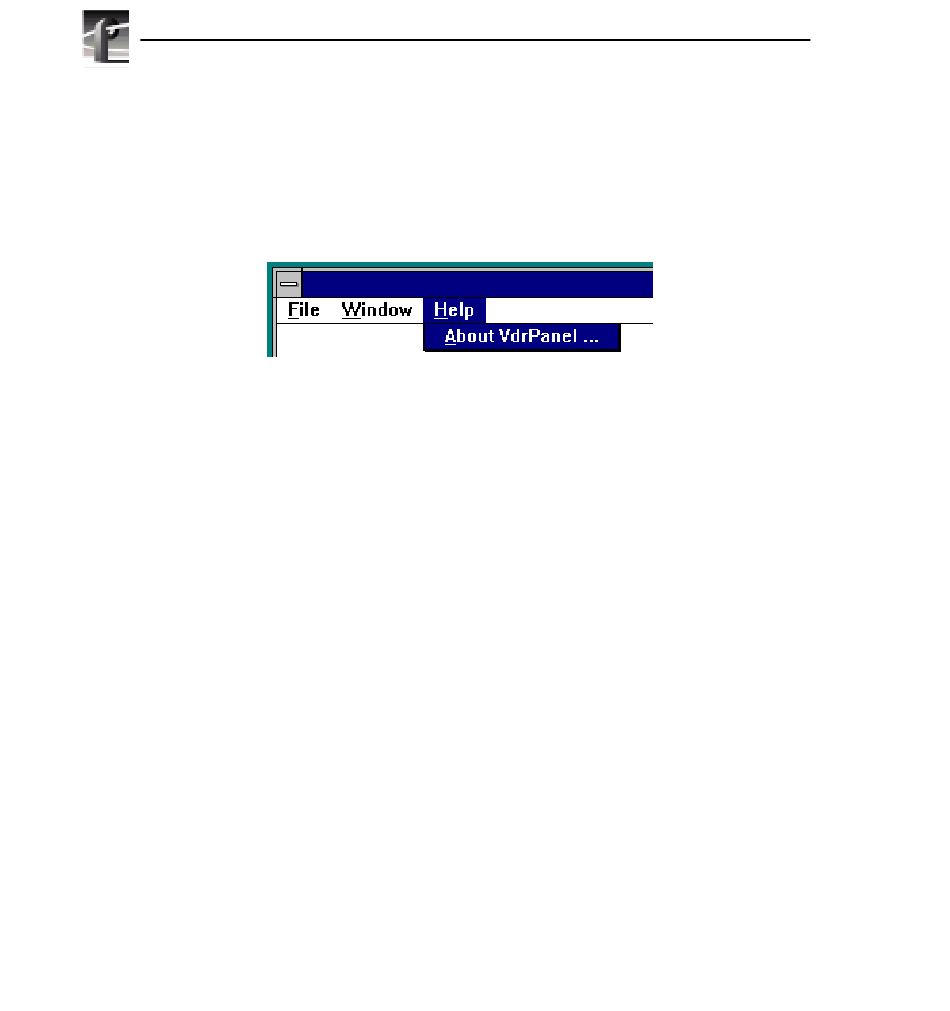

Figure 1. Checking the Software Version
