4. Remove the PCI board (Figure 6) by pulling straight up and off the boards to
which the PCI is connected.
5. Connect the free end of the cable to the SCSI header connector on the front
of the Slave Enhanced Disk Recorder board (Figure 5).
6. Noting the connector keying, reinstall the PCI board so that the MASTER
connector on the PCI board is connected to the Master Enhanced Disk
Recorder board (Figure 6).
7. Dress the SCSI cables through the channel to the right of the Fan Carrier
Tray.

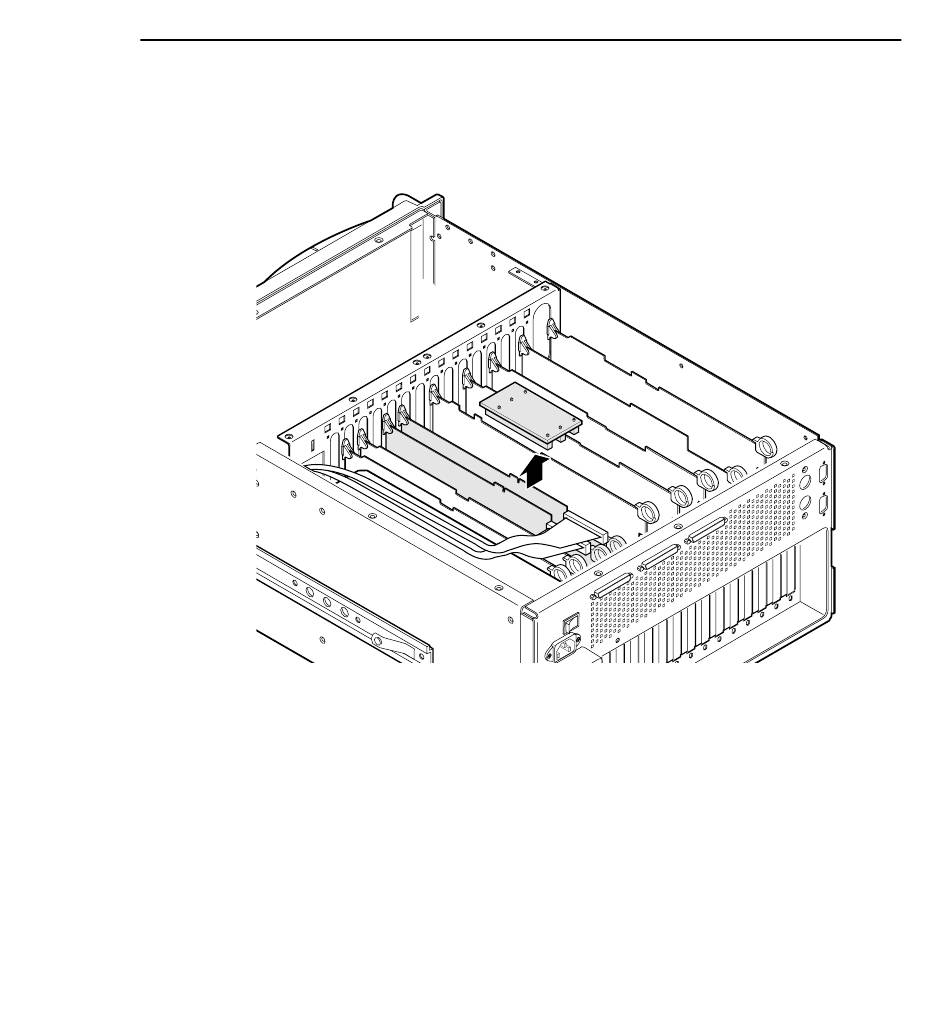

Figure 6. PCI Board Removal
PDR 200 9GB Disk Drive Upgrade
Installing the SCSI Cable
