PDi PD251-047 Quick Start Manual

Universal android module kit
Hide thumbs Also See for PD251-047:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Start Manual
PD251-047
Universal Android Module Kit
(Shown with optional Wi-Fi)
Document Number PD196-370R1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD251-047 and is the answer not in the manual?

Questions and answers

Related Manuals for PDi PD251-047

Summary of Contents for PDi PD251-047

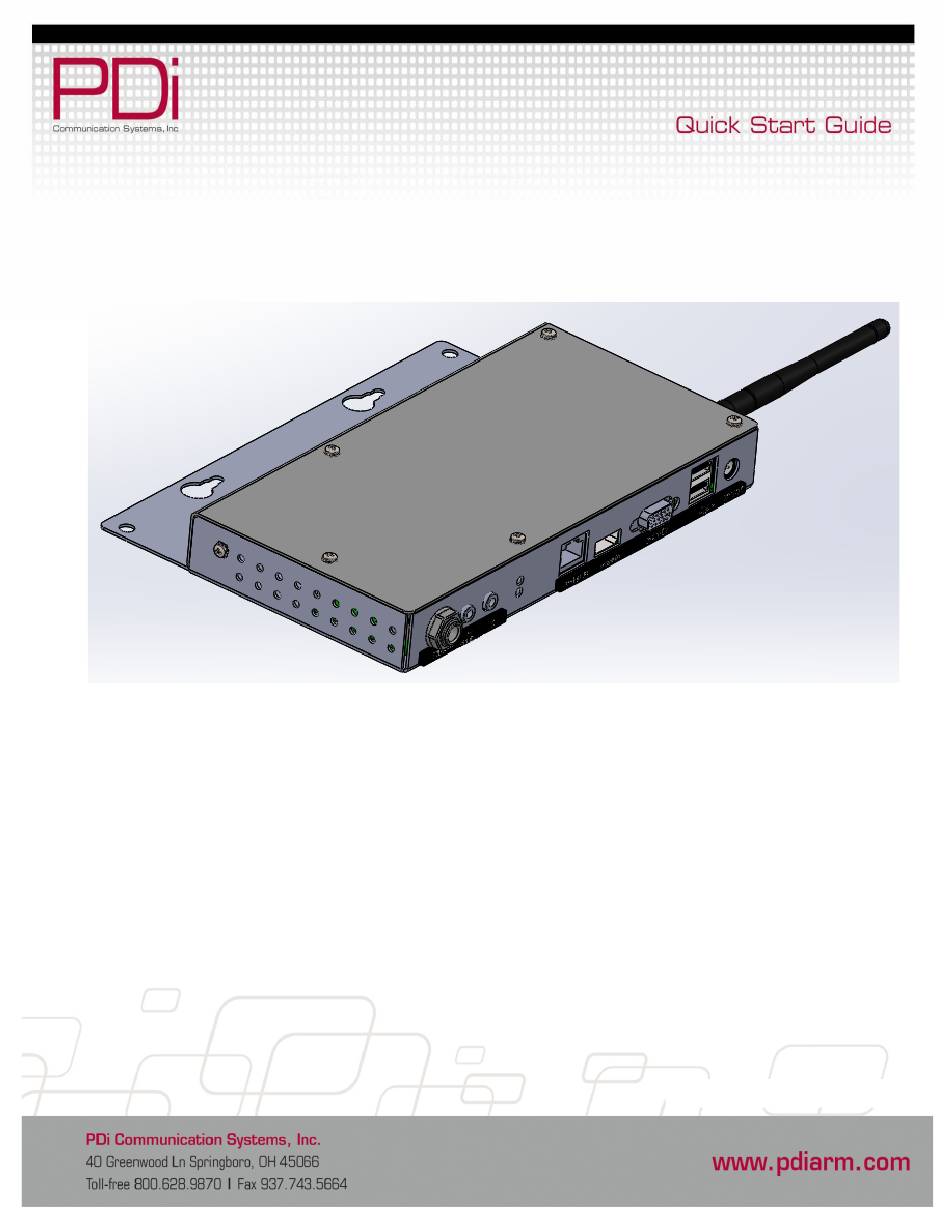

  • Page 1 PD251-047 Universal Android Module Kit (Shown with optional Wi-Fi) Document Number PD196-370R1...

  • Page 2: Copyright, Trademarks, And Disclaimer

    Disclaimer The author and publisher have used their best efforts in preparing this manual. PDi Communication Systems, Inc. makes no representation or warranties with respect to the accuracy or completeness of the contents of this manual and specifically disclaims any implied warranties or merchantability or fitness for any particular purpose and shall in no event be liable for any loss of profit or any other damages.

  • Page 3: Technical Specifications

    Voltage 12V DC *Technical specifications could change without prior notice Connections Optional Wifi Pillow HDMI Antenna Speaker Power Service Port Ethernet Power Cable Audio In PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...

  • Page 4: Installation

    Page 4 of 10 Installation PDi offers a wide range of wall, floor and ceiling mounting options. Installation of the Universal Android Module is shown with compatible PDi brackets. Use of any other bracket may require modification of installation. The Universal Android Module contains a 100mm and 200mm VESA pattern.
  • Page 5 IR beam from the TV’s remote control. If the TV’s remote will not be used in this application, then skip this step. Note the Universal Module is not compatible with all TV’s remote codes. Please contact PDI Communication Systems for compatibility information.

  • Page 6: Across Room Wiring

    ¼” phone plug. Verify the proper termination then attach the phone plug to the module as shown. If needed, the following jumper cables may be ordered from PDI Communication Systems. ACROSS ROOM WIRING JUMPER PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
  • Page 7 Attach the supplied HDMI cable to the Universal Android Module. Attach the other end to any free HDMI port on the TV. Finally attach the PD239-237 power adapter to the Universal Android Module, then to AC power. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
  • Page 8 You may have the PD161-004 PDi wireless keyboard (purchased separately) or other compatible keyboard for use with this module. If you are using the PDi wireless keyboard, it will function as any 83 key QWERTY keyboard with several “Hot” keys.

  • Page 9: Troubleshooting

    Additional Information Additional information is available in the user manual. You can access this information online at http://pdidisplays.com. For instructional installation video go to http://youtube.com/pdiuniversity. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...

  • Page 10: Limited Warranty

    Springboro, Ohio location, at its discretion, the whole or any component part of any product manufactured by PDi and found by PDi to be defective. If the decision is made to replace the product, PDi will exchange the model for the same model or a model similar in form and function.
