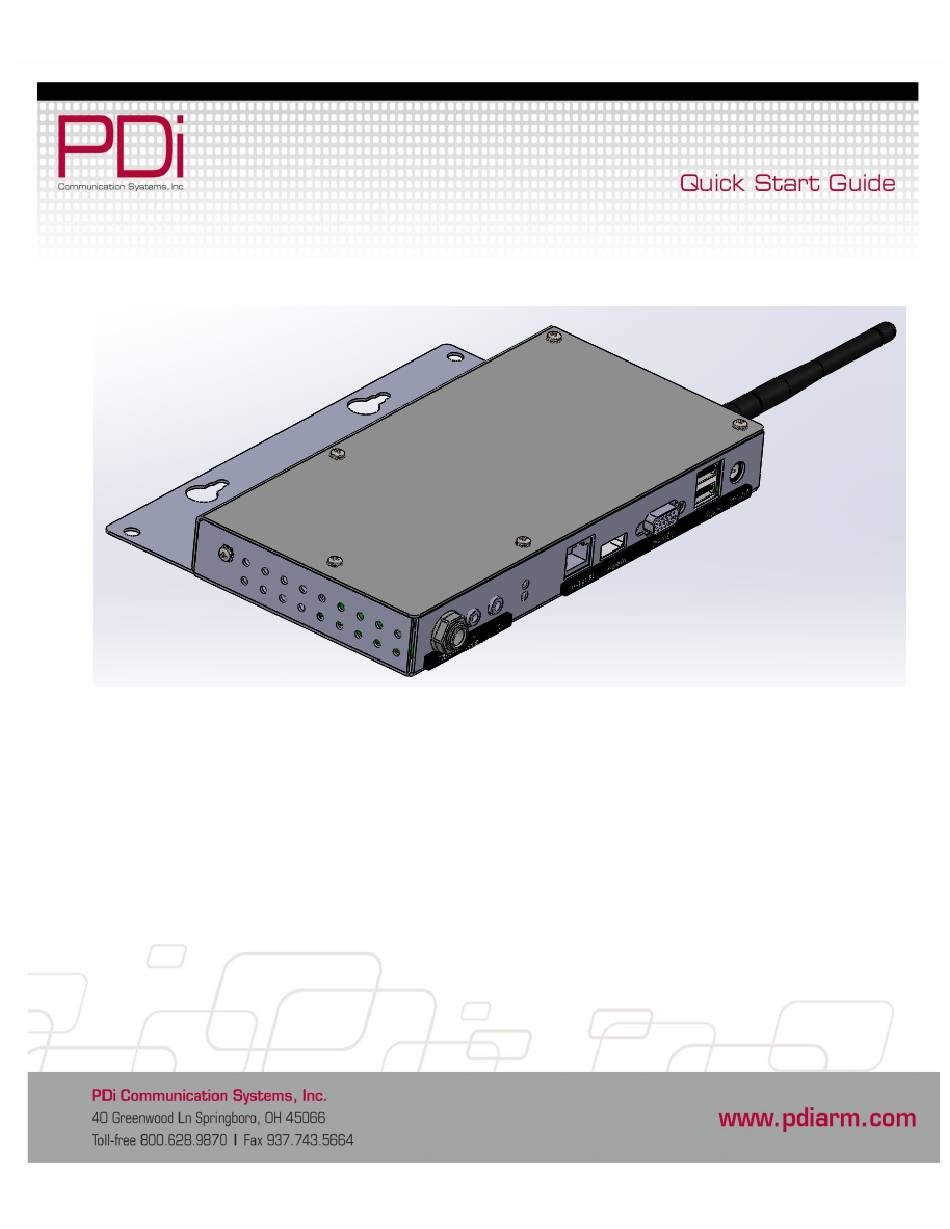

- Page 1 PD251-047 Universal Android Module Kit (Shown with optional Wi-Fi) Document Number PD196-370R2...
-
Page 2: Cautions And Warnings
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 3: Important Safety Instructions
– 11. Attachments Only voltage or other hazards. Refer all servicing attachments/accessories specified by the to qualified service personnel. manufacturer. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 4: Safety Instructions (French)
Cela permettra d’éviter tout dommage à l'appareil causé par la foudre et par les surtensions des lignes électriques. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 5: Technical Specifications
Voltage 12V DC *Technical specifications could change without prior notice Connections Optional Wifi Pillow HDMI Antenna Speaker Power Service Port Ethernet Power Cable Audio In PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 6: Installation
Page 6 of 13 Installation PDi offers a wide range of wall, floor and ceiling mounting options. Installation of the Universal Android Module is shown with compatible PDi brackets. Use of any other bracket may require modification of installation. The Universal Android Module contains a 100mm and 200mm VESA pattern. - Page 7 5. Place the ring terminal attached to the grounding cable over a #8-32 screw (not included). 6. Secure the grounding screw to the protective earthing location on the module. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
- Page 8 IR beam from the TV’s remote control. If the TV’s remote will not be used in this application, then skip this step. Note the Universal Module is not compatible with all TV’s remote codes. Please contact PDI Communication Systems for compatibility information.
-
Page 9: Across Room Wiring
¼” phone plug. Verify the proper termination then attach the phone plug to the module as shown. If needed, the following jumper cables may be ordered from PDI Communication Systems. JUMPER ACROSS ROOM WIRING PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... - Page 10 Attach the supplied HDMI cable to the Universal Android Module. Attach the other end to any free HDMI port on the TV. Finally attach the PD239-237 power adapter to the Universal Android Module, then to AC power. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
- Page 11 You may have the PD161-004 PDi wireless keyboard (purchased separately) or other compatible keyboard for use with this module. If you are using the PDi wireless keyboard, it will function as any 83 key QWERTY keyboard with several “Hot” keys.
-
Page 12: Troubleshooting
Additional Information Additional information is available in the user manual. You can access this information online at http://pdidisplays.com. For instructional installation video go to http://youtube.com/pdiuniversity. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 13: Limited Warranty
Springboro, Ohio location, at its discretion, the whole or any component part of any product manufactured by PDi and found by PDi to be defective. If the decision is made to replace the product, PDi will exchange the model for the same model or a model similar in form and function.
