Summary of Contents for 4titude 4S2

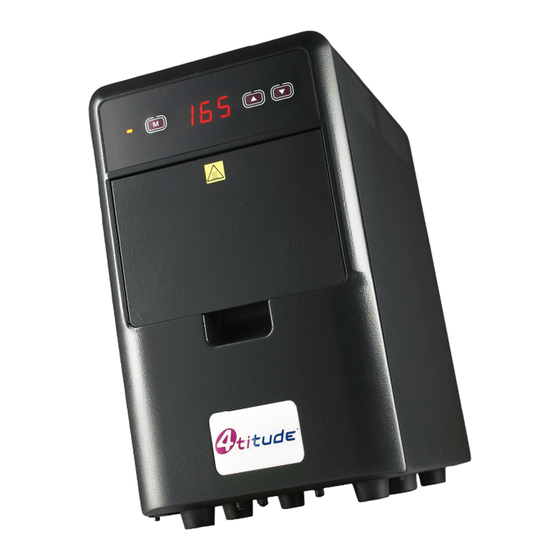

- Page 1 Variable Temperature Thermal Sealer foto...
- Page 2 The manufacturer accepts no liability for errors contained herein or for incidental or consequential damages with the performance or use of this material. System Components The following components are part of the 4s2 System (product code 4ti-0650): • 4ti-0650 - 4s2 Heat Sealer • Power Cable •...
-
Page 3: Table Of Contents
PAGE INDEX Introduction Chapter Index Safety Applicable Rules Technical Specifications General Specification Sealer Parts 2.1.1 Control Panel 2.1.2 Rear Power Interface Installation Unpacking and start-up Voltage Check Set-Up Set-Up Operating Mode Set-Up, Stand-By, Power-Down, Buzzer Basic Functions Run Mode Stand-By Mode Power-Down Mode Drawer Locking Troubleshooting... -
Page 4: Introduction
When the 4s2 is ready to start the operator needs to position the sample plate together with a foil or film on the plate carrier. The sealing operation starts once the drawer with the plate carrier has been closed. -
Page 5: Chapter Index
Chapter Index To use the 4s2 correctly and to obtain the best results, please read this manual carefully. Chapter 1 Introduction Warnings and Technical Specifications Chapter 2 General Description Chapter 3 Installation Chapter 4 Set-Up Chapter 5 Basic functions Chapter 6... -
Page 6: Applicable Rules
The following caution and safety signs are used in this manual: WARNING: Refer to manual The machine is designed for indoor laboratory use only, at an altitude of less than 2200m above sea level, within a temperature range of 15°C to 35°C and a relative humidity range of 5% to 85% non condensing. -
Page 7: Technical Specifications
Technical Specifications MECHANICAL Dimensions Height 310 mm. Depth 275 mm. Width 181 mm. Weight 9 kg ELECTRICAL Voltage 230/115/100 ±10% Vac Frequency 47/63 Hz Power 300 W ENVIRONMENTAL Temperature range Operative: 18°C - 35°C Storage: -20°C – 40°C Relative humidity 20% - 80% not condensing SET UP PARAMETERS Sealing temperature:... -
Page 8: General Specification
Chapter 2. GENERAL SPECIFICATION Sealer Parts Figure 1 Casing • Control panel • Rear Power Interface (3) • Heating element (4) • Plate carrier (5) • 96well PCR Plate Adapter (6) (optional) • Weighted platten (7) • Sealing Frame (8) •... -
Page 9: Control Panel
Control panel • Figure 2– Control Panel Display: Three Digit LED display Keys: (1) M: Set-up/Run mode key Directional key (up) Directional key (down) Led: Status Indicator, Amber... -
Page 10: Rear Power Interface
2.1.2 Rear Power Interface Figure 3– Rear Power Interface Power Setting 115/230 Vac and Fuse Holder I/O Power Switch Mains Power Plug... -
Page 11: Installation
Voltage Check Be sure that the equipment is not connected to the mains power. At the rear of the 4s2 is the connection panel with Power setting 230/115 Vac and Fuse Holder I/O Power Switch Mains Power Plug. - Page 12 Figure 3.A Figure 3B To change the voltage setting proceed as follows: 1. Open fuse holder compartment with a screwdriver, figure 3A. 2. With the screwdriver lever out the fuse holder, figure 3B. 3. Replace the two fuses according to the table below: Power Voltage (EN 60127) 115v...
-
Page 13: Set-Up
Chapter 4. SET-UP Set-up Operating Mode Power up the unit (switch on mains switch at the back of the unit). To enter into the set-up mode for time and temperature settings, briefly press and release the M key. The display shows the last set sealing temperature (flashing). The temperature can be decreased or increased using the keys temperature “OFF”... -
Page 14: Set-Up, Stand-By, Power-Down, Buzzer
Set-up, Stand-by, Power-down, Buzzer To enter into set-up mode for stand-by, power-down and audible warning, press the M key for 10 seconds, then release. The display shows the symbol “L” (flashing) and the last set stand by time (displayed as minutes). The stand-by time is the time after which the heater temperature is automatically reduced to 60°C when the unit is left idle. -
Page 15: Basic Functions
Chapter 5. BASIC FUNCTIONS “Run” Mode Switch on the unit. The unit will automatically go into the starting position with the drawer released and the plate lifting platform in “low” position. In starting position the unit will automatically begin to warm up the heating element. - Page 16 Place the sealing film over the plate, ensuring that the sealing surface is face down (Figure 6.A). When using heat sealing films that have a tendency to curl (for example 4titude Peel Seal (product code 4ti-0521), DMSO Resistant Seal (4ti-0587) and Clear Weld Seal Mark II (4ti-0575)) use the sealing frame which is supplied with the 4ti-0625 adapter.
-
Page 17: Stand-By Mode
“Stand-by” Mode If left idle for a prolonged time the sealer will automatically switch into stand-by mode (factory set at 60 minutes) and the temperature of the heating plate will be reduced to 60°C. When entering into stand-by mode the display shows the decrease of the temperature in real time and the amber LED is switched off. -
Page 18: Troubleshooting
6.TROUBLESHOOTING Introduction Possible error messages generated by the 4s2 are summarised in this chapter. If the solutions given below do not solve the problem, please contact 4titude or their authorised local distributor. Error Messages The display may show one of the following error codes. An intermittent audible warning sound will be emitted at the same time. -
Page 19: Cleaning The Heating Element
Cleaning the heating element If the operator inserts the sealing film upside down on the microplate the sealing film may get stuck on the heated sealing plate. To clean it proceed as follows: Switch “OFF” the unit Disconnect the unit from the mains power supply Do not attempt to clean the unit until it has cooled down to near room temperature Release the lever on the back of the unit counterclockwise (see figure);... - Page 20 Reinsert the drawer into the unit Move the lever on the back of the unit clockwise to secure the drawer mechanism (see figure) Figure 8.C Lever in “open” position Switch “ON” the unit.
-
Page 21: Maintenance
In case of radioactive spillages it is recommended to use an appropriate cleaning agent For any other maintenance operation not indicated in this manual, please contact 4titude. Any cleaning procedure must be followed with the unit switched “OFF”, the power cable disconnected and the heated parts at... -
Page 22: Accessories & Consumables
Chapter 8. ACCESSORIES AND CONSUMABLES The 4s2 is designed to be used with the following consumables: Plate types (polypropylene,polyethylene,polystyrene) SBS format shallow well plates Deep Well plates Tube Blocks (various) PCR plates Thermal sealing plastic or Sealing film types Foil-polypropylene laminate... -
Page 23: Sealing Parameters
Chapter 9. SEALING PARAMETERS The following sealing temperatures are for guidance only. Sealing efficiency varies depending on the plate type used. Add 1 second to the sealing time when a weighted platten is used (4ti-0602). Dwell time and Dwell time and Catalogue Name temperature for... -
Page 24: Shipping Instructions
Chapter 10. SHIPPING INSTRUCTIONS When shipping the unit the original packaging must be used to prevent damage to the instrument. The manufacturer accepts no responsibility for damage incurred unless the unit is correctly packed as described below and transported using the original packaging. 1. -
Page 25: Warranty
Chapter 11. WARRANTY The manufacturer warrants that the product is free from defects in materials and workmanship for a period of 12 months from the date of purchase. The manufacturer warrants the services it performs and the spare and replacement parts provided, for a period of 90 (ninety) days from the date of the performance of such services and the date of shipment of the spare or replacement parts, respectively.
