Xiaomi YueMi MK01 Quick Start Manual

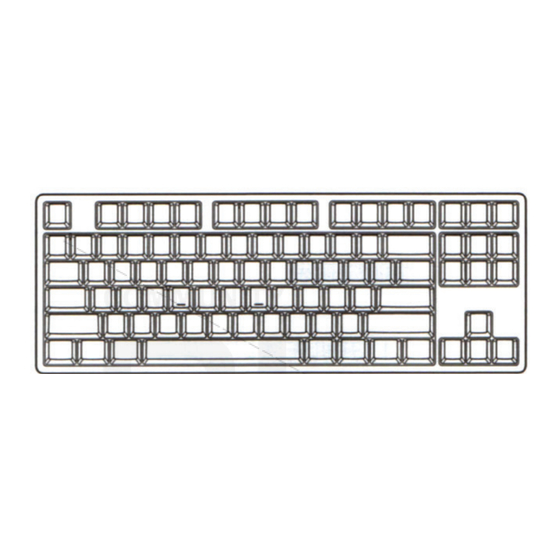

YueMi Mechanical Keyboard
YueMi Mechanical Keyboard х1
One end of the USB cable connect with Micro USB port of the keyboard. Note the direction
of a port to avoid damage.
Then insert an end of a cable to the computer. A system automatically checks an USB
device and performs an installation of drivers. After installation, a system notifies correct
use of the device. USB device supports hot swapping (Plug and Play).
Name: YueMi Mechanical Keyboard;
Model: MK01;
Color: white;
Standard: GB 4943.1-2011;
Material: Metal + PC / ABS;
Weight: 940 g;
Size: 358 mm x 128 mm x 31.6 mm;
The method of transferring data: cable;
Keyboard: mechanical keyboard, 87 keys;
Port: Micro USB.
Accessories
USB cable х1
Usage
Specifications
Keys and keyboard brightness
This unit has 6 modes of brightness:
LED is off - brightness level 0;
LED is on - brightness level of 10% / 25% brightness level;
brightness level of 50% / 75% brightness level;
brightness level of 100%;
Brightness level by default - 25%.
Control brightness level is done by pressing FN + direction keys to top.
To increase brightness
simultaneously press FN key +
Up arrow.
To reduce brightness
simultaneously press FN key +
Down Arrow.
Press simultaneously FN +
Win, Win key lights up in yellow,
indicating its lock.
When you click on FN key + Win,
Win key unlocks.
Capslock
After pressing Capslock, key
lights up in yellow.
SL (Scroll lock)
After clicking on the SL, key lights
up in yellow.
Manufacturer: «Beijing Yuemi Technology» (Мi Ecosystem)
Address: Beijing city, Haiding District, Cuiwei Road 2, Building 1, 2nd Floor, Office 2057.
