DVI-I Output Port # 1 to # 4: The four black DVI-I Output ports are used to connect the DB-RC4 v2 to the output
2
monitors or displays. The DVI-I outputs support both DVI and analog RGB (VGA) signals.
DVI IN Port: The DVI IN port (white) is applied to connect the input source. The DB-RC4 v2 supports Single-Link
3
DVI-D, Dual –Link DVI-D and HDMI (not HDCP compliant) signals. When connecting an HDMI source, like a PC or
laptop with an HDMI graphics card, an HDMI to DVI adapter is needed. Use a DVI-I connector as it is compatible with
most DVI cables.
Power Socket: The power socket is used to connect the DB-RC4 v2 power adapter. The parameters of the AC-DC
4
switching power adapter is shown below:
Input: 100-240 VAC, 50/60hz, 1.4A
Ventilation Hole: System fan and ventilation hole. Do not obstruct the ventilation hole as it may cause the DB-RC4
5
v2 to overheat.

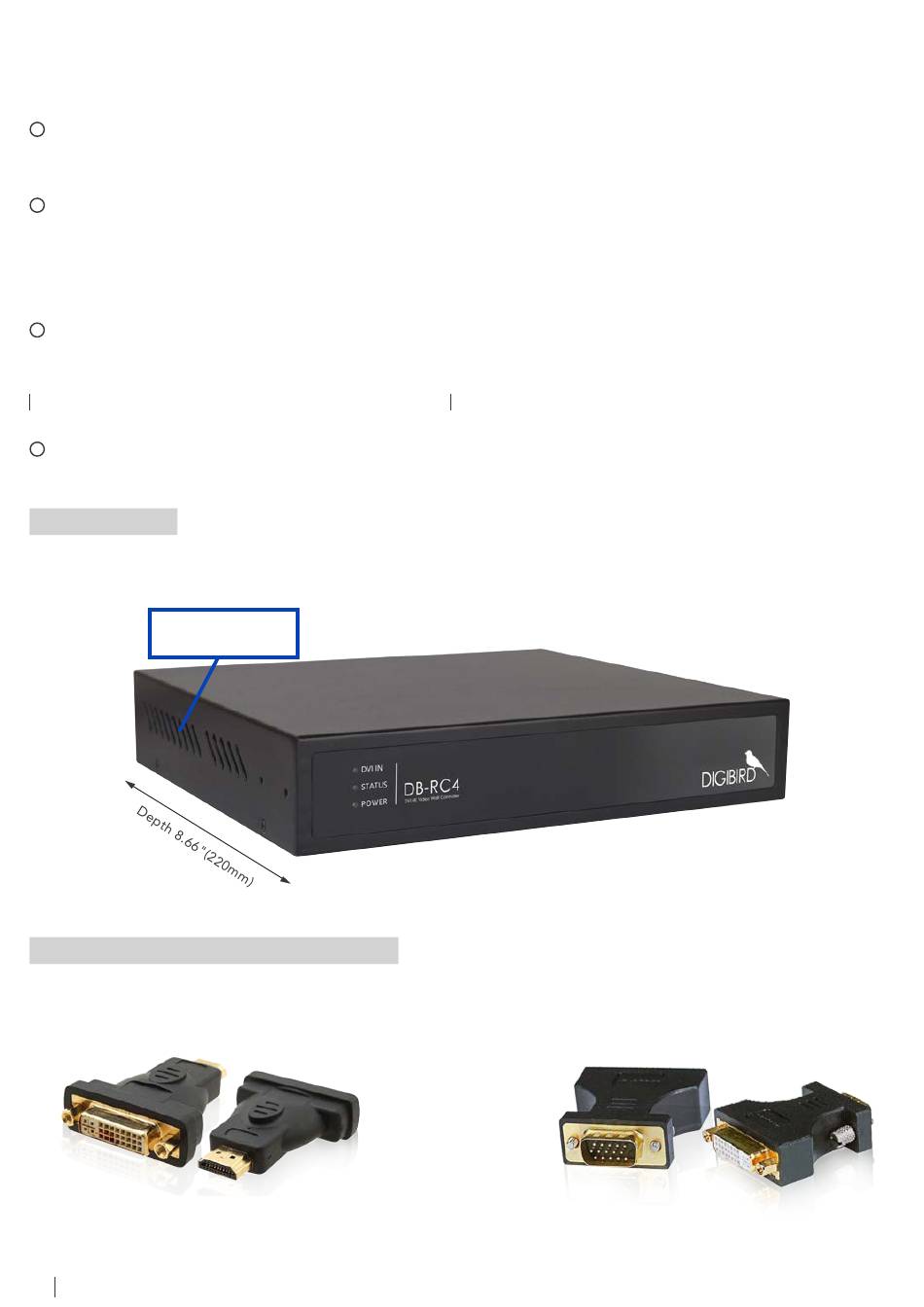

2.2.4 Side View
The following figures show both sides of the DB-RC4 v2 ventilation grilles. Do not obstruct the ventilation grilles under
any circumstances.
Ventilation Grilles

2.2.5 Optional Hardware (sold separately)

Depending on your needs, you may also require the following hardware:
A. HDMI to DVI adapter for DB-RC4 v2 input
Figure 2.2.5 A: HDMI Male to DVI-I Dual Link Female Adapter
10
All rights reserved by DigiBird
Output: 12V DC, 5.0A, 60W Max.
Figure 2.2.4 Side View
®
B. DVI to VGA adapter for DB-RC4 v2 outputs
Figure 2.2.5 B: DVI-I Female to VGA Male Adapter
