Dimensions
Package Dimensions
Net Weight
Gross Weight

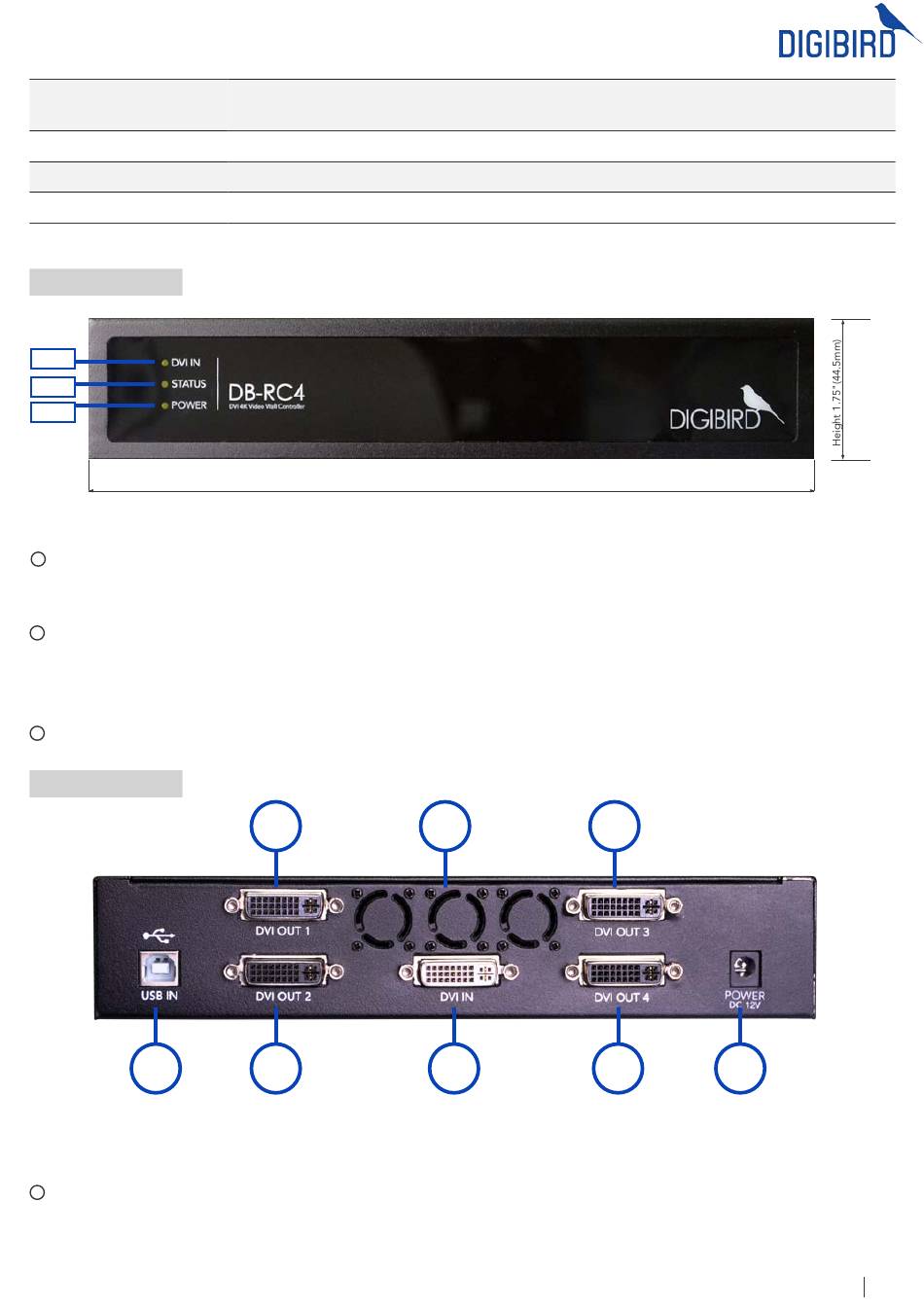

2.2.2 Front Panel

1
2
3
DVI IN indicator LED: When the DVI IN LED lights orange, it indicates a valid input source is connected to the input
1
interface of the DB-RC4 v2.
Status indicator LED: Solid-state lighting indicates the DB-RC4 v2 is running properly. When the LED is blinking, it
2
means the detected input resolution doesn't match the default or configured input resolution. The user should follow
the instructions and modify the configuration using the software.
Power indicator LED: This LED lights orange when the DB-RC4 v2 is powered on.
3

2.2.3 Rear Panel

1
USB Type B Port: This USB Type B port is compatible with USB 1.0 and 2.0. The USB port is used to connect the
1
DB-RC4 v2 to your control PC. A USB Type A to Type B cable is supplied with the DB-RC4 v2. The DB-RC4 v2 can be
controlled via the USB port while using the windows-based software.
1.75"H x 8.86"W x 8.66"D (44.5mm x 225mm x 220mm) without rack mount ears
1.75"H x 10.24"W x 8.66"D (44.5mm x 260mm x 220mm) with rack mount ears
3.74"H x 17.72"W x 12.20"D (95mm x 450mm x 310mm)
1.26 Kg or 2.78 lbs
2.87 Kg or 6.33 lbs
Width 8.86"(225mm)
2
2
Figure 2.2.3 Rear Panel
Figure 2.2.2 Front Panel
5
3
2
2 4
