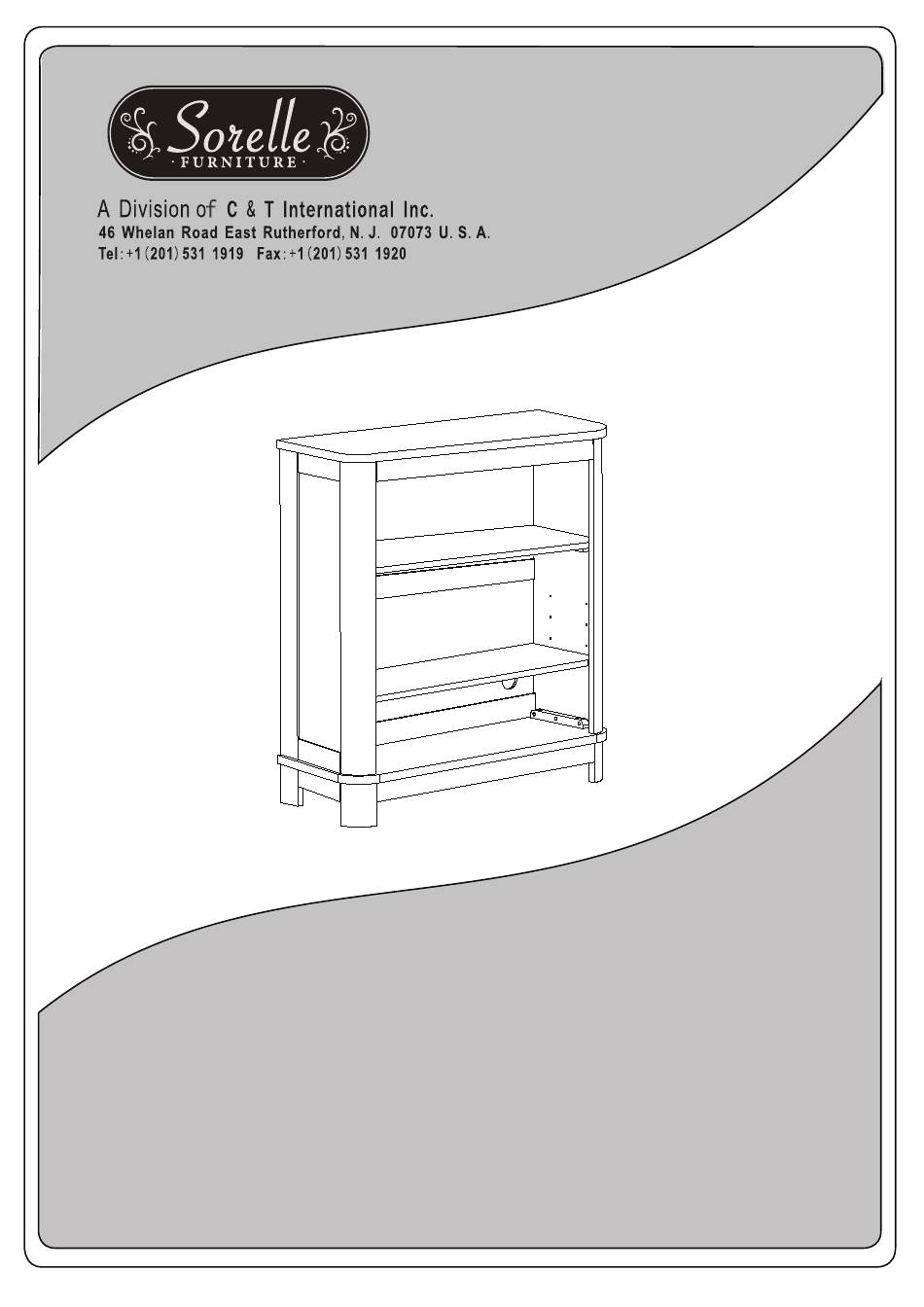

- Page 1 Website: www.sorellefurniture.com Chandler Hutch/Bookcase Important Information: Before assembly, read these instructions. Make sure all preassembled parts are tight. Store this instruction manual for future reference. Made in ASY Vietnam...
- Page 2 Hutch Assembly Parts Fixed Shelf (1 pc) Top panel ( 1 pc) (G) Adjustable Shelf (1 pc) Left Side panel (1 pcs) (H) Upper Back Rail (1 pc) Right Side panel (1 pcs) ( I ) Middle Back Rail (1 pc) Bottom panel/Bookcase Base(1pc) J) Back Bottom Rail (1pc) Front top rail (1 pc)
- Page 3 Hutch Assembly Insert Six (6) Cam Bolt(h) to Side panel(B&C). Attach the Fixed shelf (F) to the right side panel( C ) using 32mm bolts(2pcs) , Use Allen key to tighten bolts. Attach the Front top Rail (E) to the right side panel( C ) using 32mm bolts(1pc)+Washer(1pc) , Use Allen key to tighten bolts.
- Page 4 Hutch Assembly Attach the Left side panel to the Upper Back Rail (A) and Middle Back Rail (I) and Back- Bottom Rail(J) by four Cam lock(g) .See Figure 2. Attach the Left side panel to the Fixed shelf (F), using 32mm bolts(2pcs) , Use Allen key to tighten bolts.
- Page 5 Hutch/Bookcase Base Assembly Attach the Bottom panel/Bookcase base (D) to left side panel (D) and right side panel (C) , using 32mm bolts(4pcs) , Use Allen key to tighten bolts. See Figure 5. c x 4 Figure 5. Attach the Bottom panel/Bookcase base (D) to Back Bottom Rail (J) by four Cam lock(g) .See Figure 6.
- Page 6 Hutch Assembly Attach Adjustable Shelf (G) by using Four (4)Shelf Support(a) and Four(4) Phillips Screw(b) See Figure 7. (4x) (4x) See Figure 7. Page 6...
