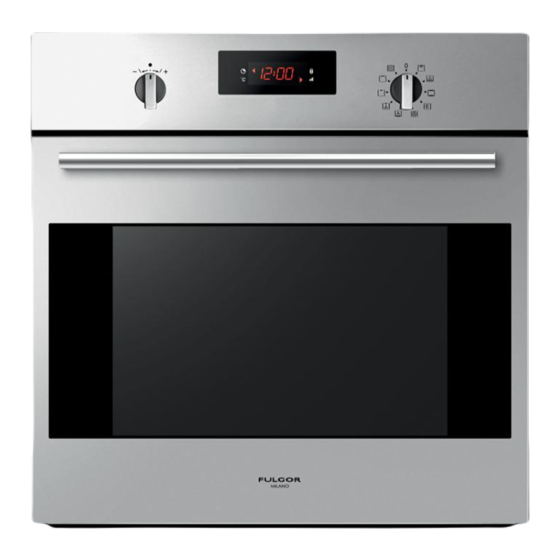

MULTIFUNCTION OVEN - 60CM
Pyrolytic
MODEL OVP6-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OVP6-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Fulgor Milano OVP6-10

Summary of Contents for Fulgor Milano OVP6-10

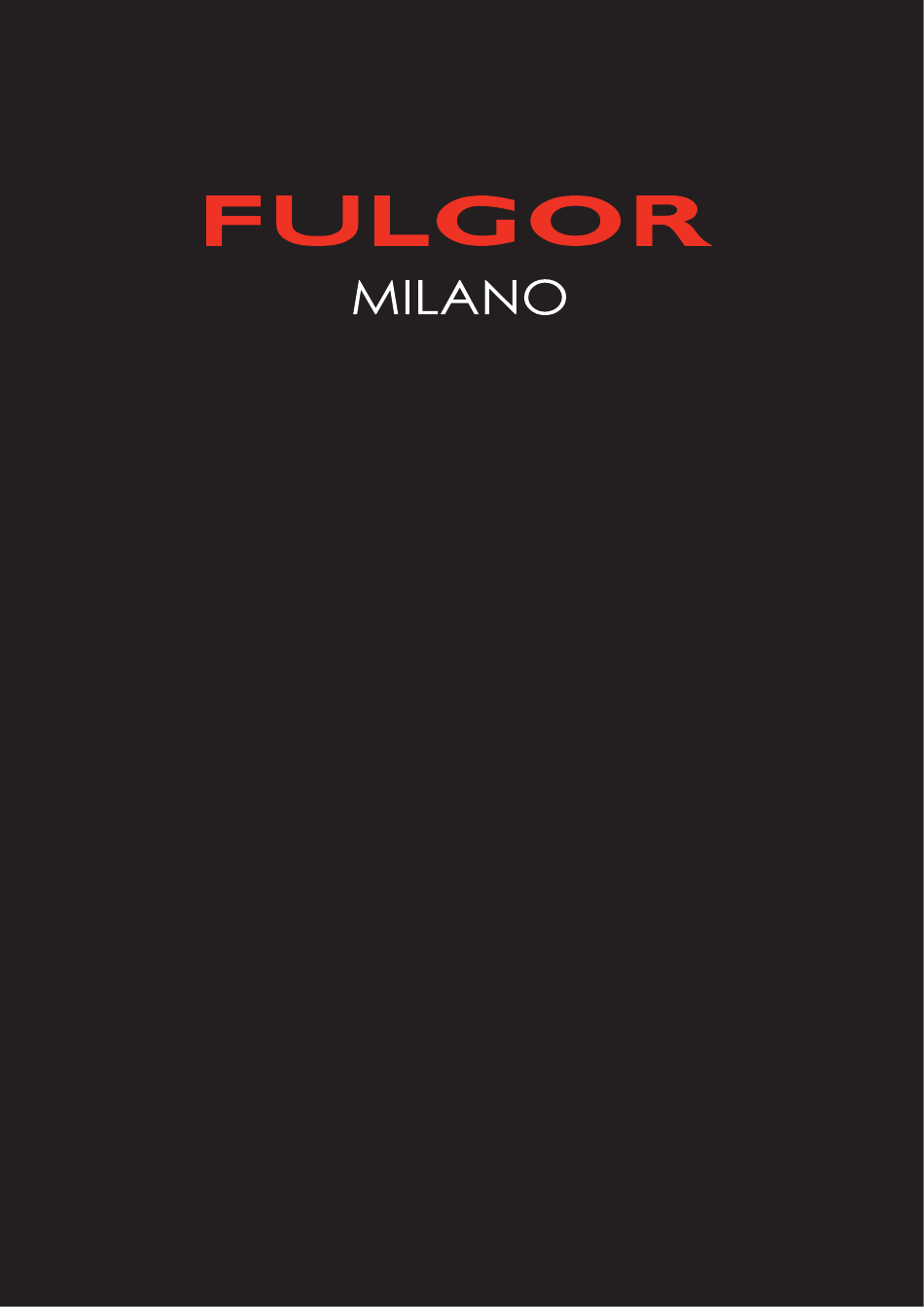

  • Page 1 MULTIFUNCTION OVEN - 60CM Pyrolytic MODEL OVP6-10...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS................4 INSTALLATION OF THE OVEN..............5 Electricals......................5 Connection to the electrical power mains............7 INSTRUCTIONS FOR USE................8 Oven Racks..................... 8 Oven extendable racks (if present)..............9 Cooking functions.................... 10 Electronic control..................... 12 DOOR LOCKING SYSTEM................19 Automatic door locking during pyrolytic cycle..........

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS - Do not disassemble any parts prior to having disconnected the oven from the mains. - Do not use the appliance if any part is broken (for example a glass). Disconnect it from the mains and call service. - Before using the oven, it is recommended to make it operate at noload at the maximum temperature for an hour to eliminate the insulating material odour.

  • Page 5: Installation Of The Oven

    INSTALLATION OF THE OVEN To install the oven into the kitchen a cutout should be made in accordance with the dimensions shown in Fig. 1. The apparatus is to be fastened to the top by means of the two screws provided in the kit through the holes made on the oven uprights.
  • Page 6 Dimensions are in centimeters Appliances Single oven 58,5 59,5 58,9 59,5 86,5 Fig. 1...

  • Page 7: Connection To The Electrical Power Mains

    Connection to the electrical power mains WARNING This apparatus must be earthed. The oven is only for domestic use. The feed voltage and the absorbed power are as indicated on the data plate attached to the left-hand side upright, which can be seen when the oven door is open. Connecting must be carried out by personnel and in accordance with the regulations currently in force.

  • Page 8: Instructions For Use

    INSTRUCTIONS FOR USE Oven Racks WARNING Never use aluminum foil to cover the oven racks or to line the oven. It can cause damage to the oven liner if heat is trapped under the foil. WARNING Make sure you do not force it to avoid damage to the enamel. The oven has rack guides at four levels.

  • Page 9: Oven Extendable Racks (If Present)

    Oven extendable racks (if present) The extendable rack allows for easier access to cooking foods. It extends beyond the WARNING Make sute that: lock. They could unexpectedly extend if the rack is carried incorrectly. Extending slide arms could cause injury. Rack should only be held or carried by grasping the sides.

  • Page 10: Cooking Functions

    Cooking functions Each type of oven is provided for various cooking systems. A system can be selected by bringing the pointer of knob to the relating symbol. The Fig. 8 shows the controls available on the different oven models. … 0 All the cooking modes are OFF and the oven heating elements are OFF.
  • Page 11 The Convection Bake mode uses Consequently different foods can be the circular or third heating element cooked simultaneously (maximum hidden behind the at the three levels) and is suitable for back wall of the oven. The heat is preparing a complete dinner (small circulated throughout the oven by the portions).

  • Page 12: Electronic Control

    Electronic control Control panel description (“EXTRA SMALL”) The oven control panel is made with one display and two knobs. - Time & Temperature display. - Time & Temperature knob (Push & Shuttle). - Mode (oven functions) knob. & Fig. 8 The push &...
  • Page 13 -/+ knob acts on the time of day by default. - Push the Temp&Time selector to switch back and forth between hours and minutes. - After a few seconds the whole time of day starts wait until the new time of day is steady. Fig.
  • Page 14 Setting an oven function manually Turn the mode knob into the desired position, the clock display shows On for a few seconds. The oven will work for a maximum time (12hours). Depending on the oven model, the number and type of available functions can be different. If the selected function works using any heating elements, the symbol is displayed (it Turn the Temp &...
  • Page 15 - Push the knob to switch forth between hours minutes or will few seconds then it will show the time of symbol letter to timed cooking 1 then the knob until control shows the “current time + cooking time” to lower the end of cooking time below this In order to set the desired - Push the knob to switch...
  • Page 16 Eco-Bake This function is in order to obtain a consistent energy saving. The cooling fan is initially off and turns on only when the inner parts temperature gets high. Cooking might be a little bit slower than the standard Bake, especially when the oven is heavily loaded. Defrost This function is used to defrost frozen food in a short time.
  • Page 17 Door lock for children safety (pyro) This is an additional safety functions available only in pyrolityc ovens. The door latch mechanism that is managed automatically during pyrolyse can be actuated manually by the user in order to lock the oven door and prevent children from having free access to the oven.
  • Page 18 Cooking mode table with preset, minimum, maximum temperatures (°C) and nominal power (Watt) HEATING N° MODE PRESET(°C) TMIN(°C) TMAX(°C) NAME ELEMENTS (W) KEEP WARM 2200 BAKE 2200 ECO-BAKE 1200 LOWER BAKE DEFROST LOWER 1200 CONVECTION BAKE 2200 CONVECTION ROAST 2300 CONVECTION BAKE 2000 CONVECTION GRILL...

  • Page 19: Door Locking System

    DOOR LOCKING SYSTEM Automatic door locking during pyrolytic cycle For safety reasons, the door is locked automatically as soon as self-clean mode is selected (both standard, both eco clean). The door is also unlocked automatically when the clean time has expired but only after the temperature has fallen below the safety threshold.

  • Page 20: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Prior to taking any action for cleaning, make sure the apparatus is cut-out from the mains. It is recommended that the oven interior be frequently cleaned. In particular, it should be cleaned every time the grill is used to prevent excessive fouling of the oven interior that may generate fumes or odours during subsequent cooking.

  • Page 21: Oven Door Removal

    Oven door removal WARNING Make sure that: before removing the door. Failure to do so could result in electrical shock or burns. the oven door. The door front is glass. Handle care-fully to avoid breakage. handle as it may swing in your hand and cause damage or injury.

  • Page 22: Removing The "Full Glass" Panoramic Door

    Removing the “FULL GLASS” panoramic door WARNING Make sure that: before removing the door. Failure to do so could result in electrical shock or burns. the oven door. The door front is glass. Handle care-fully to avoid breakage. handle as it may swing in your hand and cause damage or injury.

  • Page 23: How To Remove The Inner Glass Of The "Full Glass" Panoramic Door

    How to remove the inner glass of the “FULL GLASS” panoramic door 1. Wear protective gloves. scratching the visible part. NOTE: a slight gap between the middle panes and the side supports is normal because it allows for the heat expansion of the glass. strip.

  • Page 24: Replacement Of The Oven Light

    Replacement of the oven light WARNING Make sure that: turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns. breakage. Broken glass could cause an injury. (230V - 15 or 25W) Fig. 12 1 Turn off power at the main power supply (fuse or breaker box).

  • Page 25: Guidance Temperature An Time Schedule For Cooking

    GUIDANCE TEMPERATURE AN TIME SCHEDULE FOR COOKING Traditional cooking system Hot-air cooking system Rack position FOOD Mode Cooking time Cooking time in (from the bottom) Temperature °C Temperature °C in minutes minutes Poork,calf (roast) etc. 200 ÷ 225 100 ÷ 150 175 ÷...
  • Page 27 Upon receipt of a valid Claim, a Local Servicing Agent will attend your premises to inspectthe Product. Where a Product is found to be defective, Fulgor Milano Australasia will, at its option and expense, repair or replace the Product or the defective material or part. If Fulgor Milano Australasia repairs or replaces a defective Product, the warranty period for any Product repaired or replaced does not extend beyond the original Warranty Period.
  • Page 28 If You are unable to provide Proof of Purchase, Fulgor Milano Australasia will not be obliged to repair or replace the defective Product. Fulgor Milano Australasia will not be responsible for any costs or expenses, loss or damage, associated with: Any transport of the Product to a Local Servicing Agent;...
