Summary of Contents for Haemonetics Cell Saver Elite
- Page 1 Connectivity Upgrade User Manual Addendum 0123 120857-US(AC) June 2017...
- Page 2 © 2016, 2017 Haemonetics Corporation Notice The contents of this manual are the property of the Haemonetics Corporation. Any information or descriptions contained in this manual may not be reproduced and released to any of the general public, or used in conjunction with any professional instruction without written consent of Haemonetics Corporation, USA.
- Page 3 The document is furnished for information use only, is subject to change Updates without notice and should not be construed as a commitment by Haemonetics Corporation. Haemonetics Corporation assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this material.
-
Page 5: Table Of Contents
Event Messages ..........19 ® ® ® ® Haemonetics Cell Saver Elite /Elite + User Manual... -
Page 6: Introduction
It can also push out configuration updates from the central monitoring system. You can configure the server application to automatically update ® ® ® ® P/N 120857-US, Manual Revision: AC Haemonetics Cell Saver Elite /Elite + User Manual... -
Page 7: Cybersecurity

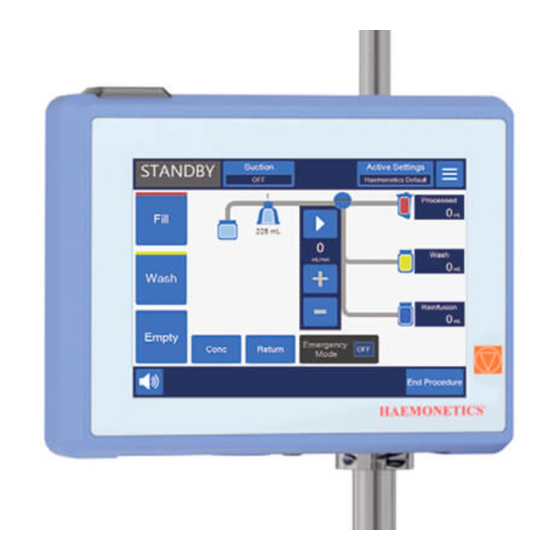

The Cell Saver Elite/Elite+ device data that is transferred is encrypted using AES encryption. Additionally, the device allows you to configure the wireless connection to utilize WPA2 Personal and WPA2 Enterprise security protocol. - Page 8 3. Barcode reader (laser aperture) 4. STOP key 5. Touch screen mount 6. USB connection 7. Ethernet connection Figure 1, Parts of the device display ® ® ® ® P/N 120857-US, Manual Revision: AC Haemonetics Cell Saver Elite /Elite + User Manual...
-
Page 9: Network Setup And Maintenance
You should mitigate risks of wireless interference according to the hospital’s Maintenance needs and SOPs. Monitor the Cell Saver Elite/Elite+ device and other devices for symptoms of interference. Interference can be caused by any equipment (Examples: ® microwaves, refrigerators, Bluetooth devices, fluorescent lights, etc.) that... - Page 10 Figure 2, Accessing the Software Download Center b. Enter your customer login credentials. Note: If you do not already have a login, contact the Haemonetics Customer Care Center to request access. c. Locate the CSEliteNetConfig Utility within the designated Cell Saver Elite+ product area.
-
Page 11: Configuring The Device
4. Print the QR code and follow the instructions in “Configuring the Device” on page 11 to use it to configure the device to connect to an approved network. Note: For assistance, contact the Haemonetics Customer Care Center by calling (800) 537-2802 or by emailing productsupport@haemonetics.com. -
Page 12: Viewing The Network Status
1. Touch (Menu). 2. Select System from the drop-down list. 3. Touch Network. The Network Status screen appears, displaying the current network status. ® ® ® ® P/N 120857-US, Manual Revision: AC Haemonetics Cell Saver Elite /Elite + User Manual... -
Page 13: Tested Network Configuration
The following list describes the network configuration used to test the effects of Configuration external radio frequency (RF) noise and coexistence on the Haemonetics device data transmission in the network, using the Haemonetics HaemoCommunicator software as the data collection application. The list is for reference only and is not intended to be a list of required equipment. - Page 14 Password protected network access Security mode: WPA2 Encryption: AES 4. Transmitting device: Wireless conversion of the Haemonetics device. 5. Software application for data collection: Haemonetics HaemoCommunicator software application. If you use a different configuration than the one described above or use a...
- Page 15 Connectivity Ensure the wireless network router(s) provide enough capacity to connect to the server, Haemonetics devices, and other devices that may run at the same time. Each of these will use a connection on the router. This information can usually be found in the manufacturer’s user manual or labeling.
-
Page 16: Exporting Procedure Data
Connectivity Exporting Procedure Data If the Cell Saver Elite/Elite+ device is connected to the server application, it automatically sends procedure records at the end of each procedure, as long as all mandatory data has been collected. (See “Mandatory Record Fields” on page 17 for more information.) The device must receive an acknowledgment... -
Page 17: Mandatory Record Fields
® ® ® ® Haemonetics Cell Saver Elite /Elite + User Manual P/N 120857-US, Manual Revision: AC... -
Page 18: Setting Mandatory Fields
(Accept). 5. Touch Options. 6. Select a desired field. 7. Touch (Up) or (Down) to change the field to “Mandatory.” 8. Touch Done. ® ® ® ® P/N 120857-US, Manual Revision: AC Haemonetics Cell Saver Elite /Elite + User Manual... -
Page 19: Event Messages
Connectivity Event Messages The following are possible event messages related to the connectivity feature that may occur on the Cell Saver Elite/Elite+ device. Refer to the user manual for a comprehensive list of event messages. Table 2, Event Messages ID #...
