OPERATING INSTRUCTIONS
series
These instructions cover the models of ROBAND
variances between models, the installation, operation, care and maintenance procedure is the
same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
DONUT FRYERS
Models: FD10 Version 4
Includes
International models: ...-G
Special Features:
Thermal Safety Cut Out
Stainless Steel Donut Lifter
Ultra-Durable Stainless Steel Elements
Advanced Control Safety System
Easy Clean Drain Tray
®
Donut Fryers only. Although there are slight
21/01/2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROBAND FD10 Series
Summary of Contents for ROBAND FD10 Series
-

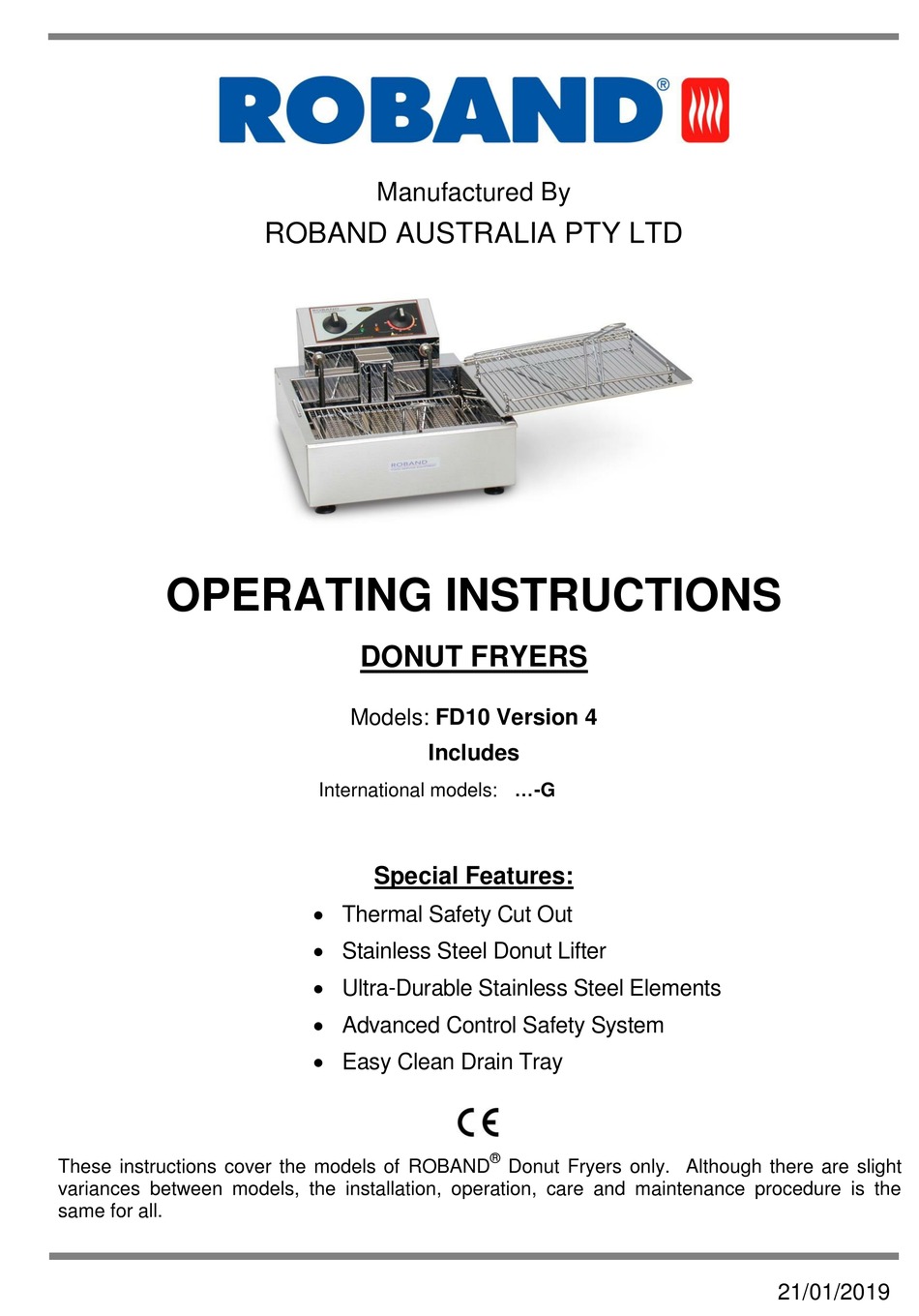

Page 1: Operating Instructions
Advanced Control Safety System Easy Clean Drain Tray series ® These instructions cover the models of ROBAND Donut Fryers only. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all. - Page 2 ® ® ®...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 GENERAL SAFETY ....................5 GENERAL FIRE SAFETY ..................5 SAFETY FEATURES ....................6 CLEANING, CARE & MAINTENANCE ..............7 TROUBLESHOOTING ..................... 8 SPECIFICATIONS .................... -
Page 4: Introduction
Grill Station, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. These Donut Fryers are for use with oil. The machines are not designed for use with water for such task as cooking pasta, and any such misuse will void the warranty. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of these Donut Fryers should include: One Fryer Two Donut Lifters Two Cooking Racks This manual... -
Page 6: Installation
INSTALLATION Remove all the packaging materials and tape, as well as any protective plastic from the machine. Clean off any glue residue left over from the protective plastic using methylated spirit. Place the fryer on a firm, level surface in the required position. The feet can be adjusted for an uneven surface. -
Page 7: Operation
OPERATION Place the tank in the fryer. Place the control box in position and the element guard over the element in the bottom of the tank. Fill the tank with the required volume of oil. The specifications at the end of these instructions indicate the correct volume of oil. -
Page 8: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 9: Safety Features
SAFETY FEATURES The FD10 has a thermal overload fitted. The thermal overload’s function is to cut power to the fryer when the oil temperature reaches 238°C, thus preventing the oil reaching flash point temperature. If the thermal overload trips, it is easily reset by pushing the small red reset button on the rear of the control box after the oil has cooled down by at least 12°C. -
Page 10: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your fryer. The Fryer should be cleaned out daily, or more often if necessary. Ensure the power is off and the fryer is cool before attempting to drain the cooking oil or clean any part of the machine. -
Page 11: Troubleshooting
TROUBLESHOOTING If the fryer does not function check the following points before calling for service. The control box is plugged in correctly and the power switched on. The power points are not faulty. The temperature has been set correctly and the overloads have not tripped. To reset a tripped temperature overload switch, press the red button behind the control box as indicated in the picture below. -
Page 12: Specifications
SPECIFICATIONS Model FD10 & FD10-UK Power Source 220-240 Volts AC Power Frequency 50-60Hz Power Consumption 2100-2500 Watts Amps Width mm Height mm Depth mm Weight kg Constant research and development may necessitate specification changes at any time. Page: 9... -
Page 13: Circuit Diagram
CIRCUIT DIAGRAM MODELS: FD10 – VERSION 3 NOTE: Tilt switch for UK models ONLY. TC – Thermal cut-out TS – Thermostat NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should a person not suitably qualified attempt repairs to any electrical equipment Page: 10... -
Page 14: Parts List
PARTS LIST F15 PARTS LIST PART NO DESCRIPTION PART NO DESCRIPTION Pilot Light & O-ring 10mm ES0264 PC0060 Cord Clamp - 10A Amber Terminal Block - EC0031 Porcelain/Steatite "1602", PC0011 Food Set & Nuts L & N marked, 10mm sq. Pilot Light &... -
Page 15: Appendix A
If you are unable to locate a circuit without an RCD please contact your supplier or contact Roband or our Agent for alternative suggestions. Page: 12... - Page 16 NOTES Page: 13...
- Page 17 NOTES Page: 14...
- Page 18 NOTES Page: 15...
-
Page 19: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 20 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
