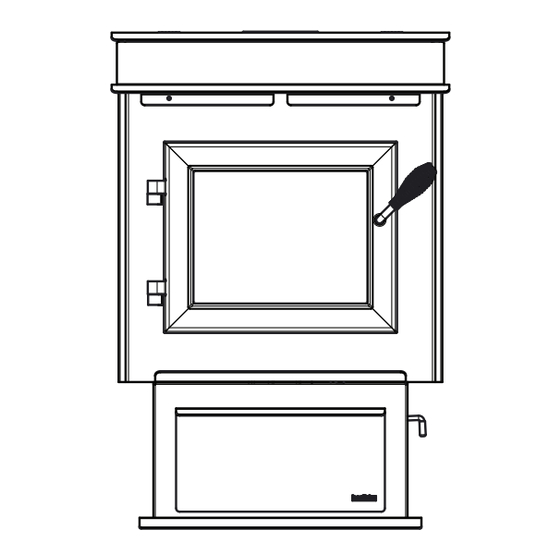

Pellet burning appliance

Advertisement

INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
PELLET BURNING APPLIANCE
MODEL(S):
PS50-C
CAUTION
Tested and approved for wood pellets, Burning of any
other type of fuel voids your warranty.
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
If the information in these instructions is
not followed exactly, a fire could result
causing property damage, personal injury,
or death.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
Do not over fire - If appliance or chimney connector
glows, you are over firing. Over firing will void
your warranty.
Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
Hot glass will cause burns.
Do not touch glass until it is cooled
NEVER allow children to touch glass
Keep children away
CAREFULLY SUPERVISE children in same room
as fireplace.
Alert children and adults to hazards of
high temperatures
High temperatures may ignite clothing or other
flammable materials.
Keep clothing, furniture, draperies and other
flammable materials away.
Check building codes prior to installation.
Installation MUST comply with local, regional, state
and national codes and regulations.
Consult local building, fire officials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
NOTE: To obtain a French translation of this
manual, please contact your dealer or visit
www.heatilatorecochoice.com
REMARQUE : Pour obtenir une traduction française
de ce manuel, s'il vous plaît
contacter votre revendeur ou visitez
www.heatilatorecochoice.com
7059-800B
WARNING
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
CAUTION
June 18, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heatilator Eco Choice PS50-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hearth & Home Heatilator Eco Choice PS50-C

  • Page 1 Installation Manual Installation & Appliance Set-Up INSTALLER: Leave this manual with party responsible for use and operation. OWNER: Retain this manual for future reference. NOTICE: DO NOT DISCARD THIS MANUAL WARNING If the information in these instructions is not followed exactly, a fire could result causing property damage, personal injury, PELLET BURNING APPLIANCE or death.
  • Page 2: Table Of Contents

    HEATILATOR ECO-CHOICE PS50 Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. •...
  • Page 3: Important Safety Information

    HEATILATOR ECO-CHOICE PS50 Important Safety Information A. Appliance Certification B. BTU & Efficiency Specifications Emissions Report #: 0061PS085E Model PS50-C Emission Laboratory: OMNI Test Laboratories, Inc. Laboratory Intertek EPA Certified Safety 1.0 grams/hour 4001508 Emissions: Report No. *LHV Tested Efficiency: 69.5% Solid Fuel Room Appliance/Pellet Fuel Type BurningType...
  • Page 4: Glass Specifications

    HEATILATOR ECO-CHOICE PS50 C. Glass Specifications J. California - Prop65 This appliance is equipped with 5mm ceramic glass. WARNING Replace glass only with 5mm ceramic glass. Please contact your dealer for replacement glass. This product and the fuels used to operate this product (wood), and the products of combustion of such fuels, can expose you to chemicals including carbon black, which is known to the State of D.
  • Page 5: Getting Started

    HEATILATOR ECO-CHOICE PS50 Install Guide Getting Started A. Design, Installation & Location Considerations Since pellet exhaust can contain ash, soot or sparks, you must consider the location of: 1. Appliance Location • Windows • Air Intakes NOTICE: Check building codes prior to installation. •...
  • Page 6: Thermostat Wall Control Location

    HEATILATOR ECO-CHOICE PS50 B. Thermostat Wall Control Location WARNING The thermostat wall control’s location will have some affect on the appliance’s operation. • Maximum wire length from appliance is 100 feet Risk of Fire! (30.48m) continuous non-spliced wire. Recommended • Damaged parts could impair safe 20 gauge wire, solid copper.
  • Page 7: Install Checklist

    HEATILATOR ECO-CHOICE PS50 E. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual. __________________________________________________________________________ Customer: ______________________________________________________________________ Date Installed: _______________________________________________________________________ Lot/Address:...
  • Page 8: Dimensions And Clearances

    HEATILATOR ECO-CHOICE PS50 Dimensions and Clearances A. Appliance Dimensions 24-1/4 24-1/4 (616) (616) 9-3/4 2-3/8 (248) (60) 35-3/4 (908) 26-7/16 (672) (813) 28-5/16 (719) 20-1/4 (514) Figure 8.1 - Top View Figure 8.2- Front View 4-3/8 (111) 3-1/8 (79) 31-5/8 (803) 29-5/8 (752)
  • Page 9: Clearances To Combustibles (Ul And Ulc)

    HEATILATOR ECO-CHOICE PS50 B. Clearances to Combustibles (UL and ULC) Installations with 3 to 3 inch Top Vent Adapter Straight Back Against Wall Inches Millimeters Vertical Installation Inches Millimeters Back Wall to Appliance Back Wall to Adapter Side Wall to Appliance Side Wall to Appliance Back Wall to Appliance 6-1/4...
  • Page 10: Hearth Pad Requirements

    HEATILATOR ECO-CHOICE PS50 C. Hearth Pad Requirements (UL and ULC) EMBER PROTECTION: It is necessary to install a Type I USA INSTALLATIONS: A non-combustible floor protection floor protector. is recommended extending beneath the flue pipe when installed with horizontal venting or under the Top Vent Floor protector must be non-combustible material, Adapter with vertical installation.
  • Page 11: Alcove

    HEATILATOR ECO-CHOICE PS50 D. Alcove Installations Into Alcove All minimums listed are to a combustible surface. Model: Minimum Maximum PS50-C Inches Millimeters Inches Millimeters A Height 56-3/4 1441 B Width 1346 C Depth 1219 Side Wall E Top Mantel Depth Mantel NOTE: •...
  • Page 12: Vent Information

    HEATILATOR ECO-CHOICE PS50 Vent Information A. Venting Termination Minimum Requirements Service Électrique Angle Intérieur FERMÉ FERMÉ OUVERT ATTACHÉ ATTACHÉ OUVERT J ou K Extrémité du terminal Arrivée d'air Zone à accès limité Compteur à gaz Tous les dégagements minimum correspondent à une installation avec un ensemble de prise d’air extérieur (OAK), sauf indication contraire fi gurant au tableau ci-dessous.
  • Page 13: Avoiding Smoke And Odors

    HEATILATOR ECO-CHOICE PS50 B. Avoiding Smoke and Odors Vent Configurations When installing a pellet appliance with a horizontal vent Negative Pressure, Shut-Down and Electrical Power configuration the frequency of power outages should be Failure considered: To reduce the probability of back-drafting or burn-back •...
  • Page 14: Negative Pressure

    HEATILATOR ECO-CHOICE PS50 C. Negative Pressure NOTICE Negative pressure results from the imbalance of air available for the appliance to operate properly. It can be Hearth & Home Technologies assumes no responsibility strongest in lower levels of the house. for the improper performance of the chimney system caused by: Causes include: •...
  • Page 15: Equivalent Feet Of Pipe

    HEATILATOR ECO-CHOICE PS50 F. Equivalent Feet of Pipe WARNING The table below can help you calculate the equivalent feet of pipe which is a method used to determine pellet vent Vent surfaces get HOT, can cause burns size (Figure 15.1). if touched.
  • Page 16: Venting Systems

    HEATILATOR ECO-CHOICE PS50 Venting Systems A. Through The Wall NOTE: In Canada, where passage through a wall or Horizontal termination cap must be a minimum of 6 partition of combustible construction is desired, inches. (152mm) from the wall. Approved for mobile home the installation shall conform to CAN/CSA-B365 installations.
  • Page 17: Vertical Into Existing Class A Chimney

    HEATILATOR ECO-CHOICE PS50 B. Vertical into Existing Class A Chimney C. Vertical - Interior - Typical Installation Rain Cap PREFERRED METHOD #1 Rain Cap Flashing 12 in. (305mm) Minimum 12 in. Flashing (305mm) Firestop Minimum 6 in. (152mm) Class A Chimney Connector Firestop Adapter...
  • Page 18: Masonry

    HEATILATOR ECO-CHOICE PS50 WARNING Fire Risk Inspection of Chimney: • Masonry chimney must be in good condition. • Meets minimum standard of NFPA 211 • Factory-built chimney must be a minimum 6 inch (152mm) UL103 HT. E. Masonry Fireclay flue Concrete Cap Liner with Airspace Flashing...
  • Page 19: Appliance Set-Up

    HEATILATOR ECO-CHOICE PS50 Appliance Set-Up Phillips Head screw driver; wire cutters; and hole saw or CAUTION jig saw. Shock hazard. 1. Measure distance from floor to air vent opening in • Do NOT remove grounding prong appliance and mark location on wall. from plug.
  • Page 20: Top Vent Adapter Installation

    HEATILATOR ECO-CHOICE PS50 B. Top Vent Adapter Installation D. Thermostat Installation 1. A low voltage thermostat is required to operate this 3 to 3 inch Top Vent Adapter pellet appliance. You may use the included wall mount 3 to 6 inch Top Vent Offset Adapter thermostat (Figure 20.4) or purchase an optional programmable thermostat or remote control.
  • Page 21: Mobile Home Installation

    HEATILATOR ECO-CHOICE PS50 Mobile Home Installation You must use a Quadra-Fire Outside Air Kit for CAUTION installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE 1. An outside air inlet must be provided for the HOME FLOOR, WALL AND CEILING/ROOF MUST BE combustion air and must remain clear of leaves, debris, MAINTAINED ice and/or snow.
  • Page 22: Reference Materials

    HEATILATOR ECO-CHOICE PS50 Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service 7059-800B June 18, 2019...
  • Page 23: Accessory List

    HEATILATOR ECO-CHOICE PS50 B. Accessory List PS50-C Service Parts Beginning Manufacturing Date: Mar 2019 Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Stocked Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor.
  • Page 24 CONTACT INFORMATION Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Heatilator dealer with any questions or concerns. For the number of your nearest Heatilator dealer log onto www.heatilatorecochoice.com CAUTION DO NOT DISCARD THIS MANUAL Read, understand and Leave this manual with •...
