Swisher Z-MAX ZT2350A Owner's Manual

23 hp – 50” cut zero turn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

ZT2350A
ZT2350A
ZT2350A
23 HP – 50" CUT
CELEBRATING OVER 60 YEARS OF INNOVATION
1945 - 2007
1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 64093
Made In The
PHONE 660-747-8183 FAX 660-747-8650
USA
Manufacturing quality lawn care equipment since 1945

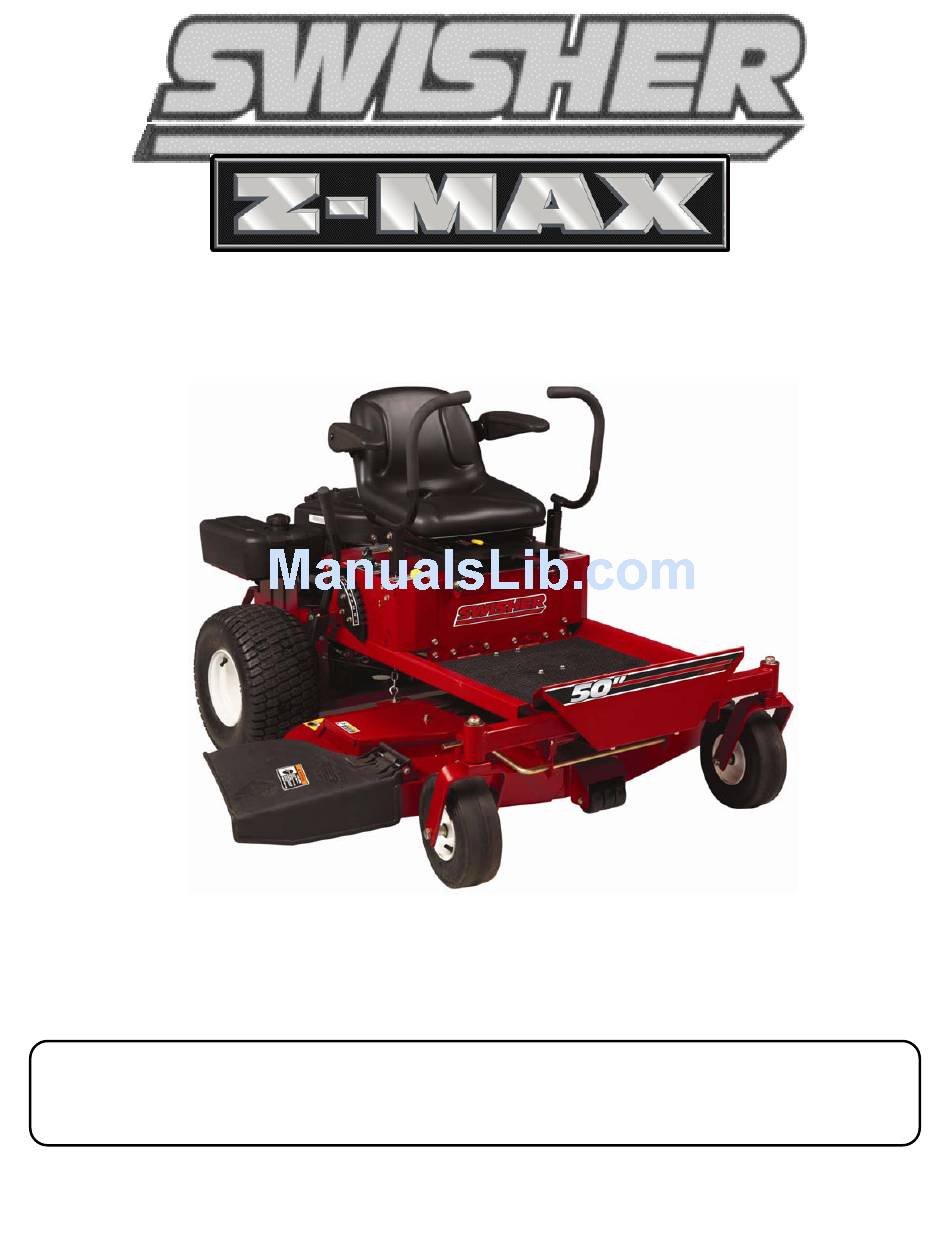

OWNER'S MANUAL
STARTING SERIAL # L506-017001
12890
Rev. 07-191

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-MAX ZT2350A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swisher Z-MAX ZT2350A

Summary of Contents for Swisher Z-MAX ZT2350A

  • Page 1 ZT2350A ZT2350A ZT2350A 23 HP – 50” CUT CELEBRATING OVER 60 YEARS OF INNOVATION 1945 - 2007 1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 64093 Made In The PHONE 660-747-8183 FAX 660-747-8650 Manufacturing quality lawn care equipment since 1945 OWNER’S MANUAL...

  • Page 2: Limited Warranty

    Should you have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed.

  • Page 3: Table Of Contents

    Grass Height of Cut…………… 19 Controls………...……..……… 20 SERVICE & ADJUSTMENTS Adjusting Deck Height………… 21 Deck Level…………………… 21 Deck Belt Replacement………22 Hydro Belt Replacement……… 23 Seat Adjustment………………24 Parking Brakes………………… 25 WIRING SCHEMATIC………… PARTS BREAKDOWN……… TROUBLESHOOTING……… MOWER IDENTIFICATION… REPLACEMENT PARTS…… MAINTENANCE LOG………… SWISHER HISTORY…………...

  • Page 4: Introduction

    Congratulations Thank you for purchasing a Swisher Zero Turn mower. This machine is built for the greatest efficiency and rapid mowing of large areas. Conveniently located controls and dual commercial grade hydrostatic transmissions regulated by steering levers, contribute to the machine’s performance.

  • Page 5: Uncrating & Assembly

    Uncrating & Assembly TOOLS REQUIRED: 2 - ½” Wrenches or ½” Socket with drive ratchet Tire pressure gauge Nail bar or claw hammer Wire snips To Remove The Mower From The Crate Dispose of top and side panels of the crate. Remove loose parts and packing material Cut any banding or strapping that may be holding the mower to the crate.

  • Page 6: Symbols & Decals

    SYMBOLS & DECALS OD45- Warning Decal Swisher Flag U.S.A.– OD39 Notice Do Not Alter Wiring Decal– OD74 Flying Debris Decal – OD43 Operator Must Be Seated Decal– OD73 Triangle Danger Decal – OD55 No Step Decal – OD11...
  • Page 7 SYMBOLS & DECALS cont. Key/PTO Decal - 10273 Hydro Release - 10280 Throttle/Choke Decal - 10271 Danger/Warning Decal - 10276...

  • Page 8: Safety Instructions

    These instructions are for your safety. Read them carefully. This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. General Use Read all instructions in this operator’s manual and on the machine before starting it.
  • Page 9 SAFETY INSTRUCTIONS General Use Continued Always look around before and during reversing maneuvers. Slow down before turning. Shut down the mower deck when not mowing. Be careful when rounding fixed objects, so that the blades do not hit them. Only operate the machine in daylight or other well-lit conditions.

  • Page 10: Slope Operation

    SAFETY INSTRUCTIONS Slope Operation Remove obstacles such as stones, tree branches, etc. Mow up and down, not side to side. Never drive the rider on terrain that slopes more than 10 degrees. Avoid starting or stopping on a slope. If the tires begin to slip, shut down the blades and drive slowly down the slope.

  • Page 11: Specifications

    SPECIFICATIONS GASOLINE CAPACITY AND TYPE OIL TYPE (SPI-SF-SJ): SPARK PLUG GROUND SPEED TIRE SIZE TIRE PRESSURE BATTERY HYDRO Bolt Torque BLADE BOLT TORQUE CUTTING HEIGHT CUTTING WIDTH PARKING BRAKE FRONT AXLE SEAT TRANSMISSION DECK LIFT UNIT MEASUREMENTS DUAL 2.0 GAL TANKS UNLEADED REGULAR SEE ENGINE MANUAL SEE ENGINE MANUAL...

  • Page 12: Customer Responsibility

    CUSTOMER RESPONSIBILITIES Operator Presence System Be sure the operator presence and interlock systems are working properly. If your mower does not function as described, repair the problem immediately. The engine should not start unless the parking brake is engaged, the PTO (Blade Engagement –...

  • Page 13: Blade Maintenance

    CUSTOMER RESPONSIBILITIES Blade Maintenance CAUTION Stop engine and remove heavy, thick gloves when holding onto blade. Avoid the sharp edge of the blade. For best , mower blades must be kept sharp. Replace bent or damage blades. results Safely raise front of mower. SEE WARNING Hold or block blade from turning.

  • Page 14: V-Belts

    CUSTOMER RESPONSIBILITIES V-Belts Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. Replace belts if they begin to slip from wear. SEE SPECIFICATION for belt part numbers and SERVICE section of this manual for instructions on how to replace the belt.

  • Page 15: Maintenance Schedule

    CUSTOMER RESPONSIBILITIES Before Each Check Brake Operation Check Tire Pressure Check Operator Presence Parking Brake Check for Loose Fasteners Sharpen/Replace Mower Blades Check Battery Clean Battery & Terminals Check Belts Check Engine Oil Change Engine Oil w/ filter Change Engine Oil w/o filter Replace Oil Filter Clean Air Filter...

  • Page 16: Operation

    FEATURES Throttle Control – Used to control Engine Speed Hour Meter – Indicates hours of operation Choke Control – Used when starting a cold engine PTO Switch – Used to engage or disengage the deck blades Ignition Switch – Used to start or stop the engine Deck Lift Handle –...
  • Page 17 FEATURES Throttle Control – Used to control Engine Speed Hour Meter – Indicates hours of operation Choke Control – Used when starting a cold engine PTO Switch – Used to engage or disengage the deck blades Ignition Switch – Used to start or stop the engine Deck Lift Handle –...
  • Page 18 FEATURES Left Control Panel Throttle Control – Used to control Engine Speed Hour Meter – Indicates hours of operation Choke Control – Used when starting a cold engine PTO Switch – Used to engage or disengage the deck blades Ignition Switch – Used to start or stop the engine Deck Lift Handle –...

  • Page 19: Starting

    Starting Operator must be sitting in the seat. Control handles must be in the neutral (outward) position. Parking Brake on. PTO must be in the disengage position (pushed down). Set choke (if needed), turn key and release as soon as engine starts. Adjust throttle to half and shut choke off.

  • Page 20: Controls

    Controls Be familiar with all controls, their functions and how to operate them before starting the machine. Motion control levers on each side of the console control the direction of movement. SEE FIGURE BELOW Neutral Position 90 Degree Right Turn 360 Degree Right Turn Note: The pressure required to operate the mower is very slight OPERATION...

  • Page 21: Adjusting The Cutting Height

    SERVICE & ADJUSTMENTS Adjusting The Cutting Height Push out on the Deck Lift Handle and raise or lower the deck to the desired position. Position 1 is the lowest setting and Position 8 is the highest position The cutting range is from approximately 1 ½” to approximately 5” Deck Leveling TOOLS REQUIRED: 2 - ½”...

  • Page 22: Front Of Unit

    SERVICE & ADJUSTMENTS Deck Belt Routing & Replacement Removal Disconnect spark plug wire Apply parking brake Lower the deck to its lowest position Remove the belt covers Disconnect tension idler Roll the belt over the top of the deck pulleys Remove belt For replacement belt part number refer to Replacement Parts Quick Reference Chart in this manual...

  • Page 23: Hydro Belt Replacement

    SERVICE & ADJUSTMENTS Hydro Belt Routing & Replacement Removal Disconnect spark plug wire Apply parking brake Disconnect wiring from electric clutch Remove clutch stop weldment (9973TK) Remove t he engine to deck belt Disconnect idler spring Disconnect tension idler Remove belt from the engine pulley and from the Hydro pulleys For replacement belt part number refer to Replacement Parts Quick Reference Chart in this manual...

  • Page 24: Seat Adjustment

    Travel Reduction Adjustment (Ref. Page 29) To improve the tracking of the Swisher ZT2350 the speed of one of the rear wheels needs to be decreased. If the ZT2350 pulls to the right the left wheel will need to decrease speed and if pulling to the left the right wheel will need to decrease speed.

  • Page 25: Parking Brakes

    Parking Brakes The Swisher ZT2350A is equipped with a Parking Brake system activated by pulling the brake knob (10) up. Adjustment for the system is located on the ends of the brake weldment rod (18). Raise the rear wheel off the ground.

  • Page 26: Wiring Harness

    WIRING HARNESS WARNING When it is necessary to raise the mower for any repair or service, use jackstands to provide adequate support. DO NOT rely on hydraulic or mechanical jacks...

  • Page 27: Parts Breakdown

    Item # Description Frame Pan Lift Support Plate (right) Lift Support Plate (left) Lock Plate Bolt - Self Tapping, 5/16-18 9" X 1.25" Steering Linkage Txt Blk Spacer 5/16-18 X 1 1/4 Serrated Flange Bolt Linkage Tab 5/16-18 Serrated Flange Nut Solenoid Bracket Painted SEE DETAILS PARTS BREAKDOWN...

  • Page 28: Engine Assembly

    Item # Description 23 HP B&S Engine 5/16-18 Serrated Flange Nut Spacer Engine Pulley Motor Pulley 3.25" 1/4 X 1/2 Key Stock Engine Pulley Spacer Short .687 Electric Clutch Washer Belleville Engine Pulley 7/16-20 X 3.25 HCF GR5 ZP 5/16-18 X 1 1/4 Serrated Flange Bolt NB253 Oil Drain Valve Oil Drain Valve Cap Not Shown...
  • Page 29 Item # Description Deck - Lift Linkage Assembly 5/16-18 Serrated Flange Nut Bolt - Carriage 5/16-18 X 3/4 GR5 ZY Bolt - 5/16-18 X 1 1/4 HCC GR5 ZY Washer - SAE 5/16 ZY Bushing - Latch Pin 5/16-18 Nyloc Nut Strap - Linkage, Painted Tension Bracket 5/16-18 X 3 1/2 eye bolt...
  • Page 30 Item # Description Deck - 50" Painted; ZTR 5/16-18 x 3/4 Serr flange bolt Cover - Pulley, Left Side 50"; ZTR Cover - Pulley, 50"; ZTR 3/8 SAE washer 3/8-16 nyloc nut Anti-scalp roller 3/8 ID 3/8-16 X 4 Carriage Bolt Deck Hanger 5/16-18 serrated flange nut Chute mount...
  • Page 31 PARTS BREAKDOWN Item # Description Hydro Pan Weldment Eaton Hydro w/ Resv & Tank Eaton Hydro w/ Resv & Tank & Ext Tire/Wheel - 18 X 9.50-8 Wheel Hub Assembly Screw - 3/8 - 16 Rolok 1.5 x .761 x .098 x .134 Belv washer 5/64 x 3/4 cotter pin Wheel Hub Lug Nut 1/2-20 Support - Hydro...
  • Page 32 Center Driver PARTS BREAKDOWN 3/4-16 Nut Belleville Washer Pulley 4 1/2" Spacer 3/4 ID X 1 1/4 OD 18 GA Washer Blade Driver - Assy, 5.75" Shaft Blade Driver - Assy, 4.25" Shaft 3/4 ID X 1 3/4 OD Flat Washer Blade Mount Plate 3/8-24 Two Way Lock Nut Blade - Mulching 17.5"...
  • Page 33 Item # Description Seat Base Control Panel Hour Meter Throttle Control 35" Handle Pivot 1" Dir. Handle Weldment, Right Txt Blk 5/16-18 X 1 Serrated Flange GR5 Bolt Storage Compartment 5.5" Neutral Bracket Txt Blk Tapered Spring Steering Linkage Control Arm 3/8-16 X 2 1/4 GR5 Bolt 3/8-16 GR2 3/8-16 Jam Nut...

  • Page 34: Troubleshooting

    PROBLEM Out of fuel Engine not “choked” properly Engine Will Engine flooded Not Start Bad spark plug Dirty air filter Dirty fuel filter Water in fuel Loose or damaged wiring Carburetor out of adjustment Engine valves out of adjustment Extreme cold conditions Fuel shut off valves closed Bad spark plug Engine Hard...
  • Page 35 TROUBLESHOOTING Continued PROBLEM Cutting too much grass/ too fast Loss of “Choke” position Buildup of grass, leaves and trash under Power deck. Dirty air filter Low oil level/dirty oil Faulty spark plug Dirty fuel filter Stale or dirty fuel Water in fuel Spark plug wire loose Dirty engine air screen/fins Dirty/clogged muffler...
  • Page 36 TROUBLESHOOTING Continued PROBLEM Worn, bent or loose blade Poor cut - Mower deck not level uneven Buildup of grass, leaves and trash under deck. Bent deck Faulty Blade driver assembly Bad battery Battery will Poor cable connections not charge Faulty solenoid Bypass linkages in the bypass position Loss of drive Hydro belt worn, damaged, or broken...

  • Page 37: Mower Identification

    The model number for the engine will be found on the top of the blower fan housing. All mower parts listed herein may be ordered directly from Swisher Mower & Machine Co. Inc. or your nearest Swisher dealer. All engine parts may be ordered from the nearest dealer of the engine supplied with your mower.
  • Page 38 Outdoor Power Equipment, must be designed, built and equipped to meet the State’s stringent anti-smog standards. Swisher Mower must warrant the EECS on your Power Equipment, for the period of time listed below provided there has been no abuse, neglect, or improper maintenance. For model year 2006 the EECS on your mower includes the liquid fuel lines, fuel line connectors, and fuel line clamps.

  • Page 39: Unauthorized Replacement Parts

    Replacement Parts Swisher Part # 12777 AS069 6046 3604 12881 3295 10263 9018 9058 CAUTION Use extreme care when working on machinery. Before performing any maintenance, turn off engine, allow the unit to cool & remove the key. Disconnect spark plug wire.

  • Page 40: Swisher History

    SWISHER HISTORY Back before electricity came to rural Missouri Max Swisher was producing lawn mowers from his mother’s chicken house. Max never liked to mow grass. He installed a gearbox on his family’s lawn mower creating a self-propelled unit. By tying one end of a rope to the mower and the other end to a tree in the center of the yard the mower circled the tree, shortening the rope and guiding the mower in concentric circles.
