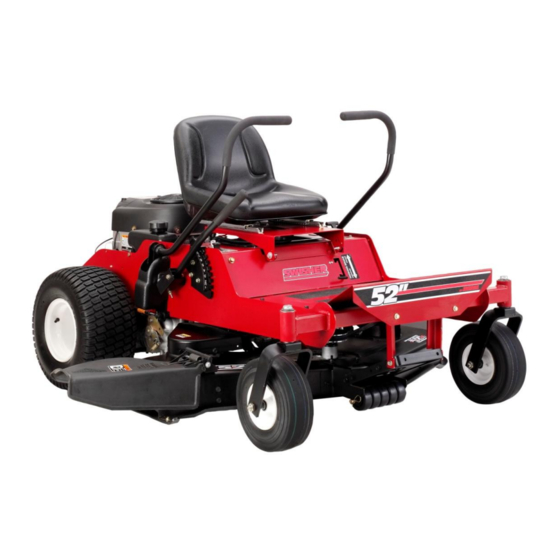

Swisher ZT2452A Owner's Manual

24 hp - 52" cut
Hide thumbs Also See for ZT2452A:
Table of Contents

Advertisement

Quick Links

See also: Repair Manual

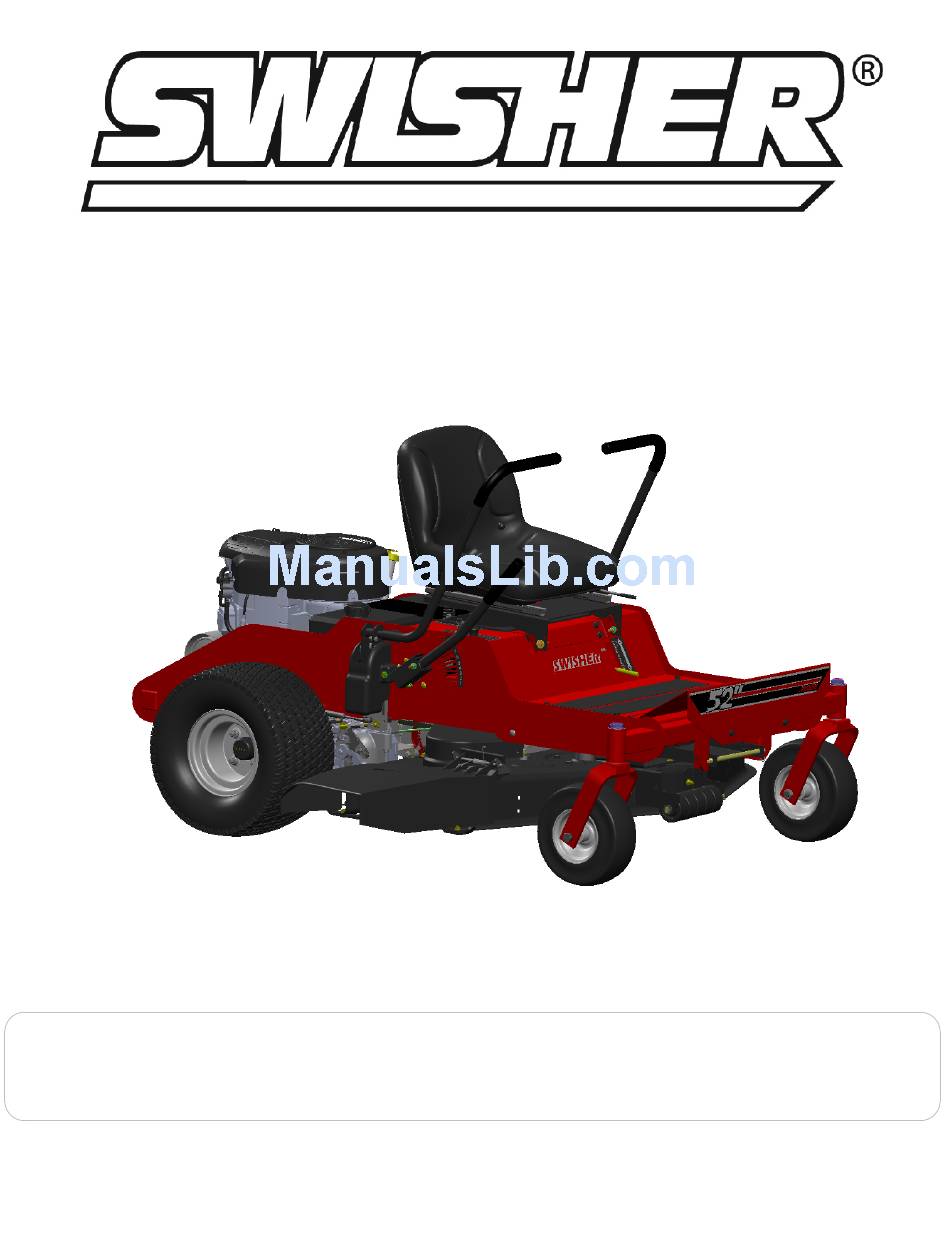

ZT2452A
24 HP - 52" CUT
MADE IN THE
USA
CELEBRATING 65 YEARS OF INNOVATION
SINCE 1945
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
PHONE: (660) 747-8183 FAX: (660) 747-8650
MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945
OWNER'S MANUAL
STARTING SERIAL # L110-006001
17469
REV. 10-088

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZT2452A and is the answer not in the manual?

Questions and answers

Related Manuals for Swisher ZT2452A

Summary of Contents for Swisher ZT2452A

  • Page 1 ZT2452A 24 HP - 52" CUT MADE IN THE CELEBRATING 65 YEARS OF INNOVATION SINCE 1945 1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093 PHONE: (660) 747-8183 FAX: (660) 747-8650 MANUFACTURING QUALITY LAWN CARE EQUIPMENT SINCE 1945 OWNER'S MANUAL STARTING SERIAL # L110-006001 17469 REV.

  • Page 2: Limited Warranty

    This warranty does not apply to any product of Swisher that has been subject to alteration, misuse, abuse, improper assembly or installation, shipping damage, or to normal wear of the product.

  • Page 3: Table Of Contents

    Seat Adjustment.......21 ......10-13 Travel Adjustment....21 Operator Presence....10 Tires.........10 WIRING SCHEMATIC ....22-23 Blade Maintenance....10 PARTS BREAKDOWN ....24-35 Battery.........10-11 TROUBLESHOOTING ....36-37 V-Belts........12 MOWER IDENTIFICATION ....38 Engine........12 WARRANTY RIGHTS ......39 Overall Unit Care......12 SWISHER HISTORY ......40 Transporting Safety....12 Specifications......12 Maintenance......13 17469 REV. 10-088...

  • Page 4: Introduction

    INTRODUCTION CONGRATULATIONS! Thank you for purchasing a Swisher Zero Turn mower. This machine is built for the greatest transmissions regulated by steering levers, contribute to the machine’s performance. This manual is a valuable document. Following the instructions for use, service, maintenance, etc.

  • Page 5: Uncrating & Assembly

    INTRODUCTION UNCRATING AND ASSEMBLY Tools Required: ~2 - ½” Wrenches or ½” Socket with drive ratchet ~Tire pressure gauge ~Nail bar or claw hammer ~Wire snips To Remove The Mower From The Crate: ~Dispose of top and side panels of the crate. ~Remove loose parts and packing material.

  • Page 6: Symbols And Decals

    SYMBOLS AND DECALS 17469 REV. 10-088...

  • Page 7: Safety Instructions

    SAFETY INSTRUCTIONS These instructions are for your safety. Read them carefully. General Use ~Read all instructions in this operator’s manual and on the machine before starting it. Ensure that you understand them and then abide by them. ~Learn how to use the machine and its controls safely and learn how to stop quickly. Also learn to recognize the safety decals.

  • Page 8: Child Safety & Slope

    SAFETY INSTRUCTIONS General Use Continued… ~Always wear approved protective glasses or a full visor when assembling or driving. ~Ear Protection is recommended ~Never wear loose clothing that can get caught in moving parts. Children: ~Serious accidents may occur if you fail to be on guard for children in the area of the machine.
  • Page 9 SAFETY INSTRUCTIONS 17469 REV. 10-088...

  • Page 10: Customer Responsibility

    CUSTOMER RESPONSIBILITIES Operator Presence System ~Be sure the operator presence and interlock systems are working properly. If your mower does not function as described, repair the problem immediately. ~The engine should not start unless the parking brake is engaged, the control handels are placed in their outward positions, and the PTO (Blade Engagement –...
  • Page 11 CHARGING TIPS ~To avoid a battery explosion, never attempt to charge a frozen battery. ~Warning: Gel and AGM (Absorbed Glass Mat) batteries require a voltage-limited charger. life. ~Important: Never overcharge batteries. Excessive charging will shorten battery life. ~Prior to charging, read the manufacturer’s instructions for proper charger hook-up and use. ~Turn off charger prior to hook-up to avoid dangerous sparks.

  • Page 12: V-Belts

    CUSTOMER RESPONSIBILITIES V-Belts: Check V-belts for deterioration and wear every 50 hours of operation and replace if necessary. Replace belts if they begin to slip from wear. SEE SPECIFICATION for belt part numbers and SERVICE section of this manual for instructions on how to replace the belt.

  • Page 13: Maintenance

    CUSTOMER RESPONSIBILITIES MAINTENANCE SCHEDULE 17469 REV. 10-088...

  • Page 14: Operation

    OPERATION FEATURES (1) Throttle Control (# 4226)– Used to control Engine Speed (2) Hour Meter (#17635 / 3803) – Indicates hours of operation (3) Choke Control (# 9914)– Used when starting a cold engine (4) PTO Switch (# 3605) – Used to engage or disengage the deck blades (5) Ignition Switch (# 3623) –...

  • Page 15: Features

    OPERATION FEATURES 17469 REV. 10-088...

  • Page 16: Starting

    OPERATION Starting: ~Operator must be sitting in the seat. Control handles must be in the neutral (outward) position. PTO must be in the disengage position (pushed down) and the parking brake must be engaged. ~Set choke (if needed), turn key and release as soon as engine starts. Adjust throttle to half and shut choke off.

  • Page 17: Controls

    OPERATION Controls: ~Be familiar with all controls, their functions and how to operate them before starting the machine. ~Motion control levers on each side of the console control the direction of movement. SEE THE FIGURE BELOW 17469 REV. 10-088...

  • Page 18: Service & Adjustments

    ~Lift deck using the deck lift handle to the desired position Parking Brake: ~The Swisher ZT2452A is equipped with separate parking brake system. ~The parking brake is actuated with the lever in the front control panel of the mower frame. Up is engaged and down in disengaged.

  • Page 19: Deck Belt Replacement

    SERVICE AND ADJUSTMENTS (REFER TO THE BELT ROUTING DIAGRAMS ON THE NEXT PAGE) Deck Belt Routing & Replacement: Removal ~Apply the parking brake ~Disconnect the spark plug wire ~Lower the deck to its lowest position ~Remove the belt covers and floorboard access panel ~Disconnect tension idler ~Roll the belt over the top of the deck pulleys ~Remove belt...

  • Page 20: Belt Routings

    BELT ROUTINGS Transmission Belt 164X30 Spring Must NB660 Bolt Be In This Orientation NB579 Washer Note Small End NB181 Nut 164X30 Spring 16825TK Idler 4220 V-Belt 17320 Hydrostat 17319 Hydrostat B527 Pulley B527 Pulley 14392 Engine Pulley Rotation Mower Deck Belt 95309 Pulley 17493TK...

  • Page 21: Seat Adjustment

    There is one for each transmission. ~If the ZT2452A pulls to the right the left wheel will need to decrease speed and if pulling to the left the right wheel will need to decrease speed.

  • Page 22: Wiring Schematic

    17469 REV. 10-088...
  • Page 23 17469 REV. 10-088...

  • Page 24: Parts Breakdown

    CASTER / FRONT WHEEL EXPLODED VIEW 17469 REV. 10-088...
  • Page 25 ENGINE / CLUTCH EXPLODED VIEW 17469 REV. 10-088...
  • Page 26 KICK PLATE / ACCESS PANEL EXPLODED VIEW 17469 REV. 10-088...
  • Page 27 HYDRO CONTROLS EXPLODED VIEW - TABLE QTY REFLECTS RH & LH SIDES - ONLY THE LH SIDE IS SHOWN 17469 REV. 10-088...
  • Page 28 GAS TANK / BATTERY EXPLODED VIEW 17469 REV. 10-088...
  • Page 29 PARKING BRAKE EXPLODED VIEW LEFT HYDROSTAT RIGHT HYDROSTAT 17469 REV. 10-088...
  • Page 30 SEAT/TOOLBOX EXPLODED VIEW 17469 REV. 10-088...
  • Page 31 HYDRO RELEASE EXPLODED VIEW PULL BACK TO DISENGAGE HYDRO AND FREE ROLL PUSH TO RE-ENGAGE 17469 REV. 10-088...
  • Page 32 HYDROSTATS EXPLODED VIEW 17469 REV. 10-088...
  • Page 33 MOW DECK EXPLODED VIEW 17469 REV. 10-088...
  • Page 34 MOW DECK EXPLODED VIEW 17469 REV. 10-088...

  • Page 35: Deck Lift

    DECK LIFT EXPLODED VIEW 17469 REV. 10-088...

  • Page 36: Troubleshooting

    TROUBLESHOOTING 17469 REV. 10-088...
  • Page 37 TROUBLESHOOTING 17469 REV. 10-088...

  • Page 38: Mower Identification

    All mower parts listed herein may be ordered Swisher disclaims liability for any claims directly from Swisher or your nearest Swisher or damages, whether warranty, property dealer. damage, personal injury or death arising...

  • Page 39: Warranty Rights

    MANUFACTURER’S WARRANTY COVERAGE: For a period of two years, any evaporative emission-related part included in the list of EECS parts for your mower is defective, the part will be repaired or replaced by Swisher. OWNER’S WARRANTY RESPONSIBILITIES: As the owner of this Power Equipment, you are responsible for performance of the required maintenance listed in your owner’s manual.

  • Page 40: Swisher History

    SWISHER HISTORY Back before electricity came to rural Missouri Max Swisher was producing lawn mowers from his mother’s chicken house. Max never liked to mow grass. He installed a gearbox on his family’s lawn mower creating a self-propelled unit. By tying one end of a rope to the mower and the other end to a tree in the center of the yard the mower circled the tree, shortening the rope and guiding the mower in concentric circles.
