PEZTIO DASH CAM User Manual

PEZTIO DASH CAM User Manual

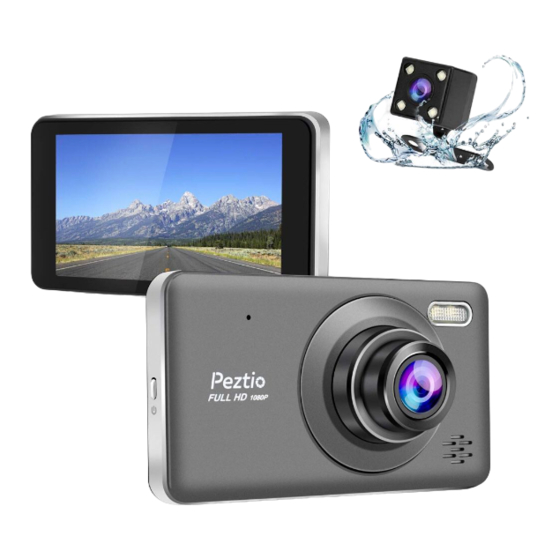

Touch screen 1080p high definition wide angle lens

Advertisement

USER MANUAL
ANY PROBLEMS, please contact us by Email.
Here is the address:
US Customers:
EU Customers:
For E-Instruction, Please Scan the Code:
DASH CAM
support-us@peztio.com
support-eu@peztio.com
TOUCH SCREEN
1080P HIGH DEFINITION WIDE ANGLE LENS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DASH CAM and is the answer not in the manual?

Questions and answers

Donna Meyer
April 13, 2025

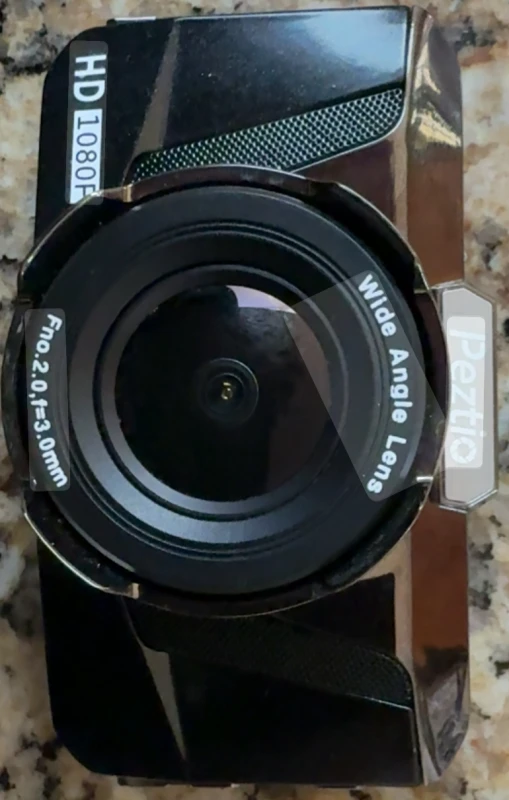

I do not know what model camera I have but I am unable to power it on and can not find a manual for it. I tried resetting it, but that did not work either.

User image 67fc018d23a22
1 comments:
Mr. Anderson
April 13, 2025

To troubleshoot a PEZTIO DASH CAM that won't power on:

1. Check Power Source: Ensure the 12-volt power source (such as the cigarette lighter socket) is working. Try plugging in another device to confirm.

2. Inspect Power Cable: Make sure the power cable is securely connected to both the dash cam and the power source. Check for damage or loose connections.

3. Try Another Power Method: If using a hardwired setup, switch to the 12-volt power adapter temporarily to test if the issue is with the hardwiring.

4. Hold Power Button: Long press the power button to turn the device on.

5. Check Fuse: If hardwired, inspect the fuse in the power cable or fuse tap for a possible blown fuse.

If the dash cam still does not power on after these steps, further diagnosis or replacement may be needed.

This answer is automatically generated

Andrew Fossum
March 8, 2025

I want to mount the camera to the dash board, not the windshield. How to I flip the orientation so it is not upside down?

1 comments:
Mr. Anderson
May 14, 2025

To change the orientation of the PEZTIO DASH CAM for dashboard mounting, ensure the lens is in the correct recording direction. If the image on the screen appears upside down, mount the dash cam on the windshield using the diagram in the instructions, as dashboard mounting may result in incorrect image orientation.

This answer is automatically generated

Michael Thoe
February 13, 2025

This product needs a cell phone to operate? A 'smart phone?' I have a Galaxy A10e phone, which I believe will NOT work! I will be receiving my dash cam today from Amazon. Before I open the package I need to know IF my camera will work with your dash cam, so to avoid wasting time, and becoming frustrated if the phone doesn't work. Thank you for your attention to this matter.

1 comments:
Mr. Anderson
February 13, 2025

The PEZTIO DASH CAM does not require a smartphone to operate. It has a touch screen interface and automatically records when powered. However, some models have Wi-Fi functionality that allows connection to a smartphone for viewing and managing recordings.

The compatibility of the Galaxy A10e with the PEZTIO DASH CAM is not explicitly mentioned. If the dash cam supports Android devices and the Galaxy A10e meets the app requirements, it is likely compatible.

This answer is automatically generated

Summary of Contents for PEZTIO DASH CAM

  • Page 1 USER MANUAL ANY PROBLEMS, please contact us by Email. Here is the address: support-us@peztio.com US Customers: support-eu@peztio.com EU Customers: For E-Instruction, Please Scan the Code: TOUCH SCREEN DASH CAM 1080P HIGH DEFINITION WIDE ANGLE LENS...
  • Page 2: Power Source

    WARNING Please keep the DASH CAM plugged into the power, plug and play it. This is a small capacity battery. It will automatically shut down after 10 seconds when the disconnect power.
  • Page 3: Warranty Card

    Files Mode: Allows you to view recorded video or photographs upon the DASH CAM IPS screen.  PACKAGE CONTENT DASH CAM SUCTION MOUNT CAR POWER CABLE REAR CAM USER MANUAL WARRANTY CARD If you find that there are missing accessories in the package, please contact our customer support email immediately.
  • Page 4: Product Structure

    PRODUCT STRUCTURE 1. IPS Touch screen 2. Power button/ Shot change button/ Screen save button 3. Rear camera interface 4. USB data interface 5. Mount connection 6. MIC 7. TF card slot 8. Reset 9. Fill light 10. Lens 11. Speaker INSTALLATION GUIDANCE ...
  • Page 5 WARNING: Please choose a good quality branded SD card between 8GB and 32GB (Class 10 or UHS type 1) and format the card within the setup menu before use. Please insert the card in the right direction. 2. Mount the front camera - Clean the front windscreen.
  • Page 6  INSTALL THE REAR CAMERA 1. Please connect the cables as shown above: - Connect the socket to the dash camera’s rear camera interface. - Connect the red cable to the positive lead of reversing lamp. 2. There are two methods to place the camera: Mode 1: Mount on the rear windscreen.
  • Page 7 Mode 2: Mount near the license plate. Package includes fixing screws to help you fix it. SETTING  MAIN INTERFACE Power on/off Long press the power button to Power on/off; in the recording mode, short press this button will enter the screen saver status. 1.
  • Page 8: Video Mode

     VIDEO MODE 1. Record time 2. Start record 3. Emergency lock button 4. Switch to camera mode 5. Back 6. Back to main Menu 7. Video setting  CAMERA MODE 1. Switch to video mode 2. Shoot photos 3. Camera mode setting ...
  • Page 9: System Setting

    1. Switch to video mode 2. Switch to camera mode 3. Emergency lock button 4. Lock/Unlock 5. Edit  SYSTEM SETTING Protection(Close/30 s/60 s/120 s) Auto-Shutdown (3/5/10 Mins) Frequency (50/60 Hz) Key Sound: (Close/Open) Language: (Japanese/French/English/Deutsch) Date & Time Fill light:(Auto/open/close) Format: (Confirm/Cancel) Default: (Confirm/Cancel) FUNCTION INTRODUCTION...
  • Page 10 Tip: This function needs to co-work with the Gravity Sensing function. This function can only be available when connected the vehicle battery. 4. Gravity Sensing There are three options in Gravity sensing: Low, Medium and High. 1) When there is a severe bump in vehicles, the video will be locked and will not be deleted by cyclic recording.
  • Page 11: Troubleshooting

    TROUBLE SHOOTING PROBLEM SOLUTION Video Image is Remove the protective lens cover, clean blurred. the lens, clean the windscreen! Micro SD card is very small and requires delicate use. Align the card with the diagram shown upon instruction and insert the card until you feel a slight spring Cannot insert resistance.
  • Page 12 Reset the DASH CAM to the default Unresolved settings within the Setup Menu and try issues. again. Should the problem persist contact us by support e-mail. ANY PROBLEMS, please contact us by Email.
