EST Install and User Guide
Appearance of the product may vary. Log in www.ecoer.com or ESS Pro App
>Files >Installation to get the latest guide.
Manufacturer reserves the right to change specifications or designs without notice.
1/28
1. Introduction--------------------------------------
2. Install your Thermostat-------------------------
3. Setup-----------------------------------------------
3.1 Time setting--------------------------------------
3.2 Working mode----------------------------------
3.3 Setup Wi-Fi----------------------------------------
3.4 Schedule set-------------------------------------
3.5 User setup-----------------------------------------
3.6 Factory set----------------------------------------
3.7 Clean screen------------------------------
3.8 Reset--------------------------------------------
4. Warranty ---------------------------------------
5. Regulatory info.---------------------------------
www.ecoer.com
3
6
8
8
9
11
14
17
20
27
27
28
28
07.2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ecoer EST01
Summary of Contents for Ecoer EST01
-
Page 1: Table Of Contents
3.8 Reset-------------------------------------------- 4. Warranty --------------------------------------- 5. Regulatory info.--------------------------------- Appearance of the product may vary. Log in www.ecoer.com or ESS Pro App >Files >Installation to get the latest guide. Manufacturer reserves the right to change specifications or designs without notice. 07.2019... - Page 2 ELECTRICAL HAZARD Can cause electrical shock or equipment damage. Disconnect power before beginning installation. EQUIPMENT DAMAGE HAZARD Compressor protection is bypassed for Ecoer condensing units. To prevent equipment damage, set compressor protection accordingly for other brand condensing units. MERCURY NOTICE If this product is replacing a control that contains mercury in a sealed tube, do not place the old control in the trash.
-
Page 3: Est01 Wi-Fi Programmable Thermostat
EST Install and User Guide 3/28 www.ecoer.com 1. Introduction Parts in the packaging box Screws and anchors Install and User Guide EST01 Wi-Fi Thermostat Mounting System Accessory for E Series Air Handlers Wiring Replacement Stickers Guide* (See the following page) - Page 4 4/28 www.ecoer.com Wiring Replacement Guide Applied Model: Ecoer EAHATN-24/36/48/60 air handler To get two-stage fan control for enhanced dehumidification, use the wiring in packaging box to replace the one already connected to CN9 terminal of indoor PCB. Manufacturer reserves the right to change specifications or designs without notice.

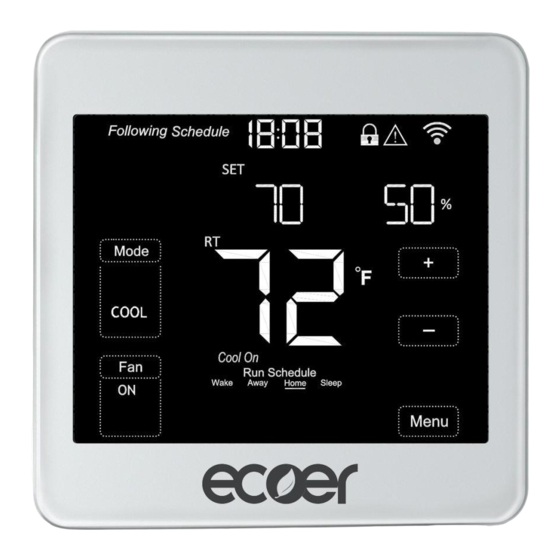

- Page 5 EST Install and User Guide 5/28 www.ecoer.com Thermostat Layout Desired temperature Indoor humidity Mode Adjust temperature Working status Menu （ON/AUTO） (Back button) Schedule Inside temperature * Wake/Away/Home/Sleep * The screen will wake up by touching the inside temperature area Mode: Select system mode OFF, COOL, AUTO, HEAT and EM HEAT.
-
Page 6: Install Your Thermostat
Look at the wires going out of the wall and take a photo for reference. Label each wire going into your old thermostat with the provided stickers. The EST01 Wi-Fi thermostat • Does not work for 120-240V systems. • Does not work with millivolt systems. - Page 7 EST Install and User Guide 7/28 www.ecoer.com Wiring Terminals in Mounting System RESERVED Connection to S: Single transformer touch screen D: Double transformers Terminal Description Common RH / RC 24 VAC power (RH and RC are already connected each other)
-
Page 8: Setup
EST Install and User Guide 8/28 www.ecoer.com 3. Setup 3.1 Time Setting Press Menu at homepage, the screen will display DATE TIME. Menu DATE TIME WORKING MODE SETUP WIFI SCHEDULE SET USER SETUP FACTORY SET CLEAN SCREEN RESET II. Press Edit, the screen displays SETUP YEAR, press + or - to change. -
Page 9: Working Mode
HOLD: Keeps the desired temperature set all the time. SCHEDULE: Follows 7-day plan (4 time periods per day) * * To activate the scheduling, it’s required to choose AUTO at thermostat homepage or on ‘Ecoer Home’ App control interface. Manufacturer reserves the right to change specifications or designs without notice. - Page 10 EST Install and User Guide 10/28 www.ecoer.com Activate 7-day Scheduling by Ecoer Home App • Select Mode to Auto • Turn ON Schedule (i.e. Choose ‘Follow Schedule’) Manufacturer reserves the right to change specifications or designs without notice. 07.2019...
-
Page 11: Setup Wi-Fi
3.3 Setup Wi-Fi Search ‘Ecoer Home' on Google Play or App Store to install the App. Register with your phone number or email, log in App to add device. Press Menu at homepage, the screen will display DATE TIME, press Next twice to SETUP WIFI. - Page 12 (see Fig.3). Touch “Help” to trouble shoot if you fail to make it online. Fig. 2 Fig. 1 Fig. 3 * The design of Ecoer Home App may subject to change. Manufacturer reserves the right to change specifications or designs without notice. 07.2019...
- Page 13 (4 periods per day) when AC/HP stops Schedule Status • ON: Follow Schedule • OFF: Hold On * The design of Ecoer Home App may subject to change. Manufacturer reserves the right to change specifications or designs without notice. 07.2019...
-
Page 14: Schedule Set
EST Install and User Guide 14/28 www.ecoer.com 3.4 SCHEDULE SET Press Menu at homepage, the screen displays DATE TIME. II. Press Next until you see SCHEDUL SET. DATE TIME Menu WORKING MODE SETUP WIFI SCHEDULE SET USER SETUP FACTORY SET... - Page 15 EST Install and User Guide 15/28 www.ecoer.com Detailed Schedule Setting from thermostat Press + or - to choose the day of the week. II. Press Next to set from the first period 06:00 of the selected day, press + or - to adjust time (15 minutes per interval).
- Page 16 EST Install and User Guide 16/28 www.ecoer.com Detailed Schedule Setting by ‘Ecoer Home’ App Click to enter scheduling. II. Click the period you want to set, then scroll start Time, Cool Temp. and Heat Temp. III. Touch “COMPLETE” to save your settings.
-
Page 17: User Setup
EST Install and User Guide 17/28 www.ecoer.com 3.5 USER SETUP Press Menu at homepage, the screen will display DATE TIME, then press Next until you see USER SETUP. Menu DATE TIME WORKING MODE SETUP WIFI SCHEDULE SET USER SETUP FACTORY SET... - Page 18 EST Install and User Guide 18/28 www.ecoer.com NOTE: Press Menu during setting will exit you directly and nothing will be saved. Manufacturer reserves the right to change specifications or designs without notice. 07.2019...
- Page 19 EST Install and User Guide 19/28 www.ecoer.com FAN CIRC Setting by Ecoer Home App NOTE: App can set FAN CIRC* when Mode is Off (i.e. AC/HP stops). * Circulate indoor air when Air Conditioner or Heat Pump stops for a long period.
-
Page 20: Factory Set
EST Install and User Guide 20/28 www.ecoer.com 3.6 FACTORY SET (Professional only) Press Menu at homepage, the screen will display DATE TIME, then press Next until you see FACTORY SET. Menu DATE TIME WORKING MODE SETUP WIFI SCHEDULE SET USER SETUP... - Page 21 ESI + E series Air Handler Cool only (G/G2) AC only + E series Air Handler Cool only (G/G2) + W2 Remarks: ESI- Ecoer Smart Inverter condensing unit * means optional connection Manufacturer reserves the right to change specifications or designs without notice. 07.2019...
- Page 22 SW1-3 ON: AC SW1-3 OFF: HP Optional EST01 Wi-Fi Thermostat Type 2 Cool Only + W2 output Ecoer variable speed air conditioner matches with gas or oil furnace. Ecoer Condensing Unit Furnace SW1-3 ON: AC SW1-3 OFF: HP Optional EST01 Wi-Fi Thermostat Manufacturer reserves the right to change specifications or designs without notice.
- Page 23 Indoor Unit Optional EST01 Wi-Fi Thermostat Type 4 Heat Only + W2 output Ecoer variable speed heat pump matches with furnace (G required) or boiler. Ecoer Condensing Unit Furnace Optional EST01 Wi-Fi Thermostat Manufacturer reserves the right to change specifications or designs without notice.
- Page 24 EST Install and User Guide 24/28 www.ecoer.com Type 6 1H/1C with constant indoor fan speed Ecoer variable speed heat pump matches with G series air handler or other brand indoor unit. Ecoer Condensing Unit Indoor Unit Optional EST01 Wi-Fi Thermostat...
- Page 25 Optional EST01 Wi-Fi Thermostat Type 10 2H/1C with constant indoor fan speed (Factory default) Ecoer variable speed heat pump matches with indoor unit for 2 stage heating Indoor Unit Ecoer Condensing Unit Optional EST01 Wi-Fi Thermostat Manufacturer reserves the right to change specifications or designs without notice.
- Page 26 EST Install and User Guide 26/28 www.ecoer.com Type 11 2H/1C with two-stage fan control (G/G2) in cooling Ecoer variable speed heat pump matches with E series air handler and electric heater (Duel-fuel). E Series Air Handler Ecoer Condensing Unit EST01 Wi-Fi Thermostat Type 12/13...
-
Page 27: Clean Screen
EST Install and User Guide 27/28 www.ecoer.com 3.7 Clean Screen Press Menu at homepage, the screen will display DATE TIME, then press Next until you see CLEAN SCREEN. Menu DATE TIME WORKING MODE SCHEDULE SET SETUP WIFI USER SETUP FACTORY SET... -
Page 28: Warranty
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Ecoer that the defect or malfunction was caused by damage which occurred while the product was in the possession of a consumer. - Page 29 EST Install and User Guide 29/28 www.ecoer.com Manufacturer reserves the right to change specifications or designs without notice. 07.2019...
- Page 30 EST Install and User Guide 30/28 www.ecoer.com © 2017-2019 ECOER INC. 3900 Jermantown Rd., Suite 150, Fairfax, VA 22030 Tel: 703-348-2538 www.ecoer.com Manufacturer reserves the right to change specifications or designs without notice. 07.2019...
