Summary of Contents for Ecoer EST02

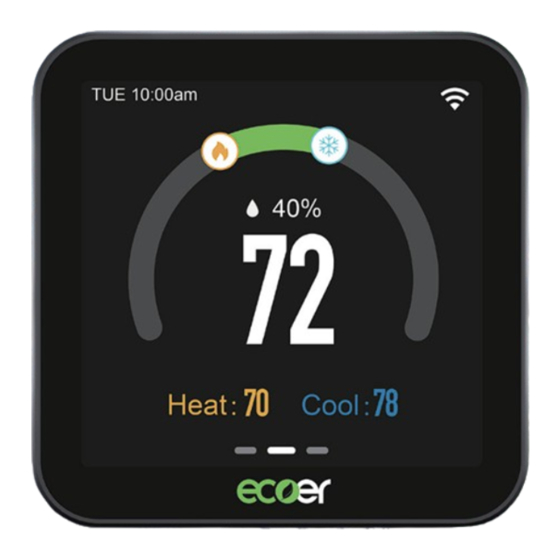

- Page 1 Smart Wi-Fi Thermostat Bright color 4.0” Touch Screen Voice Command Control 3-Year Limited Warranty Year 2.4/5G Wi-Fi Compatible 7 Day / 8 Period Programming Filter Change Alerts...
-
Page 2: Download The App
Several ways to download the Ecoer Home Plus App which helps to control remotely: Search for "Ecoer Home Plus" on Google Play Store or Apple App Store, then download. Download the app by scanning the QR code below. Download on the... - Page 3 EST02 ECOER Thermostat - A smart Choice for Smart Life! Items included in box: Smart Wi-Fi Thermostat Wall Plate Large Trim Plate Dh/H Dh/H Y/Y1 Y/Y1 R/Rc R/Rc Wiring labels Screws Sets User Manual You may also need these tools:...
- Page 4 EST02 Compatibility Conventional Gas, Oil, Electric Dual Fuel Support Humidification / Dehumidification Heat Pump (Up to 4H2C) include auxiliary heat or emergency heat * Require C-Wire to power the thermostat(24V-AC) Incompatible wiring and voltage Please check your old thermostat for compatibility to see if it: ·Does not work with electric baseboard heat (110VAC~240V AC)
-
Page 5: Installation
EST02 Installation Switch off the power Step 1 IMPORTANT as this protects you from blowing a fuse in your equipment. To make sure the power is off, change the Switch Breaker box temperature with your current thermostat and wait for at least 5 minutes to be sure that the system is OFF. - Page 6 EST02 Remove your old thermostat from the wall-plate Step 3 Most thermostats allow you to remove the main unit and provide access to a wall plate which holds the wiring terminals, you can take off the thermostat by grasping and gently pulling. Some thermostats may have screws, buttons, or clasps.
-
Page 7: Mount The New Wall Plate
EST02 Disconnect the wires and remove the old wall plate Step 6 Disconnect the wires from the old thermostat one by one, you may need a screwdriver to release wires from terminals. Unscrew and take off the mounting plate of your old thermostat from the wall. - Page 8 EST02 6.Use the picture you took before as reference for new thermostat wiring, the following chart is a wiring diagram for common systems, please make sure that a C-wire exists in our old thermostat system. Terminal Conventional System Heat Pump System...
- Page 9 (AC+Electric) Ecoer variable speed heat pump (AC option) Ecoer variable speed heat pump (AC option) matches with Furnace. matches with Ecoer air handler and electric heater. Optional O signal wiring can be omitted when Ecoer heat pump is used SW1-3 ON: AC...
-
Page 10: Dry Contact
EST02 If you need to connect humidification/dehumidification equipment, please refer to one of the following wiring methods according to actual needs. Dry contact Humidification 24VAC Relay Dehumidification (When the machine adopts dry contact control) Dh/H Y/Y1 R/Rc Humidification 24VAC contact A... - Page 11 EST02 If C- wire does not exist in your system, check the instruction below: Do you have a spare wire? Yes. Check for spare wire behind your wall plate of old thermostat, if you have a spare wire, connect it to the C terminal on the new wall plate.
- Page 12 EST02 Install the thermostat to the wall plate Step 9 First aim the four clips of the back plate of the thermostat, then gently push and fit the wiring pole to the terminals on the wall plate. Power on and enjoy...
- Page 13 EST02 Congratulations, you did it! Say hi to your new thermostat ! To complete, follow the instruction on your thermostat screen. Device Main Screen Current Date & Time Wi-Fi State Heating Setpoint Cooling Setpoint Indoor Humidity Indoor Temperature Target temperature...
-
Page 14: Device Initial Setup
EST02 Device Initial Setup For a convenient and straight forward start to using your new smart thermostat, the device will automatically guide you through the Initialization Setup process upon its initial power-up. Heat Type Select an HVAC type from the options... - Page 15 NOTE : The changeover point will only be valid once you have selected your home address in the Ecoer Home+ App. At that point, it will utilize the ambient temperature of your city sourced from the internet. If the address is not selected, then the thermostat will only use furnace/boiler for heating demand regardless the changeover point.
- Page 16 Create your Home After creating an account, signing in to the Ecoer Home Plus App, the App will create a default home for you and you can also be invited to join a home, if you are owner of the thermostat, select one home, and enter address to enable weather forecast, timezone and more information on this device.
- Page 17 EST02 If you have your Ecoer thermostat installed by a professional or if a Ecoer Thermostat is installed by yourself while it’s not yet connected to Wi-Fi, the App will start right away to connect your thermostat to Wi-Fi and bind the device to your account for remote control.
- Page 18 EST02 APP Main Screen Power on/off Indoor Temperature /humidity Mode switching Temperature switching Heating Setpoint Cooling Setpoint Indoor Temperature Fan Setting Humidity Setting Viewing rooms associated Current Schedule Period with devices...
-
Page 19: Additional Features
EST02 Additional Features Except from the above basic settings, Ecoer Smart Wi-Fi Thermostat also provides possibility to connect to the Alexa Assistant, hence helps you to control your room temperature by voice control. Follow our instructions below to get connected with Alexa: How to connect to Alexa? Download Amazon Alexa App and set up your Alexa-enabled device. -
Page 20: Limited Warranty
Repair or replacement may be made with a new or refurbished product or components, at ECOER INC. sole discretion. If the product or a component incorporated within it is no longer available, ECOER INC. - Page 21 ECOER INC. total cumulative liability arising from or related to this limited warranty or the product will not exceed the amount actually paid for the product by the original purchaser.
- Page 22 EST02 Home, product, product peripherals, computer, mobile device, and all other items and pets in your home, resulting from your use of the product information, services, or product. Product information provided by the services is not intended as a substitute for direct means of obtaining the information. For example, a notification provided through the service is not intended as a substitute for audible and visible indications in the home and on the product, nor for a third-party monitoring service that monitors alarm state.
- Page 23 FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 8 inches during normal operation. Warning: Changes or modifications not expressly approved by ECOER INC could void the user's authority to operate the equipment.
- Page 24 V1.1...
