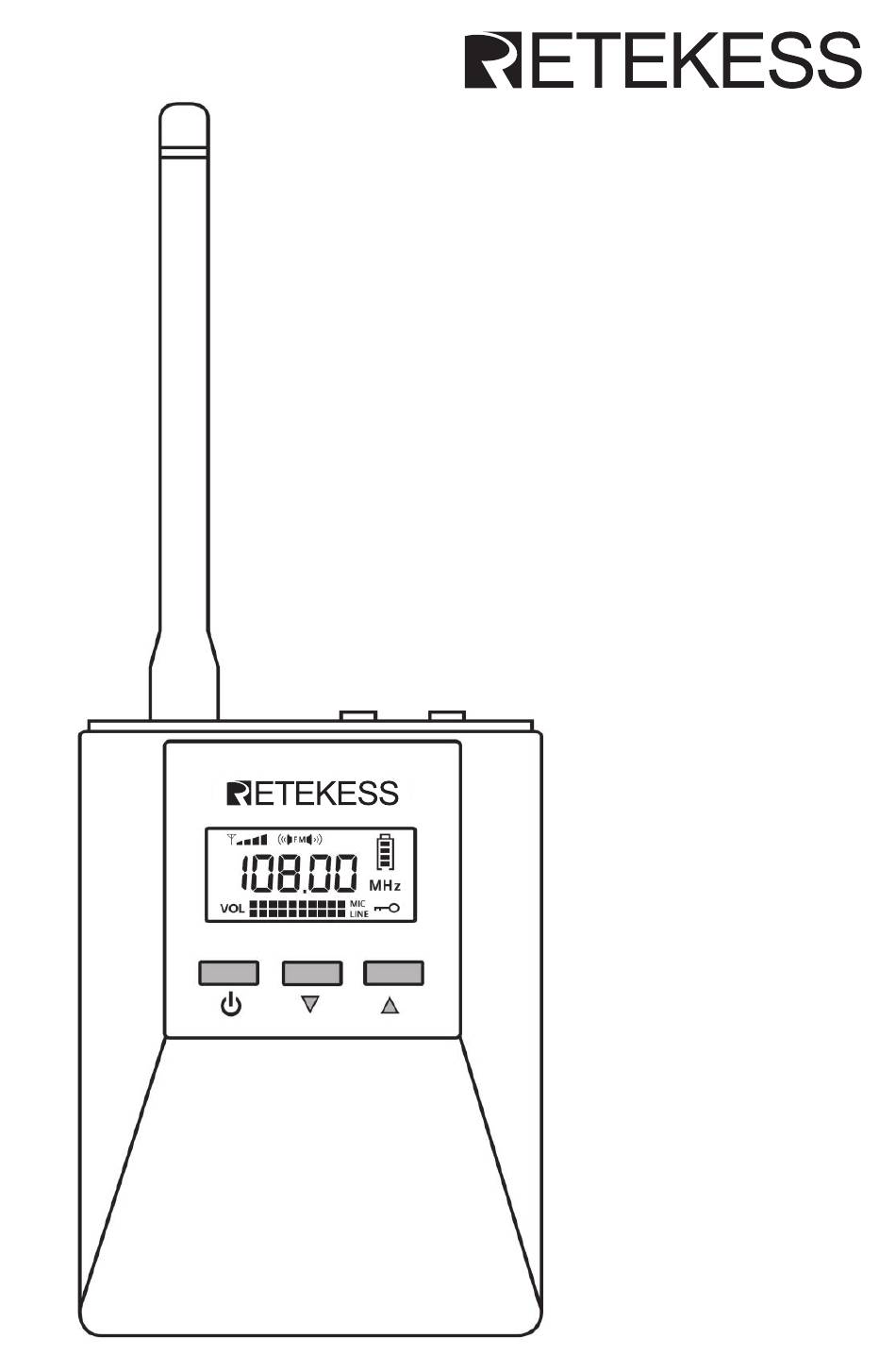

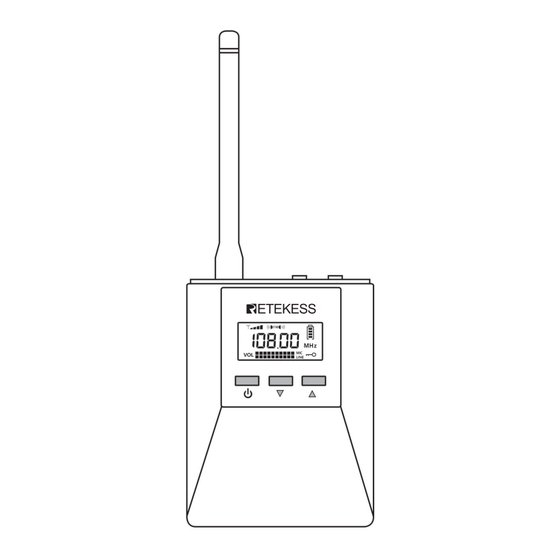

  • Page 1 TR506 FM TRANSMITTER...

  • Page 2: Main Characteristics

    Thanks for buying the TR506 portable FM transmitter. Before you use this transmitter for the first time,please read the user manual carefully and operate the device following the instructions. It is multi-functional device but easy to operate. We sincerely hope our products will bring you happy experience 1.
  • Page 3 3. Operation Instruction: Apperance and Function 1.Antenna port 2.RF power display 3.Line-in/Microphone Volume 4.Power button,Function shifting 5.Reduce/Lock the buttons 6.Inctease/Sound channel adjust 7.Battery Charging Port 8.Stereo status indicator 9.Microphone Port 10.Line-in port 11.Frequency Indicating 12.Battery indicator 13.Button locking indicator 1). Battery cover Install/removing: A.
  • Page 4 B. Hold the back of the cover and open it a little (Picture C), then pull out the cover from the slot (Picture D). （Picture C） （Picture D） 2). Antenna Install/Uninstall (This is anti-screw direction antenna) 3). Power ON/OFF A. When the transmitter is OFF, press and hold 【 】 to power on. B.
  • Page 5 6) Frequency Setting Press【 】，The “MHz” icon starts flashing, press【▼】to turn down frequency, and press【▲】to turn up. 7) RF Power Setting Press【 】，the“ ” icon starts flashing, press【▼】to reduce the broadca- sting power and press【▲】to increase. 8) Button lock/unlock function A.
  • Page 6 4. Main Specifications: Product Name Description Quantity Transmitter TR506 FM antenna Anti-screw direction Li-ion battery BL-5C 1000mAh With IC protection,Output Car charger voltage:DC 5V 1000mA Lavaliere Stereo,gold plating,1.2 meters microphone with shielding function. Audio cable 3.5 male to male USB cable...
  • Page 7 Spurious, ≤－30dB harmonic radiation Sound distortion ≤0.2% Frequency response 50Hz~15000Hz Input level ≤－15 dBV Frequency Modulation ±75KHZ ≥60 dB Device Size 82*60*22mm （Antenna not included） Weight About 67g(Battery not included)
  • Page 8 RF energy, which when used improperly, can cause biological damage. All Retekess radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of the radios.
  • Page 9 Unauthorized modification and adjustment Changes or modifications not expressly approved by the party responsible for compliance may void the user’s authority granted by the local government radio management departments to operate this radio and should not be made. To comply with the corresponding requirements, transmitter adjustments should be made only by or under the supervision of a person certified as technically qualified to perform transmitter maintenance and repairs in the private land mobile and fixed services as certified by an organization representative of the...
  • Page 10 53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/ EU; the full text of the EU declaration of conformity is available at the following internet address: www.retekess.com. •Disposal The crossed-out wheeled-bin symbol on your product, literature, or packaging...
  • Page 11 device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. •DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. Avoid Choking Hazard Small Parts.
  • Page 12 •Unplug the charger from the AC outlet before attempting any maintenance or cleaning. •Contact Retekess for assistance regarding repairs and service. •The adapter shall be installed near the equipment and shall be easily accessible •Risk of explosion if battery is replaced by an incorrect type.
  • Page 13 Retekess accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations. •For a list of Retekess-approved accessories for your radio model, WARNING visit the following website: http://www.Retekess.com...
  • Page 14 Warranty Card Date of purchase: Product model: Serial Number: Seller: contact number: Username: contact number: Address: Zip code： Warranty description: 1. The warranty card is saved by the customer as the warranty certificate, and the loss is not compensated. 2. This card must be stamped and dated for sale to take effect.
