USER´S MANUAL
LDCURV500DSAT / LDCURV500DSATW
SAFETY INFORMATION
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. During installation, observe the applicable safety regulations for your country.
7. Never place sources of ignition, e.g., burning candles, on the equipment.
8. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor
equipment - in this case, observe the special instructions noted below. Do not expose this equipment
to flammable materials, fluids or gases.
9. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers
filled with liquids, such as vases or drinking vessels, on the equipment.
10. Make certain that objects cannot fall into the device.
11. Use this equipment only with the accessories recommended and intended by the manufacturer.
12. Do not open or modify this equipment.
13. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due
to tripping hazards.
14. During transport, make certain that the equipment cannot fall down and possibly cause property
damage and personal injuries.
15. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equip-
ment or if it has been damaged in another way, switch it off immediately and unplug it from the
mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified
personnel.
16. Clean the equipment using a dry cloth.
17. Comply with all applicable disposal laws in your country. During disposal of packaging, please sepa-
rate plastic and paper/cardboard.
18. Plastic bags must be kept out of reach of children.
CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!
This equipment is intended for professional use. Therefore, commercial use of this equipment is subject
to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam
Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to
high volume and prolonged exposure: When in use, this product is capable of producing high sound-pres-
sure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience
members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.
To prevent possible hearing damage, avoid listening at high volume levels over long periods
of time. Even exposure to short bursts of loud noise can result in hearing loss. Please
keep the volume constantly at a comfortable level.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
media/pdf/Manufacturers-Declarations-LDSYSTEMS_DE_EN_ES_FR.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Daimler Straße 9, 61267 Neu
Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not
be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled
waste disposal. Please dispose of this product separately from other waste and have it recycled to promote
sustainable economic activity.
Household users should contact either the retailer where they purchased this product, or their local gov-
ernment office, for details on where and how they can recycle this item in an environmentally friendly
manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal
CE conformity
Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applicable):
R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017 / Low-voltage directive (2014/35/EU)
EMC Directive (2014/30/EU) / RoHS (2011/65/EU) / The full declaration of conformity can be found at www.
adamhall.com. You can also request it via info@adamhall.com
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation

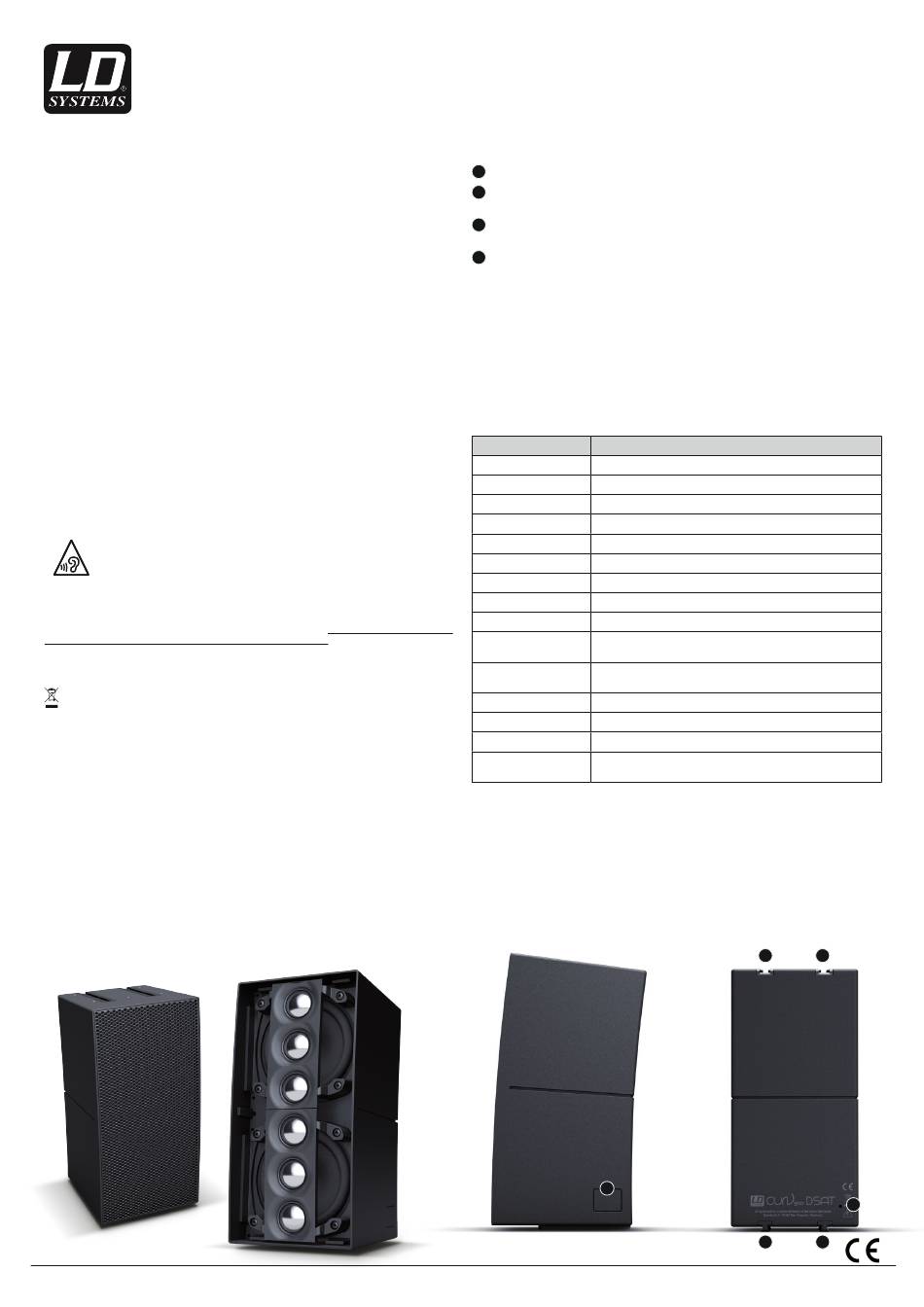

CONNECTIONS, CONTROLS, MECHANICS
1
2
3
4
ASSEMBLY
Push a CURV 500® double satellite from behind onto the SmartLink® adapter (or CURV 500® satellite)
as far as it will go while keeping the spring-loaded release button (1) at the side of the satellite pressed
down. In doing so, make sure that the two guidance rails (2) of the satellite are correctly fitted into the
grooves (3) on the top of the SmartLink® adapter (or CURV 500® satellite) so as to ensure a solid fit and
establish a connection between the contacts of the two components. Now release the button to return
it to its original position and lock the connection. Proceed in the same way to expand the system with
additional satellites. When dismantling the system, proceed in the reverse order.
For further information on set-up and wiring, please see the LD CURV 500
LD-SYSTEMS.COM.
TECHNICAL DATA
Model name:
Type:
Loudspeakers:
Dispersion (H x V):
Impedance:
Sensitivity (1W/1M) dB:
Max. SPL
Frequency response :
Material:
Surface:
https://cdn-shop.adamhall.com/
Colour:
Ambient temperature
(in operation):
Relative humidity:
Dimensions (W x H x D):
Weight:
Features:
Adam Hall GmbH · Daimlerstr. 9 · 61267 Neu-Anspach · Germany
Tel.: (+49) 60 81 / 94 19 0 · Fax: (+49) 60 81 / 94 19 1000 · eMail: mail@adamhall.com
RELEASE BUTTON
GUIDE RAILS
with locking system and contacts for connecting the components mechanically and electrically.
GROOVES
with locking system and contacts for connecting the components mechanically and electrically.
M3 THREAD
M3 thread for securing purposes in the event of fixed installation.
LDCURV500DSAT(W)
LD CURV 500 ® duplex array satellites
MF: 2 x 4" / HF: 6 x 1" with WaveAhead
110° horizontal, 5° vertical
8 ohms
91 dB
109 dB
120Hz-20Khz
Die-cast aluminium
Powder coating
LDCURV500DSAT: black
LDCURV500DSAT(W): white
0°C - 40°C
<80% (non condensing)
122 x 240 x 126 mm
3.3 kg (1 piece)
WaveAhead ® Technology, internal crossover, metal grille, SmartLink
System, M3 safety thread for fixed installation
1
EN
iAMP user manual at WWW.
®
Technology
®
®
3 3
4
2 2
