Comfort Company COMFORT FOOT Instruction Sheet

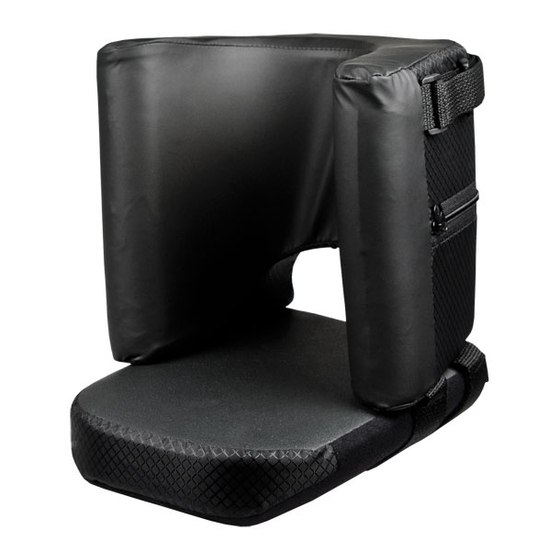

COMFORT FOOT / SINGLE FOOT
WARNING:
Make sure all screws are tightly clamped upon completion.
Clamp On
Parts Included:
1 - Clamp Assembly

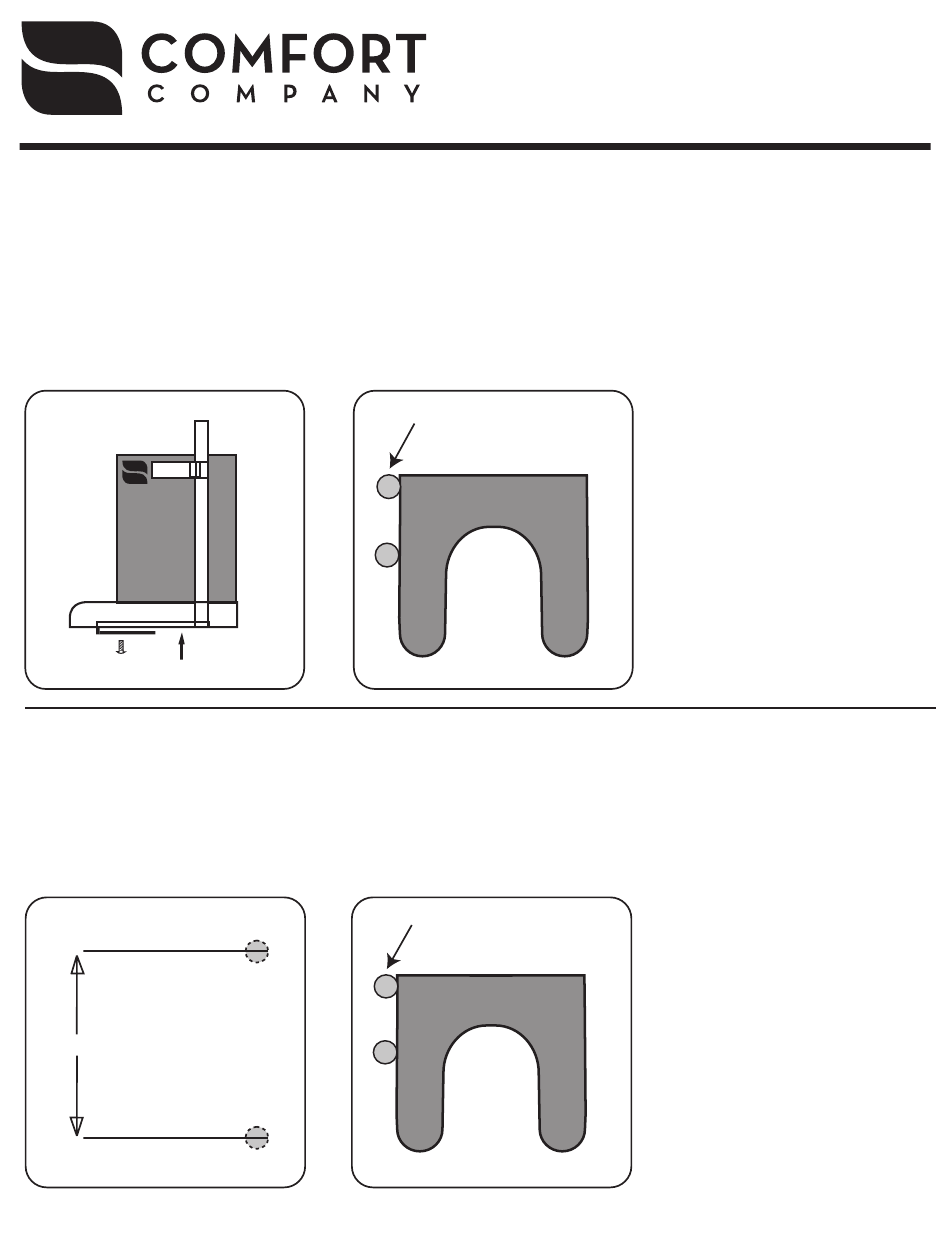

Diagram 1 (steps 1-3)
Footplate
Clamp
Wheelchair Footplate
Bolt On
Parts Included:
2 - ¼-20 x 1" or ¼-20 x 1 ¼ " Screws (dimensions vary depending on size of part)
2 - ¼ " x 1 ¼ " OD Fender Washer
Diagram 1
2.75"
COMFORTFOOT_LIT016_12192012
Diagram 2 (step 4)
Leg rest tube
A
B
Diagram 2
A
B
Common Loop
Legrest Position
