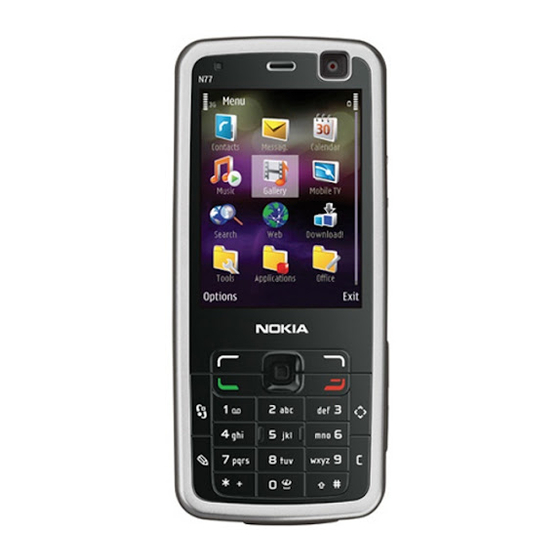

Keys and parts (front and side) Model number: Nokia N77-1. Hereinafter referred to as Nokia N77. 1 Light sensor 2 Secondary camera with lower resolution 3 Selection keys ( 4 Navi scroll key (hereinafter referred to as the scroll key) to move left, right, up, or down.
Keys and parts (back) 14 Power key 15 Stereo speakers 16 Main camera with higher resolution for image capture and video recording 17 Camera flash 18 Memory card slot for a compatible microSD card 19 Charger connector 20 Pop-Port connector for a USB data cable, headset, and other compatible enhancements...
Insert the (U)SIM card and battery The USIM card is an enhanced version of the SIM card and is supported by UMTS mobile phones. Keep all SIM cards out of the reach of small children. For availability and information on using SIM card services, contact your SIM card vendor. This may be the service provider or other vendor.
Switch the device on 1 Press and hold the power key ( 2 If the device asks for a (U)PIN code or lock code, enter it, and press . The factory setting for the lock code is 12345. Your device has internal antennas. Note: As with any radio transmitting device, avoid touching an antenna unnecessarily when the antenna is in use.
Charge the battery 1 Connect a compatible charger to a wall outlet. 2 Connect the power cord to the device. If the battery is completely discharged, it may take a while before the charging indicator starts scrolling. 3 When the battery is fully charged, disconnect the charger from the device, then from the wall outlet.
You can also back up information from your device to the memory card. Use only compatible microSD cards approved by Nokia for use with this device. Nokia uses approved industry standards for memory cards, but some brands may not be fully compatible with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card.
Transfer content from another device To use the transfer application, see the user guide. Use Nokia Content Copier in Nokia Nseries PC Suite to copy content from a compatible Nokia phone. See the CD-ROM supplied with your device. Nokia Content Copier supports several Nokia phone models.
Page 9
Headset You can connect a compatible headset to the Pop-Port connector of your device. You can use a compatible remote controller unit, such as the Audio Controller AD-41 to connect a compatible headset or compatible headphones with a 3.5 mm connector. First connect the unit to the connector in the device, then connect the headset or headphones to the unit.
Page 10
Mobile TV Your device has an integrated Digital Video Broadcast - Handheld (DVB-H) Exit receiver, which enables it to receive live digital TV broadcasts. With Mobile TV you can watch, and listen to digital TV programs and access interactive mobile television and radio services (network Options service).
Page 11
Change channel • Scroll left or right to change the channel. You can also use the Audio Controller AD-41 to change the channel. • Scroll up or down to view a list of available channels. To select a channel, press •...
Page 12
Shortcuts Standby mode • To switch between open applications, press and hold Leaving applications running in the background increases the demand on battery power and reduces the battery life. • To open the Mobile TV application, press and hold • To activate camera, press and hold •...
See ‘Data cable’ section under ‘Connections’ in the user guide. Use a compatible microSD card to transfer data or back up information. See ‘Memory card tool’ section under ‘Your Nokia N77’ in the user guide.
