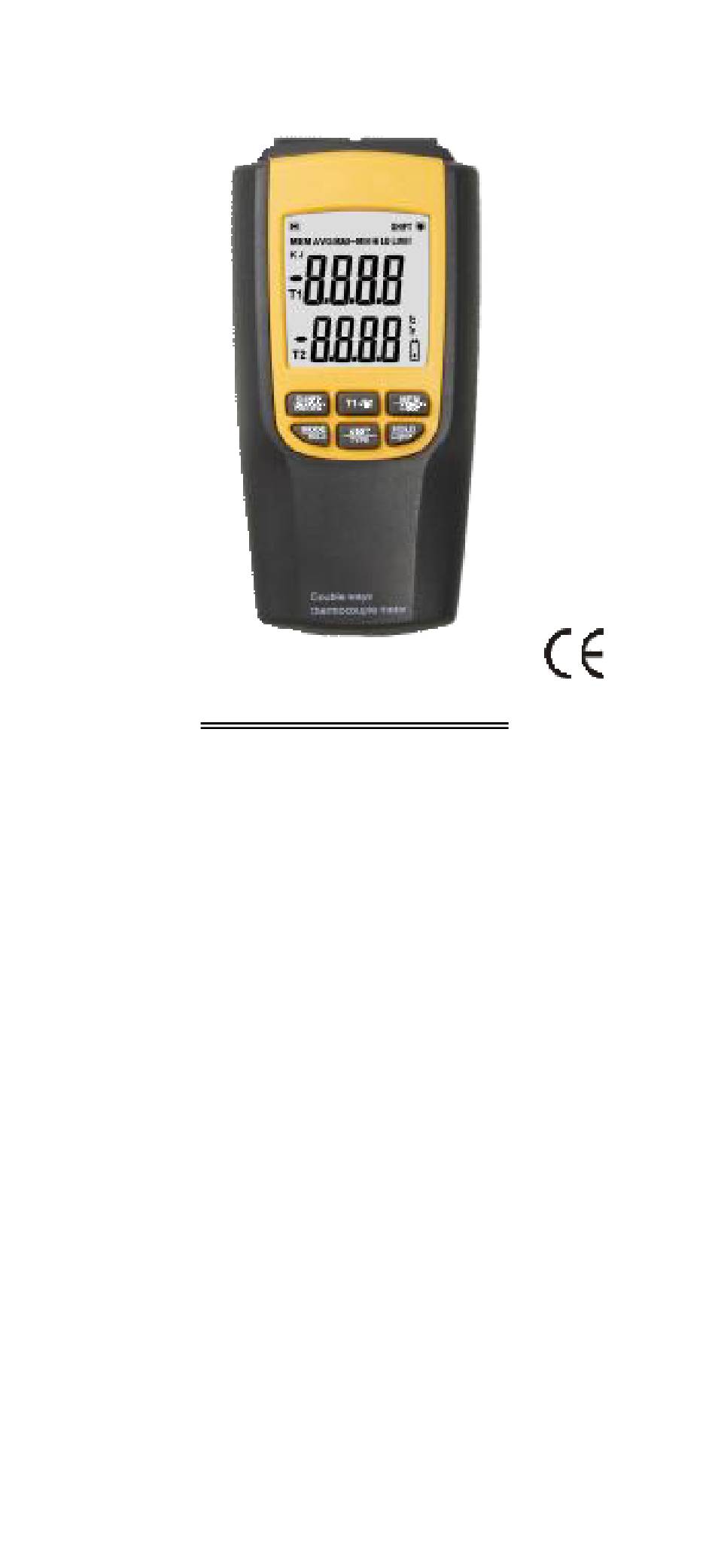

- Page 1 DOUBLE WAYS THERMOCOUPLE METER Users Manual...
- Page 2 ■.Introduction Thank you for purchasing the double ways thermocouple meter from us. Please take a few minutes to browse through this user manual before you begin to operate the meter to ensure that you are fully familiarized with how best to operate the meter as accurately and safely as possible.
- Page 3 cloth and detergent, do not use abrasives or solvents. 1.1.2 Maintaining the product l Do not measure at a high temperature, high humidity places. l When not using the instrument for a long time, please remove the battery and avoid storing in high temperature and high humidity.
- Page 4 (-148 ～ 2372℉) ±(0.1% reading +1.4℉) 5. Sample rate: 1 time /sec 6. Auto power off: about 20 minutes 7. Low battery indicator 8. Operating environment: 0℃ ~ 50 ℃(32℉~122℉)，0 ~ 80%RH 9. Storage environment: -20℃ ~ 60℃(-4℉~140℉)，0 ~ 80%RH 10.
-
Page 5: Instrument Familiarization
■. Names of parts l Instrument Familiarization 1. sensor cover 2. temperature input jack 3. LCD display S H IF T M EM T1-T2 ON /OFF LIM IT 4. function key MO DE U N IT H OL D H i/Lo Light TY PE D oubl e ways... - Page 6 The meaning of the symbols represented by the following： 1. Indicating it is now in the data-holding state 2. Indication to the high or low temperature setting 3. Indication to the second function key 4. Type of thermocouple 5. Display zone 6.
-
Page 7: Function Keys
enter into the measuring mode. 2. If the instrument is connected to the thermocouple, it will display the thermocouple temperature of the port T1 or T2. otherwise, it will display OL. 3. You can Press the function key to change temperature unit, select T1-T2/MAX/MIN/HOLD mode and K/J type, set Hi/Lo alarm, and store data. - Page 8 SHIFT second function key: Press the key to enable the second function of the key, and a SHIFT icon will display on the LCD. The function of key: SHIFT disenable：MEM、MODE、UNIT SHIFT enable：LIMIT、Hi/Lo、TYPE 2. T1-T2 key Press the key to enforce T1-T2 function and the T1-T2 icon will display on the LCD.
- Page 9 When it is full of five data, OU icon will display on the LCD. If need to store more data, you should clear all data which have been stored before (in normal mode, press the MEM key >2 sec., then a CLER icon will display on the LCD).
- Page 10 icon will disappeared. UNIT TYPE UNIT The temperature unit selection Press the key to select alternate the two temperature units of ℃ and ℉ TYPE Select thermocouple type function When SHIFT is enabled, press the key to select alternate the two thermocouple type of K-type and J-type.
-
Page 11: Auto Power Off Setting
Use SHIFT key to select Hi or Lo setting. Use MODE or HOLD key to move position. Use TI-T2 or UNIT key to set temperature. Use SHIFT key to complete the setting. NORMAL SHIFT SHIFT + Hi/Lo SETTING SETTING DISPLAY SHIFT T1-T2 MODE... -
Page 12: Cleaning Instructions
mode. The meter will power itself off after 20 minutes if no key operation. Cancelled auto power off function: press HOLD key when power on until the LCD display all icons and the buzzer send out a long alarm. ■.Maintenance 1. - Page 13 display and the battery need to be replaced. ¥ Press the battery cover and towards arrowhead direction to open the battery cover. ¥ Replace the battery with three new 1.5V batteries (AAA). ¥ Replace the battery cover.
