- Page 1 ROTATE SPEED METER Users Manual...
- Page 2 ■. Introduction Thank you for purchasing the rotate speed meter from us. Please take a few minutes to browse through this user manual before you begin to operate the meter to ensure that you are fully familiarized with how best to operate the meter as accurately and safely as possible.
- Page 3 reflective markers. To apply the reflective markers, wait until the object to be measured has come to a standstill. 2. The ideal distance to the measurement object is between 10 and 40 cm. During the measurement, always aim at the reflective marker from an angle of approx.30°.
- Page 4 readings is outside the measuring range. Please keep to the permitted measuring range. 5. Never store the product together with solvents, acides or other aggressive substances. 6. When the battery voltage is under proper operation requirement, the symbol will show on the LCD and the battery need to be replaced with new.
- Page 5 ■. Features 1. Display: 6 digits LCD Display 2. Parameters: rpm, rps 3. Resolution: 0.1 rpm（100～999.9 rpm） 0.1 rps（1.7～100 rps） 1 rpm（1000～30000 rpm） 1 rps（100～500 rps） 4. Range: 100～30000 rpm 1.7～500 rps 5. Accuracy: ±0.1％reading (100.0～9,999rpm) ±0.02％reading (10,000～30,000rpm) 6. Sample rate: 1 time /sec 7.
- Page 6 11. Accessories: Reflective marker x 1pcs String x 1pcs Plastic box x 1pcs DC1.5V (AAA) x 3pcs Users manual x 1pcs 12. Laser power: <1mW Warning: Do not point laser directly at eye or reflective surfaces.

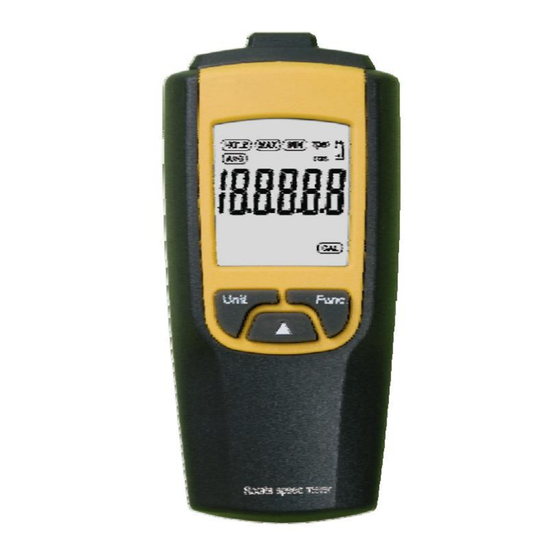

- Page 7 ■. Names of parts Instrument Familiarization 1. Sensor cover 2. Photo transistor 3. LCD display 4. Function key Func. Unit Rotate s pe ed met er LCD Display...
- Page 8 The meaning of the symbols represented by the following table Number Symbol Functions of Order Indicating it is now in the data-holding state Indicating the display value being the maximum value(MAX) Indicating the display value being the minimum value(MIN) The display zone for the meter’s measurement value, showing all the measurement values...
- Page 9 rpm、rps rotational speed units Indication to low voltage of the batteries, showing the energy of batteries will be exhausted soon ■. Operation instruction 1. Cut out a part of the reflective marker and attach it to the rotating object which is under test. And then start this rotating object.(Make sure to stop the rotating object first and then paste the reflective marker)
- Page 10 objects affixed with a reflective marker and maintain the fixed location. Adjust the distance between the instrument and rotating body to 10cm~60cm, the distance is based on the reliable and stable value which can be read by the instrument. At this point you can read the speed of the rotating body.
- Page 11 and stop to press any key for two minutes, shutdown will occurs automatically. 2. Func. key Press Func. key can select the state: The number of impeller setting As shown in Figure: Func.key Func.key Hold mode Max mode Min mode The number of impeller setting Func.key...
- Page 12 state of setting. 3. Unit key 1) Unit set Press the key can change the parameter unit: rpm, rps. 2) Back light contrl If press the key >2sec. the back light will be turned on, Press the key once >2sec. the light will be turned off. If the back light is not closed within 60 seconds, it will be turned off automatically.
-
Page 13: Cleaning Instructions
■. Maintenance 1. CLEANING INSTRUCTIONS The meter may be wiped down with a wet sponge or cloth using a mild water based detergent or anti-bacterial soap and rinsed under a gentle stream of cold water. NOTE: This unit is not designed for complete submersion or washing in water. - Page 14 (AAA). ¥ Replace the battery cover. -13-...
