Summary of Contents for SVAT ClearVu CVDVR900

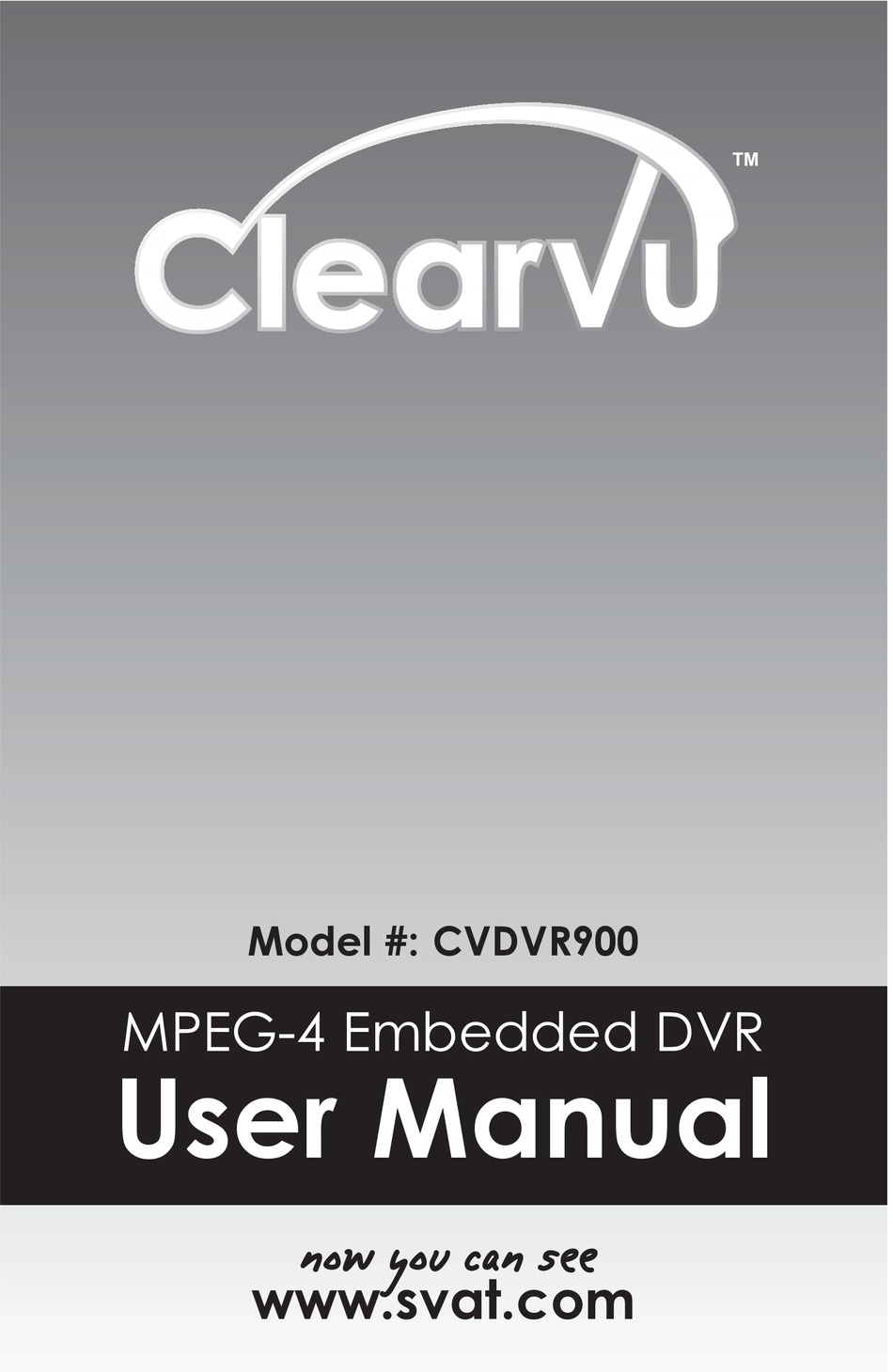

- Page 1 Model #: CVDVR900 MPEG-4 Embedded DVR User Manual now you can see www.svat.com...
- Page 2 INSTALLATION GUIDELINE A. Installation Environment In order to ensure the safety with the DVR product and maximize product per- formance, please notice the following while/ before you install the product: i. Only use with AV220V voltage supply, please check with the power supply with correct voltage before installation.
-
Page 3: Product Functions/ Features
PRODUCT FUNCTIONS/ FEATURES • High speed embedded CPS and real time embedded control operation system are adapted with the product. It provides operation stability, no hang-up error, more reliability and ease for maintainance. • Operation with front panel and remote control, menu language also available in English/Chinese/Simplified Chinese. -
Page 4: Front Panel
FRONT PANEL Front Panel and key definition: 1. LED Indicator status area • [1-8]LED Indicators: indicate 8 different channels for recording status, (for the 4-channel model: only works for LED[1-4], others will be off). LEDs that are on indicate recording in progress, and LEDs that are off indicate that the system is in standby. -
Page 5: Other Options
FRONT PANEL ...continued 5. Other options Key ......Definition [Power ON /Power Off] ... .System turn on and off(Stand-by and start) [Login/Locked]Key . -
Page 6: Back Panel
BACK PANEL ...continued Back Panel and connection outlet: 1 Ventilation fan 2 AC220V power in 3 Power switch 4 Alert signal in/out/ RS-485: 4 channels input/ output 5 Audio input: provide 4 channels audio input 6 Audio output: 2 channels for audio out, left side for replay output, right side for the surveillance output 7 Video output: 2 channels for video signal output, channel 1 for surveillance output, channel 2 for mixed video output... -
Page 7: Remote Control
REMOTE CONTROL Remote Control Key Definition / Function: Numeric Key [0-9]Keys : Numeric, for number key-in or video swapping. For non-menu screen, 1, 2, 3 and 4 represent for the video channel 1, 2, 3 and 4 respectively. [+], [-]Keys : Use for volume control, or while checking can play as next/pervious page, even changing some parameters for configuration. - Page 8 REMOTE CONTROL Remote Control Key Definition / Function: 5. Other options Key ......Definition [Power ON /Power Off] .
-
Page 9: System Start-Up/Shut Down
SYSTEM START-UP/SHUT DOWN 1. System Start up Plug in your AC power, turn on the main unit, the red light will turn on while the system boots up. The system will be in standby mode. Press the [ON/OFF]button in front panel or remote control, the red light will turn off, then the monitor will be activated to show as 4-channel windows status. -
Page 10: Menu Setup
OPERATION INSTRUCTION A. Menu Setup While system is powered up, select [General Setting] to alter the system setup. The setup menu can be seen below, highlight the item for selection and then press [Enter] to confirm. (while system recording, not allow to change any setting for current channel) A-1 General Parameter Setting: Highlight and select "General Settings", then press [Enter] for this selection, the sub-menu will shown (as below), then select the desired area. -
Page 11: Record Parameter Setup
OPERATION INSTRUCTION Example: below is the record default setting: Record Settings Channel Quality HDD Store Mode Centralize Individual Return A-2 Record Parameter Setup: While system operated, select "Record Setting" to changing some setting in here: GENERAL SETTINGS Record Settings Timer Record Motion Detection Alarm Record Channels... - Page 12 OPERATION INSTRUCTION Conversion Table for Image Quality and Encoding Rate Sharpness Fixed Fixed Fixed HDD Store Mode: "Centralize, Individual, Compound" are 3 different hard disk storing modes available in here. Using the cursor to select and press [Enter] to confirm this function: •...
-
Page 13: Motion Detection Setting
OPERATION INSTRUCTION • Date: Select either "Everyday", "Sun", "Mon", "Tue", "Wed", "Thu", "Fri", "Sat" and "Peak", when "Peak" time selected, the device will not use the stand-by function. • Period 1 and Period 2: Select start time and end time. Motion Mode: "On, Off"... -
Page 14: Alarm Record Setting
OPERATION INSTRUCTION Alarm Record Setting: Highlight and select Alarm Record, then press [Enter] for this selection, the sub-menu will shown (as below), then select the required area. GENERAL SETTINGS Record Settings Timer Record Motion Detection Alarm Record Channels Housings Network Language Exit Alarm: "On, Off"... -
Page 15: Channel Setting
OPERATION INSTRUCTION Multi_Ch_Rec: "On, Off" are the 2 different status settings available. Use the cursor to select and press [Enter] to confirm this function. While "On" is selected, there will be 4 multiple channels interface display as shown below: Alarm Record Settings Ch Alarm In_Mode Close Alarm_Delay: 005s... -
Page 16: Network Setting
OPERATION INSTRUCTION • Use the directional key to move small yellow block selection. When 4 points of yellow block are produced there will be q region wet up for the coverage setting area. Time insert: "On, Off" are the 2 different status settings. Use the cursor to select and press [Enter] to confirm this function. - Page 17 OPERATION INSTRUCTION A-10 Exit: Highlight and select Exit, then press [Enter] to confirm for save the change of setting then return back to main menu. B. Info Menu While system is in use, select [Info Menu] to check the menu content. The info menu can be seen as shown below, highlight the item for selection and then press [Enter]to confirm.
-
Page 18: Alarm Record
OPERATION INSTRUCTION Press [Enter] to see the recording video/audio signal, press [F1]for time select playback, and press [SLOW] for slow motion playback at a different speed. Press [FF]for fast forward playback and [FB]for fast backward playback, press [PAUSE] key to pause the video. [RETURN] to exit the playback window and back to main menu. -
Page 19: Alarm Log
OPERATION INSTRUCTION B-3 Alarm Log: Highlight and select Alarm Log, then press [Enter] for this selection, the sub-menu will be shown (as below), this allows you to see the recent alarm status and report. Info Menu Alarm Record Alarm Operate Channel Status Status... -
Page 20: Machine Info
OPERATION INSTRUCTION B-7 Machine Info: Highlight and select Machine Info, then press [Enter] for this selection, the sub-menu will be shown (as below), this allow to show all the machine ID number and software version. Info Menu Record Alarm Record Alarm Operate Channel... - Page 21 CF OPERATION INSTRUCTION 1. No Record will be shown if there is no data in the Compact Flash Card. 2. There will be a record list to viewed for data from the Compact Flash Card (as shown below). 3. Pressing [Enter] button for selected record data to playback, and press the [ESC] button to stop the playback.
- Page 22 RECORDING AND PLAYBACK INSTRUCTION D-1 Recording Manual Recording: 1. Use the [Record] button to start recording, will be a red dot on the top right side corner of the monitor which indicates the recording is in progress. 2. Press the [Stop] button to stop the recording and the red dot will turn off. Timer Recording: Refer to section A-3 Remark: The Channel 1 timer setting has the "Peak"...
-
Page 23: Parameter Adjustment
ADJUSTMENT FOR PICTURE PARAMETER AND SOUND LEVEL Parameter adjustment 1. Use the [Adjust] button to adjust brightness, color, contrast and the motion detect sensitivity level. 2. Use the [+] or [-] button for adjustment up and down. 3. Returns to menu after 5 seconds idle time without any adjustment. TECHNICAL SPECIFICATION DATA Parameter adjustment 1. - Page 24 TECHNICAL SPECIFICATION DATA Pow er Consumption Working Temperature Others Working Humidity Outer Dimension Weight Clock APPENDIX IDE requirement: 1. There are 2 IDE ports in the main board: 1 is master and 1 is slave. 2. J4 IDE (the one close with power port) as master IDE port. 3.
