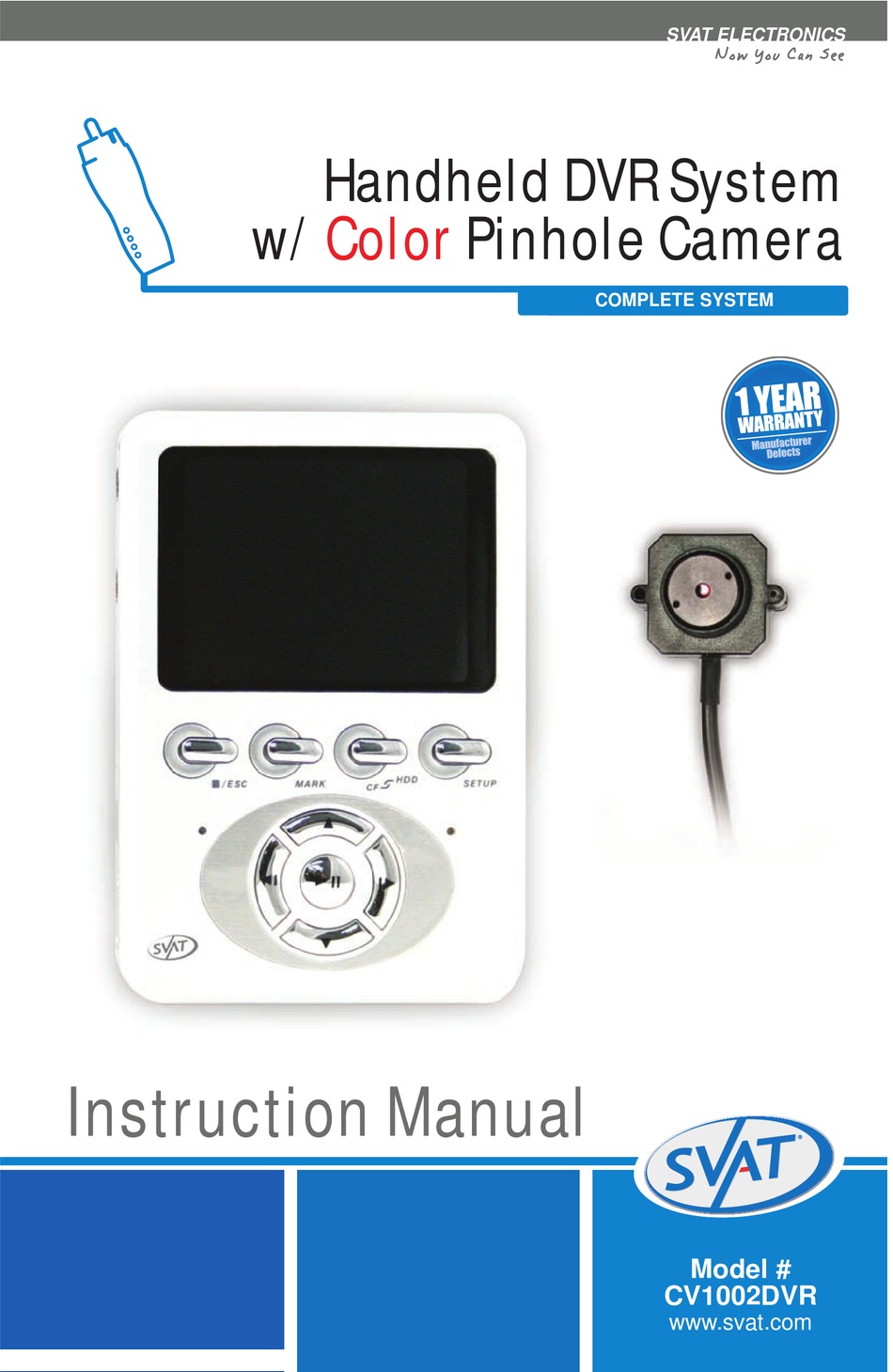

Page 1: Instruction Manual
SVAT ELECTRONICS Now You Can See Handheld DVR System Color Pinhole Camera COMPLETE SYSTEM Instruction Manual Model # CV1002DVR www.svat.com... -
Page 2: Product Warranty & Registra Tion
We take quality very seriously. This is why all of our products come with a one year warranty from the original purchase date against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following methods: SVAT Electronics USA 2315 Whirlpool St., Unit 333 NIagara Falls, New York... -
Page 3: Table Of Contents
1 Color Camera USB 2.0 A/B Cable 3.5mm to RCA (male) wire T IS COMP T IS COMP The CV1002DVR is compatible with TVs, VCRs, computers and other SVAT systems including: CMOSIRCO CMOS2CO CV1002DVR 2 Power Adapters 33" Extension Wire... -
Page 4: Features
• For motion detection, multiple detection blocks and appropriate motion trigger level can be set up. • Support key lock function. • Use anywhere, the device supports both AC power adapter and Rechargeable Li-Ion Capacity. CV1002DVR SVAT ELECTRONICS Now You Can See... -
Page 5: Parts Of The System
9. Enter/Play & Pause Button Controls the playback of the movies recorded 10. AV Out Connect TV audio/video with AV Out to view movies recorded on your TV CV1002DVR SVAT ELECTRONICS 11. AV In Connects a camera 12. Reset Button Resets settings to factory defaults 13. -
Page 6: Control Panel Functions
Plug the corresponding ends of these cables into the 30 ft RCA/POWER cable. Plug the opposite end of the RCA/POWER cable into the 9-volt power adapter. Plug the power adapter into the wall. CV1002DVR SVAT ELECTRONICS Now You Can See... -
Page 7: Installation
SVAT ELECTRONICS Now You Can See Installation - PVR 1. If you are using the HDD (sold separately), refer to section 9.1 for hard drive installation and warnings. 2. If you are using the included CF card, insert it into the bottom slot of the PVR. -
Page 8: Main Setup
SVAT ELECTRONICS Now You Can See 1. MAIN SETUP 1. MAIN SETUP Under live view mode, you can press SETUP key to enter the page of setting up basic functions. Then, press ESC key to enable your setting and back to live view mode. In the page of main setup, please use RIGHT / LEFT button to select value for each option. - Page 9 SVAT ELECTRONICS Now You Can See 1.2 TV Playback Connecting to TV: Use the AV Out port to connect the PVR to a TV. This will allow you to play MPEG 4 video directly on your TV. Insert the black end of the RCA plug into the AV OUT jack.
- Page 10 SVAT ELECTRONICS Now You Can See 3. Format Storage: Use the left and right buttons to select the drive you would like to format (HDD or CF). Press the play button and select YES to confirm your selection. 4. Reset to Default: Pressing the play button will reset the PVR to its factory default settings.
- Page 11 Press the play button to change the date and time for the selected mode. Use the up and down buttons to select the desired time/date to start recording. The system must be returned to LIVE mode to start the scheduled recording. CV1002DVR SVAT ELECTRONICS Now You Can See...
-
Page 12: Main Setup
1.5 Main setup page 4 Motion Time: determine how long PVR records after motion detection has started; use RIGHT / LEFT to set time from 10sec, 20sec, 30sec, 1min, 3min, 5min and 10min CV1002DVR SVAT ELECTRONICS Now You Can See... -
Page 13: Video Recording
SVAT ELECTRONICS Now You Can See 2. VIDEO RECORDING 2. VIDEO RECORDING 2.1 connecting with other devices Connecting to TV: Your TV must have video output jacks. Plug the black end of the RCA adapter into the video input of your PVR. Plug the yellow, red, and white ends into the video outputs of your TV. -
Page 14: Video Recording
SVAT ELECTRONICS Now You Can See Connecting to DV or Digital Camera: Plug the black end of the RCA adapter into the video input of your PVR. Plug the yellow, red, and white ends into the video outputs of your DV or Digital Camera. -
Page 15: Switching Between Storage Devices
Once marked, the selected file names will turn red, and can be deleted by pressing SETUP key to set up basic functions. Delete mode: Enter this setup, you can delete selected file(s) or all files (Select / All). CV1002DVR ORAGE DEVICES ORAGE DEVICES button to switch between the storage devices. -
Page 16: Connecting With Pc
The PVR has a built-in Li-Ion Battery and takes about 4 hours to recharge. When the battery is low, you will see the red battery meter icon in the upper-right corner of the display. Immediately shut down and recharge the battery. CV1002DVR SVAT ELECTRONICS Now You Can See... -
Page 17: How To Use Power Supply Properly
SVAT ELECTRONICS Now You Can See 7. HOW T O USE POWER SUPPL PROPERL 7. HOW T O USE POWER SUPPL PROPERL The rechargeable battery of the PVR is a Li-Ion Battery. Before using please read the following carefully in order to use the power supply properly. -
Page 18: How To Use The Pvr Properly
SVAT ELECTRONICS Now You Can See 8. HOW T O USE THE PVR PROPERL 8. HOW T O USE THE PVR PROPERL We recommend that you read this chapter carefully before use. The manufacturer disclaims any liability for damage which may result as a consequence of improper use or... -
Page 19: Using External Storage Media
SVAT ELECTRONICS Now You Can See 9. USING EXTERNAL ORAGE MEDIA 9. USING EXTERNAL ORAGE MEDIA For your PVR there are two external storage media: CF card and 20GB external HDD (optional accessory). Warning: 1. During data recording, please do not remove the external storage device (CF Card or HDD), because this action may cause the damage of the external storage device. - Page 20 SVAT ELECTRONICS Now You Can See 9.2 Installation of external hard drive 1. Please remove the plastic flap from the back of the machine. 2. At the same time please press the buttons on the both sides of the hard drive slightly.
-
Page 21: System Requirements
SVAT ELECTRONICS Now You Can See 9.3 Removing the external hard drive 1. Before removing the hard drive, please push the locking button to the left slightly. 2. At the same time please press the buttons on both sides of the hard drive slightly and pull back gently. -
Page 22: Troubleshooting
HDD and the player (socket) Video is not - Cables not in their proper displaying on TV places - Incorrect TV channel CV1002DVR SVAT ELECTRONICS Now You Can See Solution - Recharge battery - Unlock “Hold” key - Restart the DVR... -
Page 23: Specifications
SVAT ELECTRONICS Now You Can See 12. SPECIFICA TIONS 12. SPECIFICA TIONS INDOOR PVR Display...2.5" Color TFT-LCD Functionality ...Simplex Video Compression ...MPEG4 ASF Resolution ...704 x 240 Recording Frame Rate ...30 FPS Recording Time ...Max 30 Hours w/ 20GB HDD (optional) Recording Resolution ...704 x 240... - Page 24 SVAT ELECTRONICS Now You Can See Housing Color ...Pure White Power Input ...9V DC 500mA Power Adapter Input ...120V 60Hz Operating Temperature ...41°F ~ 104°F Operating Humidity ...30% ~ 80% Dimensions ...2.8" x 4.1" x 0.8" Weight ...0.33lbs INDOOR CAMERA (CMOSCO) Image Sensor ...1/3"...
- Page 25 SVAT ELECTRONICS Now You Can See T SUPPORTS CRIME ST OPPERS T SUPPORTS CRIME ST OPPERS Crime Stoppers programs are operated as non-profit charities and are managed by a volunteer board of directors who raise funds and pay rewards to individuals who anonymously call with information that helps solve crime.
- Page 26 SVAT ELECTRONICS Now You Can See T SUPPORTS CRIME ST OPPERS T SUPPORTS CRIME ST OPPERS To receive more information about Crime Stoppers or to make a charitable donation please fill in the fields below, cut on the dotted line and mail in.
- Page 27 SVAT ELECTRONICS Now You Can See w w w . s v a t . c o m w w w . s v a t . c o m D i s c l a i m e r S VAT d o e s n o t e n d o r s e a n y o f S VAT p r o d u c t s f o r a n y i l l e g a l a c t i v i t i e s .
