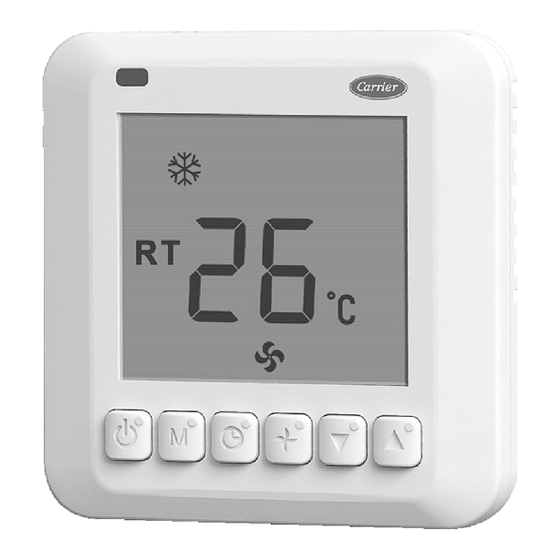

TOTALINE TST-EGND06413SCS00 Manual

NON-PROGRAMMABLE
DIGITAL THERMOSTAT
TST-EGND06413SCS00 / TST-EGND06413SCS01
TST-EGND06423SCS00 / TST-EGND06423SCS01
-Cool, Heat and Ventilation
-Large, Easy To Read Display
-Blue Backlight
-Fahrenheit or Centigrade
-Auto Recovery
-2-pipe or 4-pipe Selection
-DA or DB Type Selection
Cool mode Heat mode Ventilation
Room temperature
Set temperature
On/Off Button
Mode Button
Invalid Fan Button Down Button Up Button
Specification
Set-Point Range: 5 ℃ - 35 ℃ ( 41 ℉ - 95 ℉ )
Operating difference: ± 1 ℃
Switch current rating: < 2A
Sensing element : NTC
Display: LCD
Power supply:
TST-EGND06413SCS00: AC85V~260V 50Hz/60Hz
TST-EGND06413SCS01: AC85V~260V 50Hz/60Hz
TST-EGND06423SCS00: AC24V ±10% 50Hz/60Hz
TST-EGND06423SCS01: AC24V ±10% 50Hz/60Hz
Dimensions: 86 × 86 × 29.5 mm (W H D )
× ×
Housing: ABS Flame Retardant
Basic Operation
Power ON/OFF
To turn the thermostat on, press " ". Mode symbol (
"RT", and room temperature will be displayed.
To turn the thermostat off, press " " again. There is no any display
on LCD and no any output.
Select Mode
Cool Setting: Press "M", until the " " is displayed, it will be
confirmed automatically after 6 seconds.
Heat Setting: Press "M", until the " " is displayed, it will be
confirmed automatically after 6 seconds.
Ventilation Setting: Press "M", until the " " is displayed, it will be
confirmed automatically after 6 seconds.
Fan Setting
Fan speed select: press the fan button to select "
L ow , A uto ". In mode " A uto
（ ） （ ） （ ）
automatically. Auto LOW-speed When the difference between
room-temperature and setting-temperature exceed 1
MED-speed When exceed 2 ℃ ( 4 ℉ ) , Auto HI-speed When exceed 3
( 6 ) .
℃ ℉
Setting Temperature
To enter the configuration mode: press "5" or "6" buttons , The "
and "SET" will appear on the display.
Press"5" or "6" to adjust the Cool Temperature.
Press "M" button once. The " " and "SET" will appear on the
display.
Press "5" or "6" to adjust the Heat Temperature.
Error Codes
E1 — If the thermostat cannot properly read room temperature, and it
needs to be adjusted, E1 will be displayed.
Set Thermostat Configuration
Configuration options are intended to be selected at installation and
normally should not be modified by the home owner. These options are
not discussed in the Homeowner's Guide and therefore must be made as
part of the installation. A special procedure allows entry in to the
configuration mode. The thermostat will automatically exit this if no button
is pressed for 90seconds.
An explanation for each of these and how to enter the configuration mode
follows.
To enter the configuration mode:
Turn off the thermostat hold the fan button down for approximately 15
seconds. After 15 the second periof, Option"01" will appear in the display.
OPTION 01–LOW TEMPERATURE PROTECTION (FROST PROTECTION)
In the low temperature protection mode, When the thermostat is off , and
the room temperature is lower than 5
and in heating mode; When the room temperature is higher than 7
be turned off automatically.
TO ADJUST:
Enter configuration mode (if not already there).
Use "5" and "6" buttons to display Option 01.The SET icon should be off.
Press "M" button once. The SET icon will be come on. The display now
shows Option 01 setting.
Shows room temperature,
Use "5" and "6" buttons to move between the available Option 01
desired temperature, and
other feature information
choices of 00(disable) or 01(enable). Factory default is 00.
as required.
Press "M" button again to return to Option 01. The SET icon will now be
off.
Fan indicator
Use "5" and "6" buttons to select another Option, or press"
to exit configuration mode.
OPTION 02 –FAHRENHEIT/CELSIUS SELECTION
This option selects Fahrenheit or Celsius operation.
TO ADJUST:
Enter configuration mode (if not already there).
Use "5" and "6" buttons to display Option 02.The SET icon should be off.
Press "M"button once. The SET icon will be come on. The display now
shows Option 02 setting.
Use "5" and "6" buttons to move between the available Option 02
choices of F (Fahrenheit) or C (Celsius). Factory default is C.
Press "M" button again to return to Option 02. The SET icon will now be
off.
Use "5" and "6" buttons to select another Option, or press "
exit configuration mode.
OPTION 03 － － － －
This option allows calibration (or deliberate miscalibration) of room
temperature sensor. There are various reasons why the home owners
want to adjust the displayed temperature. The selected number is the
number of degrees, plus or minus, which will be added to the actual
temperature. The number can range between -5 and +5. Factory default is
0. This adjusted value will be used as actual temperature for both display
, or ),
and control action. For example, if 2 is selected, 72F actual will read 74F.
If setpoint is 72, the room will control to an actual value of 70 which will be
displayed and acted upon as if it were 72. The effect is that a positive
number selection will make the room temperature lower and vice versa.
This thermostat is factory calibrated within an accuracy of plus or minus
1F, so this adjustment will provide the best accuracy when set to 0.
TO ADJUST:
Enter configuration mode(if not already there).
Use "5" and "6" buttons to display Option 03.The SET icon should be off.
Press "M" button once. The SET icon will be come on. The display now
shows Option 03 setting.
Use "5" and "6" buttons to move between the available Option 01
choices of -5 through +5 in 1 step. Factory default is 0.
（ H i ） , （ M ed ） ,
Press "M "button again to return to Option 03. The SET icon will now be
", the fan-speed changed
off.
Use "5" and "6" buttons to select another Option, or press "
( 2 ) , Auto
℃ ℉
exit configuration mode.
OPTION 04 –AUTO RECOVERY
Auto recovery feature means the thermostat will retain the previous status
when power is back. This option can be used to choose whether auto
"
recovery feature is enabled.
TO ADJUST:
Enter configuration mode (if not already there).
Use "5" and "6" buttons to display Option 04.The SET icon should be off.
Press "M" button once. The SET icon will be come on. The display now
shows Option 04 setting.
℃ , it will be turned on automatically
R OOM TEMPERATURE OFFSET
Use "5" and "6" buttons to move between the available Option 04
choices of 00(disable) or 01(enable). Factory default is 01.
Press "M" button again to return to Option 04. The SET icon will now be
off.
Use "5" and "6" buttons to select another Option, or press "
exit configuration mode.
OPTION 06 –DA/DB TYPE SELECTION
This option selects DA type or DB type operation. DA means that when
temperature reaches the set point, valve will close, fan will keep running;
DB means that when temperature reaches the set point, Valve and fan
will close together.
TO ADJUST:
Enter configuration mode (if not already there).
Use "5" and "6" buttons to display Option 06.The SET icon should be
off.
Press "M" button once. The SET icon will be come on. The display now
shows Option 06 setting.
Use "5" and "6" buttons to move between the available Option 06
choices of 00 (disable) or 01(enable). Factory default is 01.
℃ , it will
Press "M" button again to return to Option 06. The SET icon will now be
off.
Use "5" and "6" buttons to select another Option, or press "
to exit configuration mode.
OPTION 07 –2-PIPE/4-PIPE SELECTION
This option selects 2-pipe or 4-pipe operation.
TO ADJUST:
Enter configuration mode (if not already there).
Use "5" and "6" buttons to display Option 07.The SET icon should be
off.
"button
Press "M" button once. The SET icon will be come on. The display now
shows Option 07 setting.
Use "5" and "6" buttons to move between the available Option 07
choices of 2 (2-pipe) or 4(4-pipe). Factory default is 2.
Press "M" button again to return to Option 07. The SET icon will now be
off.
Use "5" and "6" buttons to select another Option, or press "
to exit configuration mode.
Wire Diagram
TST-EGND06413SCS00:
TST-EGND06423SCS00:
" button to
L(R)
Val2
Val1
Low
Med
Hi
N(C)
Thermostat
L(R)
Val2
Val1
Low
Med
Hi
N(C)
THERMOSTAT
" button to
" button to
" button
" button
L(R)
Val
Low
Med
Hi
N(C)
Fan coil
2-pipe
L(R)
Heating Val
Cooling Val
Low
Med
Hi
N(C)
Fan coil
4-pipe
