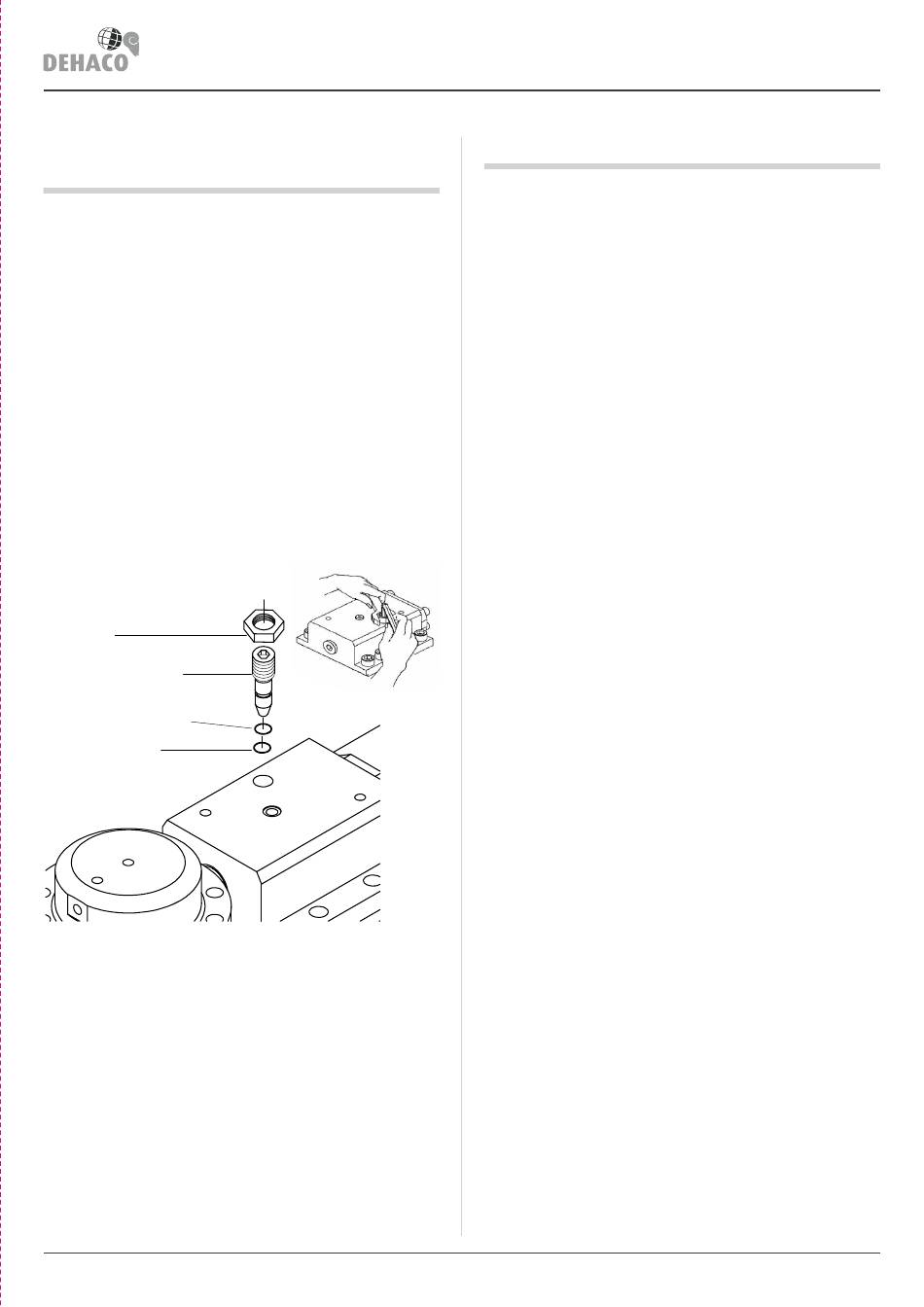

6.6 Regulating oil flow rates of valve
adjuster
Setting initial status of adjust bolts:
1) Loosen de adjust nut to enable the valve adjuster
to be turned.
2) Turn the adjust bolt clockwise, and tighten it
securely.
3) Turn the adjust bolt 2.5 turns counter clockwise.
4) After finishing the adjustment, tighten the adjust
nut securely.
Notes:
◊ The adjustment of this valve adjuster is needed
only when the oil flow and the operating pressure
are less than the required specification value.
Otherwise, do not adjust.
◊ The valve adjuster is set at the position of 2.5
turns counter clockwise turning when first
released to the customer from factory.
◊ Do not turn the valve adjuster more than 4 times
counter clockwise.
Nut
Adjust bolt
Back-up ring
O-Ring
© 2018 Dehaco B.V. • Operation and maintenance manual IBEX Hydraulic breakers G-type – Version 17-08-2018
6.7 Wear parts
1) When damaged or worn it is highly recommended
to replace the following items. These should
be inspected regularly and replaced as soon as
possible.
- Tool
- Tool bushing
- Tool pins
- Retainer pin, bushing pin
- Accumulator and steering valve bolts
- Hydraulic seals
- Through bolts
- Hydraulic hoses
- Grease nipples/pump
2) We recommend that the user stocks these wearing
parts to minimise downtime.
3) Replace hydraulic seals every 600 hours of actual
operation.
4) Tool pin
- When each tool pin is excessively deformed,
it is difficult to remove the tool. Therefore it is
advised to rotate the tool pin (IBEX 600 – IBEX
4000) every 100 to 150 hours of operation to
ensure an even wear. Only genuine tool pins
should be used.
- When replacing wearing parts check each
for wear, breakage and so on. This can cause
increased wear to other parts within the
breaker.
