2. Overview

2. OVERVIEW

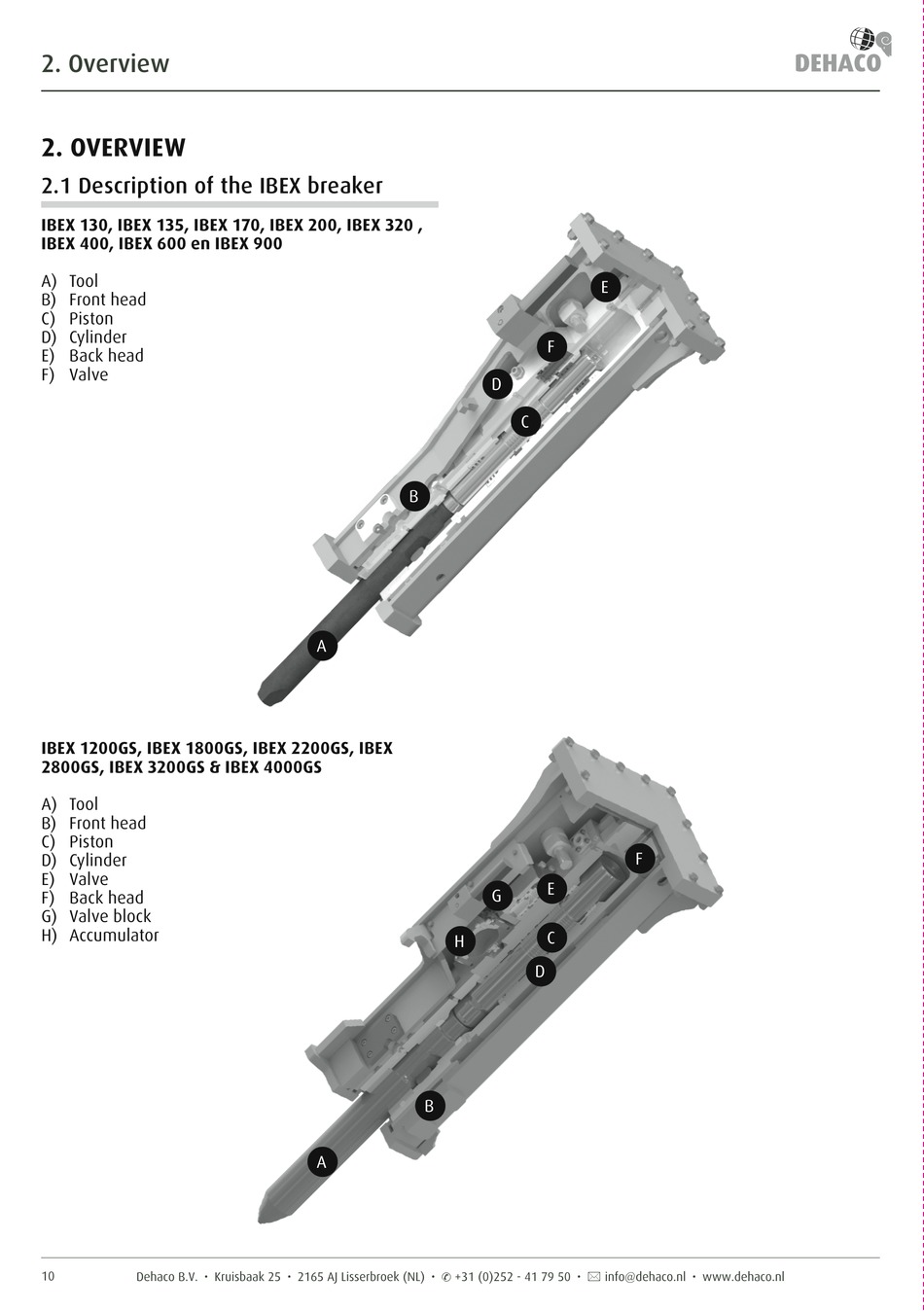

2.1 Description of the IBEX breaker
IBEX 130, IBEX 135, IBEX 170, IBEX 200, IBEX 320 ,
IBEX 400, IBEX 600 en IBEX 900
A) Tool
B) Front head
C) Piston
D) Cylinder
E) Back head
F) Valve
IBEX 1200GS, IBEX 1800GS, IBEX 2200GS, IBEX
2800GS, IBEX 3200GS & IBEX 4000GS
A) Tool
B) Front head
C) Piston
D) Cylinder
E) Valve
F) Back head
G) Valve block
H) Accumulator
10
Dehaco B.V. • Kruisbaak 25 • 2165 AJ Lisserbroek (NL) • ✆ +31 (0)252 - 41 79 50 •  info@dehaco.nl • www.dehaco.nl
B
A
H
B
A
E
F
D
C
F
E
G
C
D
