Instructions for Use
Heat lamps solid
Heat lamp rail design
Solid
brass
Art.-No.
B 0020
Model-No.
22001/MM
CNS
Art.-No.
B 0113
Model-No.
28060-2
Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D–56470 Bad Marienberg/Germany
Phone
+0049 (0) 2661 – 9868-10
Fax
+0049 (0) 2661 – 9868-38 (Service)
Internet
www.scholl-gastro.de
E-mail
info@scholl-gastro.de
BA
Last revised 12-2017
Solid
Chromium
cooper
plated
B 0021
B 0022
22001/MK
22001/C
CNS
CNS
B 0114
B 0115
28090-3
28120-4
Page 1 of 30
Black
B 0023
22001/SW
CNS
CNS
B 0116
B 0117
28150-5
28180-6
Dezember 22, 2017
Rev. 2
Advertisement
Table of Contents
Related Manuals for Scholl 22001/MM
Summary of Contents for Scholl 22001/MM
-
Page 1: Instructions For Use
B 0115 B 0116 B 0117 Model-No. 28060-2 28090-3 28120-4 28150-5 28180-6 Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D–56470 Bad Marienberg/Germany Phone +0049 (0) 2661 – 9868-10 +0049 (0) 2661 – 9868-38 (Service) Internet www.scholl-gastro.de E-mail info@scholl-gastro.de... -
Page 2: Table Of Contents
GBA B 0020 2 E ABLE OF CONTENTS Table of contents ............................... 2 Preface ................................4 Conventions ............................... 5 Pictograms – General safety notes ....................5 Pictograms – Warning notes ......................7 Pictograms – Important notes ......................8 Product information ..........................9 Information regarding compliance with standards, laws and directives ......... - Page 3 GBA B 0020 2 E Technical data............................18 Execution ............................18 Dimensioned drawings ........................19 8.2.1 Dimensioned drawing heat lamp solid ..................19 8.2.2 Dimensioned drawing heat lamp rail design Art.-No. B 0114 ........... 20 Circuit diagrams ..........................21 8.3.1 Circuit diagram heat lamp solid ....................
-
Page 4: Preface
REFACE Congratulations! In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand- ards while providing outstanding convenience in practical use. This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve you well in an ecologically sound manner. -
Page 5: Conventions
GBA B 0020 2 E ONVENTIONS – G ICTOGRAMS ENERAL SAFETY NOTES Be sure to observe these Instructions for Use as well as the safety notes to prevent injuries or damage to health or property. Do not alter or modify this appliance. Never use a defective appliance. - Page 6 GBA B 0020 2 E Do not touch the surfaces of the appliance. The surfaces of this appliance may get hot. Please allow the unit to cool down fully before cleaning or stowing it. Never cover this appliance. Burn injury or fire hazard! Caution: Do look into the heat radiators/light source! Risk of eye damage!
-
Page 7: Pictograms - Warning Notes
GBA B 0020 2 E – W ICTOGRAMS ARNING NOTES Cleaning must only be performed by qualified persons who have read and under- stood these Instructions for Use and are familiar with applicable hygiene rules. En- sure that care is exercised during cleaning of the unit. For light cleaning, wipe down the surface with a cloth or soft brush/sponge soaked in warm water which contains a small amount of dishwashing detergent. -
Page 8: Pictograms - Important Notes
GBA B 0020 2 E – I ICTOGRAMS MPORTANT NOTES DANGER indicates an immediately threatening hazard. Failure to observe this warning notice will result in severe physical injury or death. WARNING indicates a potentially dangerous situation. Failure to observe this warning notice may result in severe physical injury or death. -
Page 9: Product Information
GBA B 0020 2 E RODUCT INFORMATION The heat lamp may only be used to keep dishes short-term warm. The warm keeping temperature depends on the distance between heat lamp and dishes. NFORMATION REGARDING COMPLIANCE WITH STANDARDS LAWS AND DIRECTIVES This appliance conforms to the following: Standards, laws, directives 2014/35/EU... -
Page 10: Packing, Transport, Intermediate Storage, Scope Of Delivery
GBA B 0020 2 E ACKING TRANSPORT INTERMEDIATE STORAGE SCOPE OF DELIVERY ACKING The type of packing employed will depend, to a large extent, on the adopted shipping mode and route. Except where otherwise agreed by contract, packing will conform to the "HPE Packing Guideline" defined by the German Federal Association of the Wooden Materials, Pallets and Export Packing Industry and by the German Engineering Federation. -
Page 11: Installation And Electrical Installation
GBA B 0020 2 E NSTALLATION AND ELECTRICAL INSTALLATION NSTALLATION Before the installation of the appliance, observe the following: Inspect the unit for any defect or damage sustained in transit. Check all screw connections for tightness. Familiarize yourself with the Instructions for Use and with the conditions for the safe operation of this appliance. -
Page 12: Electrical Installation
GBA B 0020 2 E LECTRICAL INSTALLATION The appliance may only be installed by a qualified electrician whilst taking into account the applicable regulations! Connect this appliance to suitably earthed mains outlets only. Ensure that your mains power supply conforms to the data stated on the nameplate of the appliance. Failure to observe this warning may result in a fire hazard or electrical shock! Before putting the appliance into service, observe the following: ... -
Page 13: Operation
GBA B 0020 2 E PERATION The heat lamp has a main switch placed in the lamp shade. The heat lamp must be switched on/off by the main switch. NTENDED USE Practice: Switch on the heat lamp with the main switch. ... -
Page 14: Maintenance
GBA B 0020 2 E AINTENANCE AINTENANCE AND REPAIR Maintenance and repairs on the appliance must only be carried out by an author- ized professional observing applicable safety regulations. Improperly executed work will put your safety at risk! Before any cleaning, maintenance or repair work is carried out, the appliance must be disconnected from the mains and de-energized. - Page 15 GBA B 0020 2 E Cleaning must only be performed by qualified persons who have read and under- stood these Instructions for Use and are familiar with applicable hygiene rules. En- sure that care is exercised during cleaning of the unit. For light cleaning, wipe down the surface with a cloth or soft brush/sponge soaked in warm water containing a small amount of dishwashing detergent.
-
Page 16: Troubleshooting
GBA B 0020 2 E ROUBLESHOOTING Repairs must be carried out by an authorized specialist in compliance with applica- ble safety codes and regulations. Improperly executed work will put your safety at risk! Note that some work must only be carried out by an electrical specialist. According to DIN EN 60204-1: 2011-01, specialists are „persons who by reason of their relevant training and experience are capable of recognizing risks and avoiding potential hazards."... -
Page 17: Possible Malfunctions
GBA B 0020 2 E OSSIBLE MALFUNCTIONS Malfunction Cause Remedy Heat lamp does not heat Defective plug/electrical cord DANGER! Hazardous electrical voltage. Pull out the mains plug and bar product from further use. To be remedied by an electrical specialist. Heat lamp does not heat Infrared radiator faulty Exchange infrared radiator. -
Page 18: Technical Data

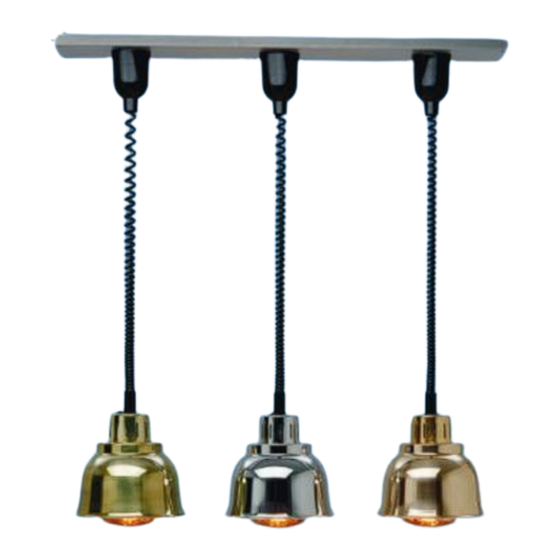

GBA B 0020 2 E ECHNICAL DATA XECUTION Heat lamp solid with: lamp shade 225 mm diameter made of solid brass B 0020 solid copper B 0021 chromium plated B 0022 black B 0023 casing with on-off switch ... -
Page 19: Dimensioned Drawings
Dimensioned drawings are available upon request. The information in the dimensioned drawings always take precedence over the summary of the technical data in chapter 8.1. 8.2.1 D IMENSIONED DRAWING HEAT LAMP SOLID Model-No. Art. No. 22001/MM B 0020 22001/MK B 0021 22001/C B 0022 22001/SW... -
Page 20: Dimensioned Drawing Heat Lamp Rail Design Art.-No. B 0114
GBA B 0020 2 E 8.2.2 D . B 0114 IMENSIONED DRAWING HEAT LAMP RAIL DESIGN Model-No. Art. No. 28090-3 B 0114 Page 20 of 30 Dezember 22, 2017 Last revised 12-2017 Rev. 2... -
Page 21: Circuit Diagrams
GBA B 0020 2 E IRCUIT DIAGRAMS Circuit diagrams are available upon request. 8.3.1 C IRCUIT DIAGRAM HEAT LAMP SOLID Model-No. Art. No. 22001/MM B 0020 22001/MK B 0021 22001/C B 0022 22001/SW B 0023 Key: Main switch Infrared radiator white light... -
Page 22: Circuit Diagram Heat Lamp Rail Design Art.-No. B 0113
GBA B 0020 2 E 8.3.2 C . B 0113 IRCUIT DIAGRAM HEAT LAMP RAIL DESIGN Key: S1-S2 Main switch R1-S2 Infrared radiator white light Page 22 of 30 Dezember 22, 2017 Last revised 12-2017 Rev. 2... -
Page 23: Circuit Diagram Heat Lamp Rail Design Art.-No. B 0114
GBA B 0020 2 E 8.3.3 C . B 0114 IRCUIT DIAGRAM HEAT LAMP RAIL DESIGN Key: S1-S3 Main switch R1-R3 Infrared radiator white light Page 23 of 30 Dezember 22, 2017 Last revised 12-2017 Rev. 2... -
Page 24: Circuit Diagram Heat Lamp Rail Design Art.-No. B 0115
GBA B 0020 2 E 8.3.4 C . B 0115 IRCUIT DIAGRAM HEAT LAMP RAIL DESIGN Key: S1-S4 Main switch R1-R4 Infrared radiator white light Page 24 of 30 Dezember 22, 2017 Last revised 12-2017 Rev. 2... -
Page 25: Circuit Diagram Heat Lamp Rail Design Art.-No. B 0116
GBA B 0020 2 E 8.3.5 C . B 0116 IRCUIT DIAGRAM HEAT LAMP RAIL DESIGN Key: S1-S5 Main switch R1-R5 Infrared radiator white light Page 25 of 30 Dezember 22, 2017 Last revised 12-2017 Rev. 2... -
Page 26: Circuit Diagram Heat Lamp Rail Design Art.-No. B 0117
GBA B 0020 2 E 8.3.6 C . B 0117 IRCUIT DIAGRAM HEAT LAMP RAIL DESIGN Key: S1-S6 Main switch R1-R6 Infrared radiator white light Page 26 of 30 Dezember 22, 2017 Last revised 12-2017 Rev. 2... -
Page 27: Spare Parts List
GBA B 0020 2 E PARE PARTS LIST Maintenance and repairs on the appliance must only be carried out by an author- ized professional observing applicable safety regulations. Improperly executed work will put your safety at risk! Work at the electrical installation must only be performed by qualified electricians! Component Art. -
Page 28: Disposal And Environmental Notes
GBA B 0020 2 E ISPOSAL AND NVIRONMENTAL OTES The appliance has been packed before shipping to protect it against damage in transit. After unpacking, please dispose of packing materials in an environmentally sound manner. All packing materials are eco-compatible, 100% recyclable and marked with a sym- bol to that effect. -
Page 29: Warranty And Service
GBA B 0020 2 E ARRANTY AND SERVICE 10.1 W ARRANTY CONDITIONS The manufacturer accepts no liability or warranty in the following cases: failure to observe notes and instructions given in the Instructions for Use; use of the product in a manner not conforming to its intended use; ... -
Page 30: Service Address
7:00 a.m. till 4:00 p.m. Fridays from 7:00 a.m. till 12:15 p.m. Outside these office hours please communicate your requests per e-mail or telefax. Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D-56470 Bad Marienberg/Germany Phone 0049 (0)2661/9868-10...
