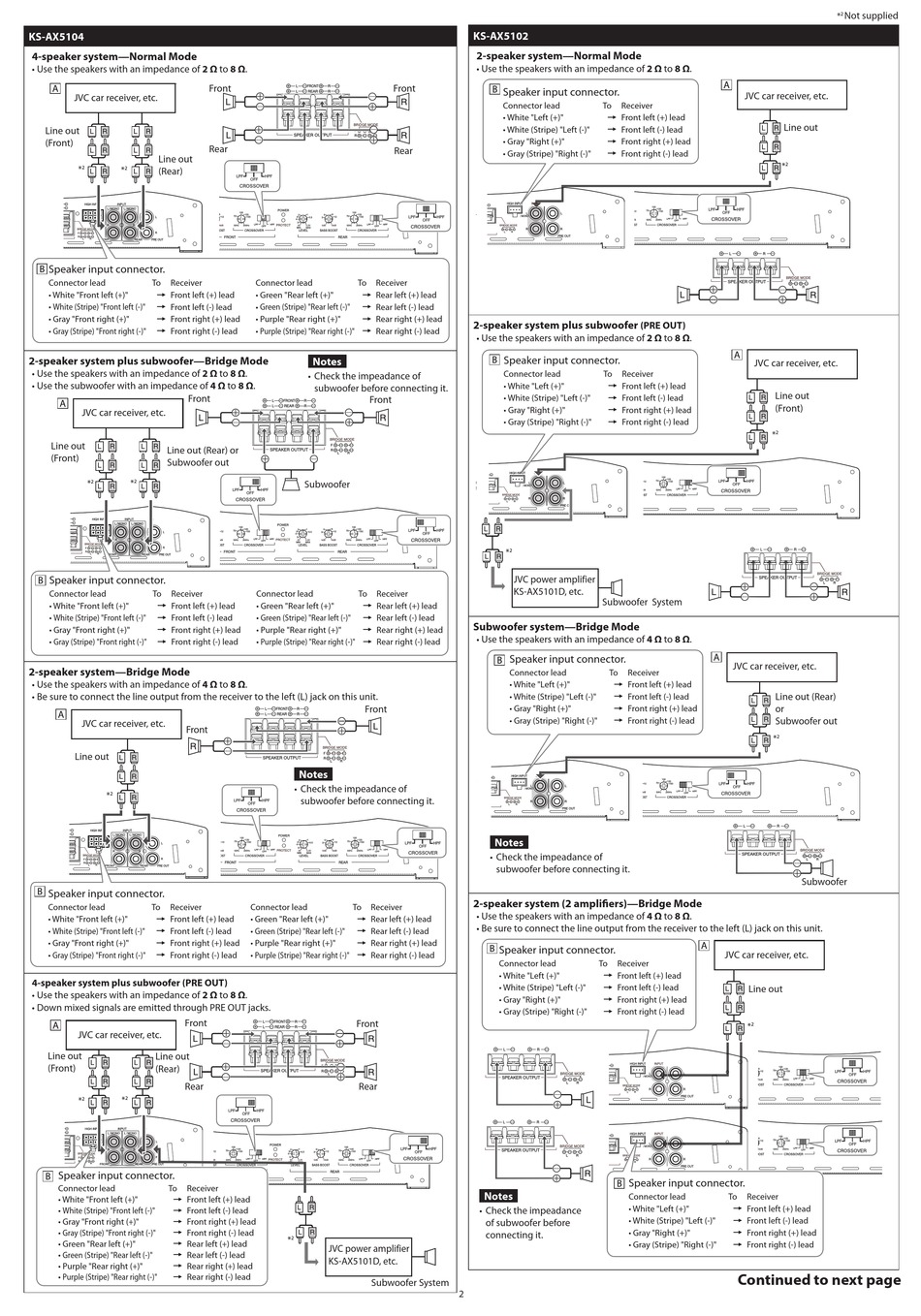

JVC KS-AX5104 Instructions page 2

KS-AX5104
4-speaker system—Normal Mode
• Use the speakers with an impedance of 2 Ω to 8 Ω.
JVC car receiver, etc.
Line out
(Front)
Line out
* 2 *
2 (Rear)
R R
Speaker input connector.
Connector lead To Receiver
= Front left (+) lead
• White "Front left (+)"
= Front left (-) lead
• White (Stripe) "Front left (-)"
= Front right (+) lead
• Gray "Front right (+)"
= Front right (-) lead
• Gray (Stripe) "Front right (-)"
2-speaker system plus subwoofer—Bridge Mode
• Use the speakers with an impedance of 2 Ω to 8 Ω.
• Use the subwoofer with an impedance of 4 Ω to 8 Ω.
Front
JVC car receiver, etc.
Line out
Line out (Rear) or
(Front)
Subwoofer out
*
* 2 2
R R
Speaker input connector.
Connector lead To Receiver
= Front left (+) lead
• White "Front left (+)"
= Front left (-) lead
• White (Stripe) "Front left (-)"
= Front right (+) lead
• Gray "Front right (+)"
= Front right (-) lead
• Gray (Stripe) "Front right (-)"
2-speaker system—Bridge Mode
• Use the speakers with an impedance of 4 Ω to 8 Ω.
• Be sure to connect the line output from the receiver to the left (L) jack on this unit.
JVC car receiver, etc.
Front
Line out
* 2
Speaker input connector.
Connector lead To Receiver
= Front left (+) lead
• White "Front left (+)"
= Front left (-) lead
• White (Stripe) "Front left (-)"
= Front right (+) lead
• Gray "Front right (+)"
= Front right (-) lead
• Gray (Stripe) "Front right (-)"
4-speaker system plus subwoofer (PRE OUT)
• Use the speakers with an impedance of 2 Ω to 8 Ω.
• Down mixed signals are emitted through PRE OUT jacks.
Front
JVC car receiver, etc.
Line out
Line out
(Front)
(Rear)
Rear
*
* 2 2
R R
Speaker input connector.
Connector lead To Receiver
= Front left (+) lead
• White "Front left (+)"
= Front left (-) lead
• White (Stripe) "Front left (-)"
= Front right (+) lead
• Gray "Front right (+)"
= Front right (-) lead
• Gray (Stripe) "Front right (-)"
= Rear left (+) lead
• Green "Rear left (+)"
= Rear left (-) lead
• Green (Stripe) "Rear left (-)"
= Rear right (+) lead
• Purple "Rear right (+)"
= Rear right (-) lead
• Purple (Stripe) "Rear right (-)"
Front
Rear
Connector lead To Receiver
= Rear left (+) lead
• Green "Rear left (+)"
= Rear left (-) lead
• Green (Stripe) "Rear left (-)"
= Rear right (+) lead
• Purple "Rear right (+)"
• Purple (Stripe) "Rear right (-)" = Rear right (-) lead
Notes
• Check the impeadance of
subwoofer before connecting it.
Front
Subwoofer
Connector lead To Receiver
= Rear left (+) lead
• Green "Rear left (+)"
= Rear left (-) lead
• Green (Stripe) "Rear left (-)"
= Rear right (+) lead
• Purple "Rear right (+)"
• Purple (Stripe) "Rear right (-)" = Rear right (-) lead
Front
Notes
• Check the impeadance of
subwoofer before connecting it.
Connector lead To Receiver
= Rear left (+) lead
• Green "Rear left (+)"
= Rear left (-) lead
• Green (Stripe) "Rear left (-)"
= Rear right (+) lead
• Purple "Rear right (+)"
• Purple (Stripe) "Rear right (-)" = Rear right (-) lead
Front
Rear
* 2
JVC power amplifier
KS-AX5101D, etc.
Subwoofer System
KS-AX5102
2-speaker system—Normal Mode
• Use the speakers with an impedance of 2 Ω to 8 Ω.
Front
Speaker input connector.
Connector lead
• White "Left (+)"
• White (Stripe) "Left (-)"
• Gray "Right (+)"
Rear
• Gray (Stripe) "Right (-)"
2-speaker system plus subwoofer
• Use the speakers with an impedance of 2 Ω to 8 Ω.
Speaker input connector.
Connector lead
• White "Left (+)"
• White (Stripe) "Left (-)"
• Gray "Right (+)"
• Gray (Stripe) "Right (-)"
* 2
JVC power amplifier
KS-AX5101D, etc.
Subwoofer system—Bridge Mode
• Use the speakers with an impedance of 4 Ω to 8 Ω.
Speaker input connector.
Connector lead
• White "Left (+)"
• White (Stripe) "Left (-)"
• Gray "Right (+)"
• Gray (Stripe) "Right (-)"
Notes
• Check the impeadance of
subwoofer before connecting it.
2-speaker system (2 amplifiers)—Bridge Mode
• Use the speakers with an impedance of 4 Ω to 8 Ω.
• Be sure to connect the line output from the receiver to the left (L) jack on this unit.
Speaker input connector.
Connector lead
• White "Left (+)"
• White (Stripe) "Left (-)"
• Gray "Right (+)"
• Gray (Stripe) "Right (-)"
Notes
• Check the impeadance
of subwoofer before
connecting it.
2
JVC car receiver, etc.
To Receiver
= Front left (+) lead
= Front left (-) lead
= Front right (+) lead
= Front right (-) lead
(PRE OUT)
JVC car receiver, etc.
To Receiver
= Front left (+) lead
= Front left (-) lead
= Front right (+) lead
= Front right (-) lead
*
Subwoofer System
JVC car receiver, etc.
To Receiver
= Front left (+) lead
= Front left (-) lead
= Front right (+) lead
= Front right (-) lead
JVC car receiver, etc.
To Receiver
= Front left (+) lead
= Front left (-) lead
Line out
= Front right (+) lead
= Front right (-) lead
*
2
Speaker input connector.
Connector lead To Receiver
= Front left (+) lead
• White "Left (+)"
= Front left (-) lead
• White (Stripe) "Left (-)"
= Front right (+) lead
• Gray "Right (+)"
= Front right (-) lead
• Gray (Stripe) "Right (-)"
Continued to next page
Not supplied
* 2
Line out
*
2
Line out
(Front)
2
Line out (Rear)
or
Subwoofer out
*
2
Subwoofer
